Well, the year goes againt darker times here in Sweden. Luckily that means more time inside the garage, workshop and with the computer.

Last week I got Solidworks 2011, and startet tonight to practice. It's not much, but I'm satisfied with the result.

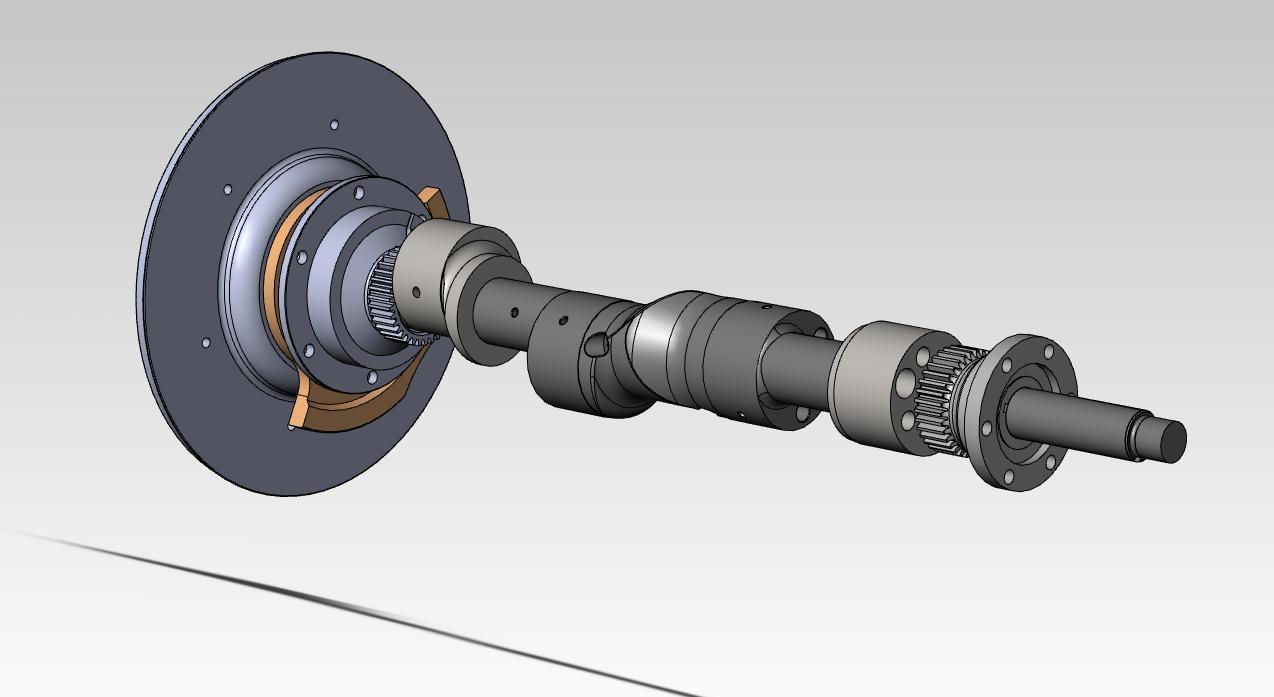

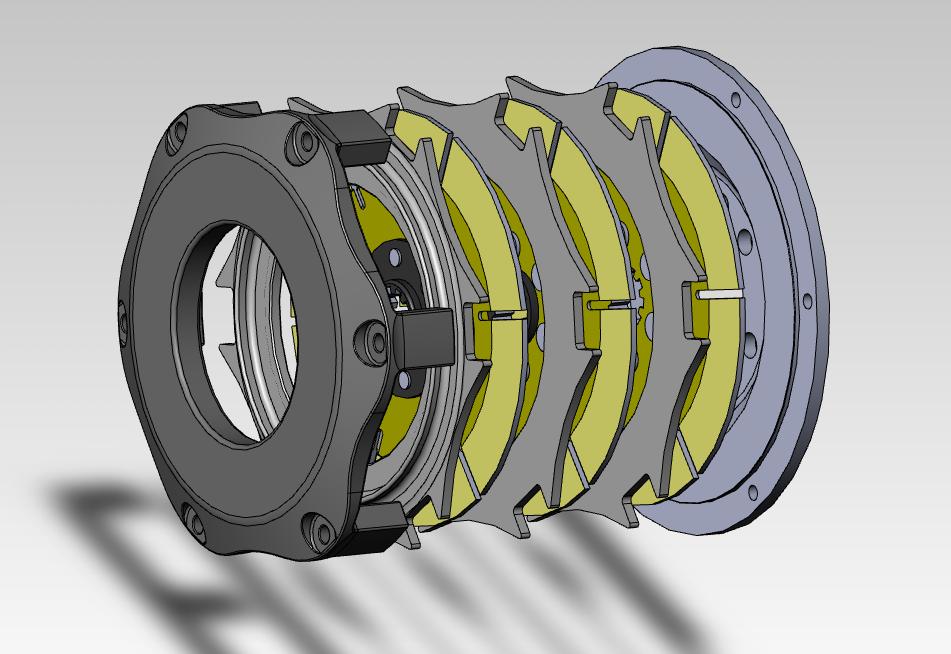

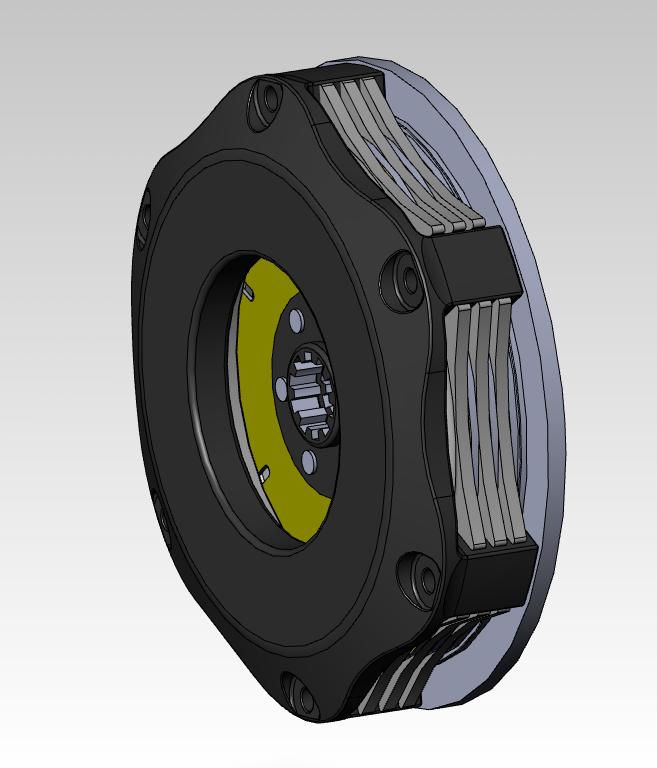

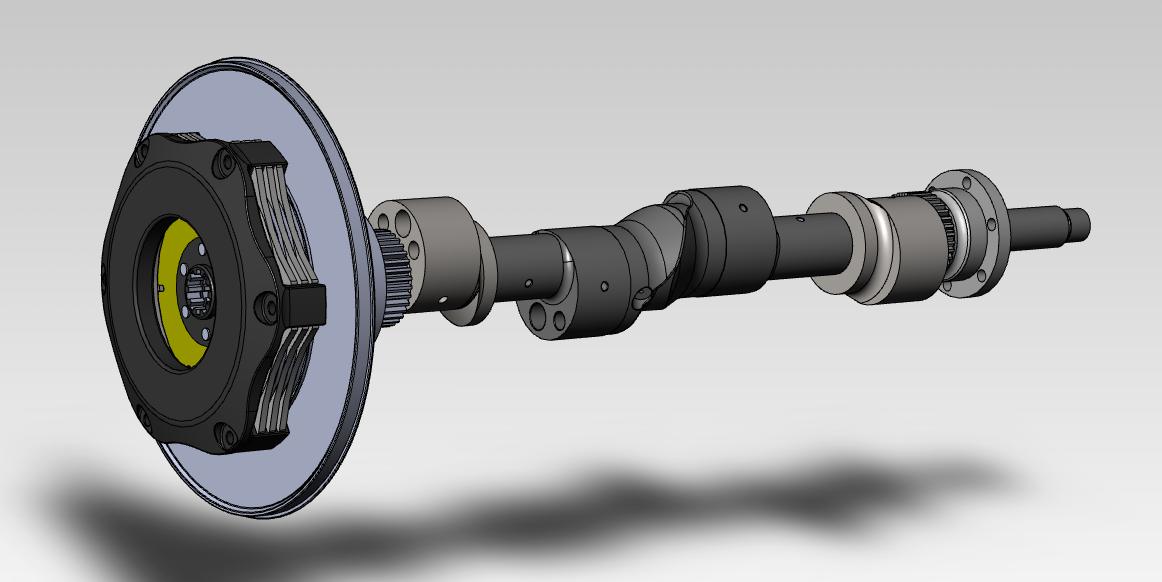

The CAD shows my 184mm Tilton clutch. Soon, there will be blo... cnc-****?

Regards Tegheim

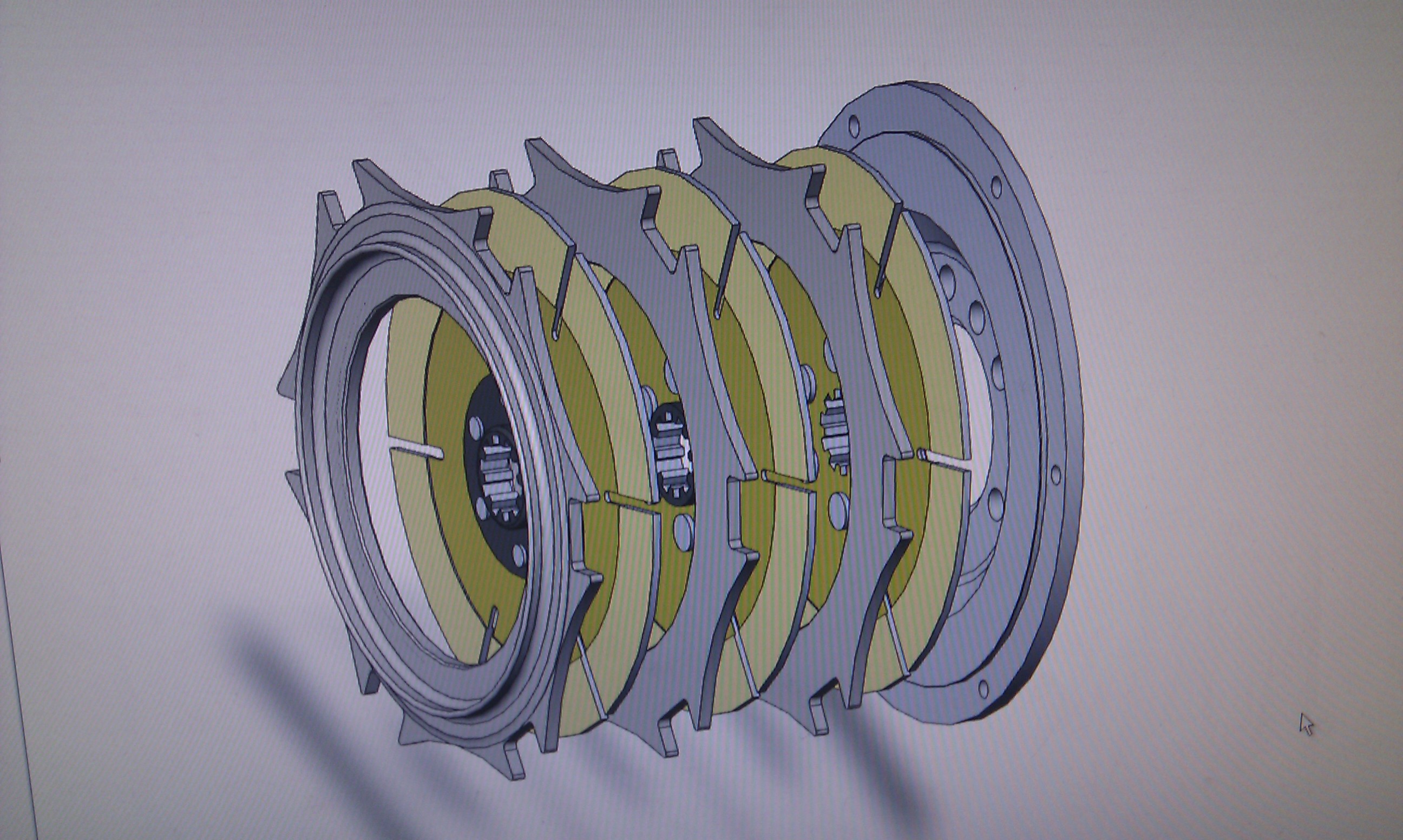

The assembly is done!



Nice! I just saw an episode of the show "How It's Made", and they showed high-performance race clutches being CNC'd and assembled, high quality craftsmanship goes into that!



Could you get that episode's name so I can download it? :P



Its getting there...



I didn't view this link (blocked at work), but I think this is it: www.youtube.com/watch?v=LJ-0gTqWMYA



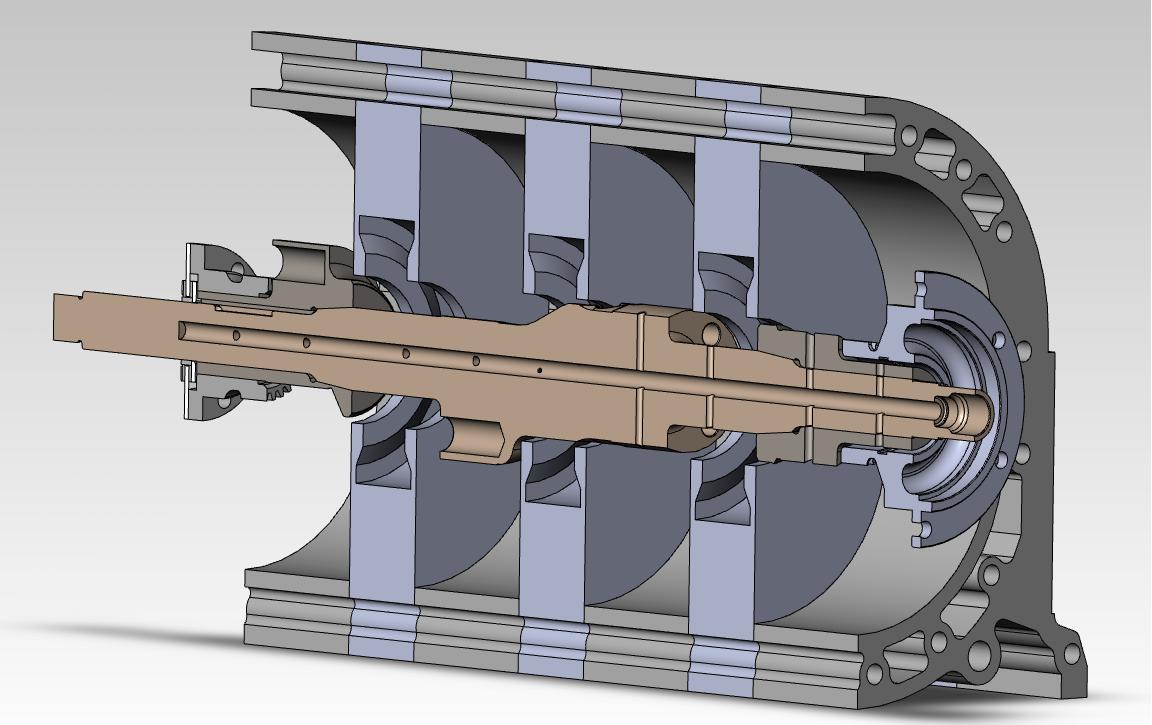

Another night in SolidWorks...



http://www.youtube.com/watch?v=y-K-bPovT2M



http://www.youtube.com/watch?v=RWUreTHxOE0

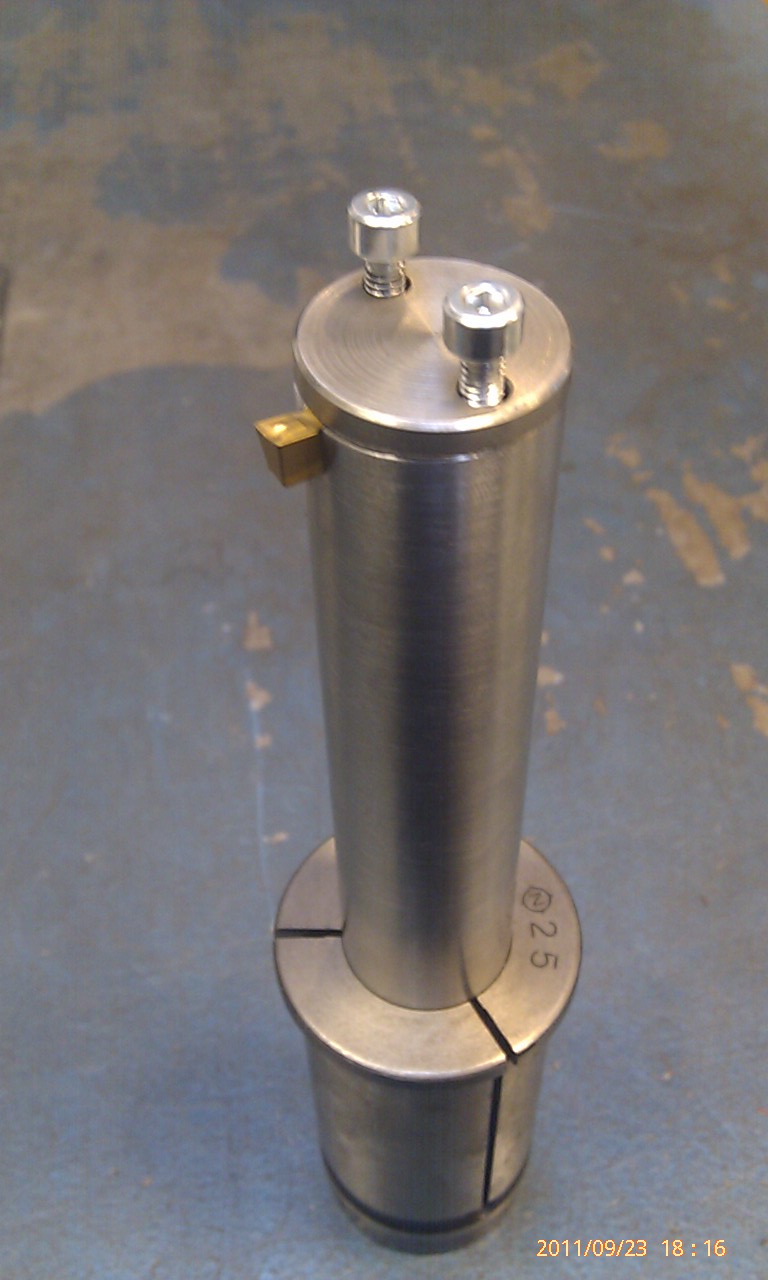

Have made my own tool for the little jack into the loosen shaft-parts. Don't know the english word for it.

3.40mm wide and 5.70mm deep. Then put an insert for a lathe there, tada!
