bruce

I tried to look at it today, Now it won't even start it just turns over. I think my car either needs a new mechanic(not me) or some serious help from some one that has more experience with these motors. For some reason my car doesn't like me. Can anyone else give me some ideas/things to check on my car?Thanks for the help and the suggestions.

banzaitoyota

u have a huge vacuum leak. I would guess at the primary injectors

bruce

how do I check for that, aren't the primary injectors under the uim or is that the secondarys. I could smell fuel, but I thought maybe that was because it was flooding. Mazda obviously hadn't heard about the acronym KISS(keep it simple stupid), when they designed this engine. That or I need a really large chalk board so that I can have my problems spelled out in front of me.

Baldy

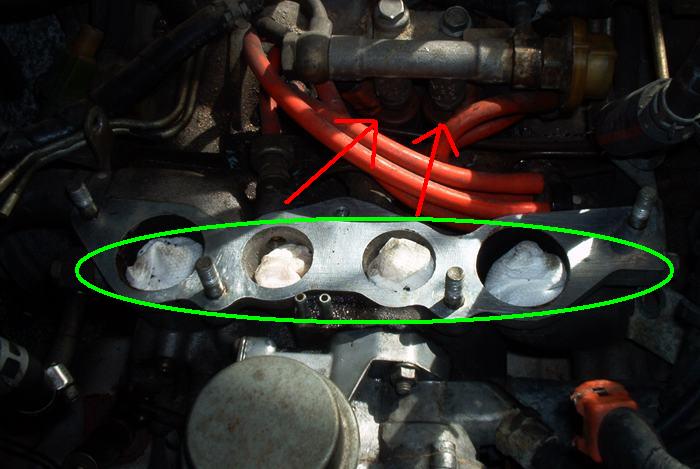

red arrows point to primary injectors, green circle is where the UIM connects to the LIM (just for a reference point)



check this thread for how to remove the UIM and access that area. There are several potention vacuum leak areas under the UIM (see all those hoses in the pic).
