How'd you like my smiley? That thing will sound good anyway you look at it.It's a 3 rotor! damn exhaust won't be long either.Tiny little cars with big motors are cool.



More pics soon.

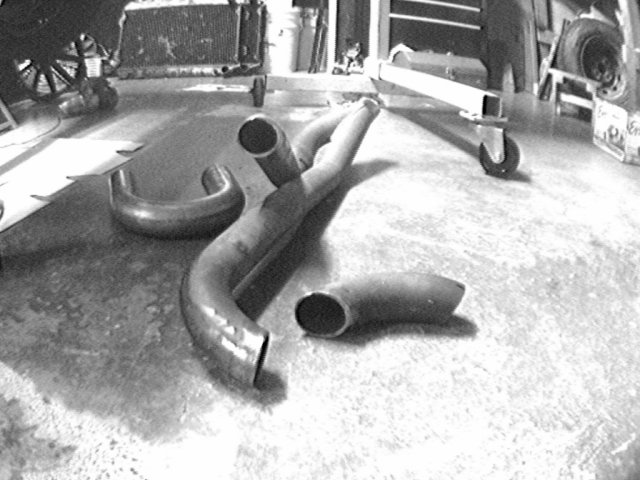

ahh yes, I remember making my own header.. It's a PITA but once you're done it's awsome cause you get to say "yeah, I made that" to people Spend your time and don't do it half ***, you will thank yourself later.



dont be afraid to make it loud, the 20b has kind of a mellow note to it, and it sounds great. mines too quiet



mike

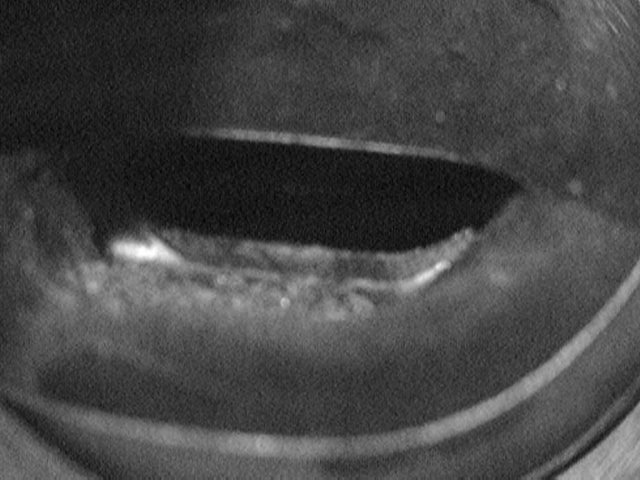

Here's the exhaust port. I was trying to see how deep I could put the camera inside the port.

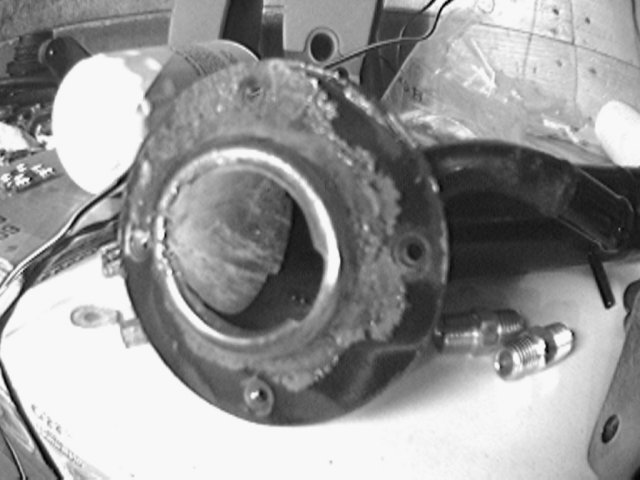

Here's the fuel filler tube from the Cosmo that I added some weld to to build it up because it was leaking in a low spot. It looked like somebody actually slammed a gas nozzle against it. This car came from Oregon, and you can't pump your own gas there. Or atleast you couldn't back in '91 when this car stopped being driven. So now all it needs is some finishing work with a dremel and it'll be ready for hard cornering.

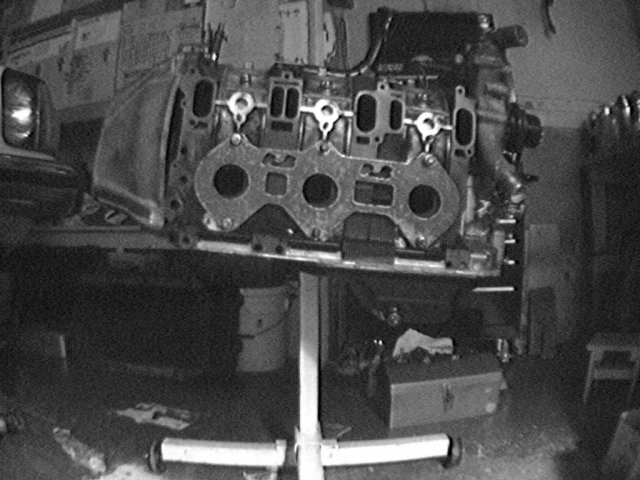

I tried several different lights and this one showed the RB 20B flange the best. All the others looked overexposed.

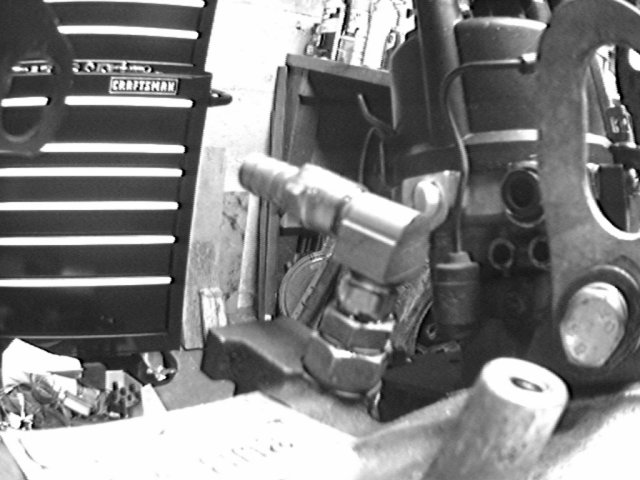

Here is the oil fitting. To the right, you can see the 8.8 bolt I used for the front lifting hook. I figured 8.8 would be stronger than grade 6. You can also see the FB dizzy with a points cap and the trailing casting chopped off. It's got a white nylon cap in the hole. The Leading casting is still there, and has a rubber cap in it.



This is the RB oil filter blockoff that I drilled out to flow better. I just set it there so I wouldn't need to repostion the camera.

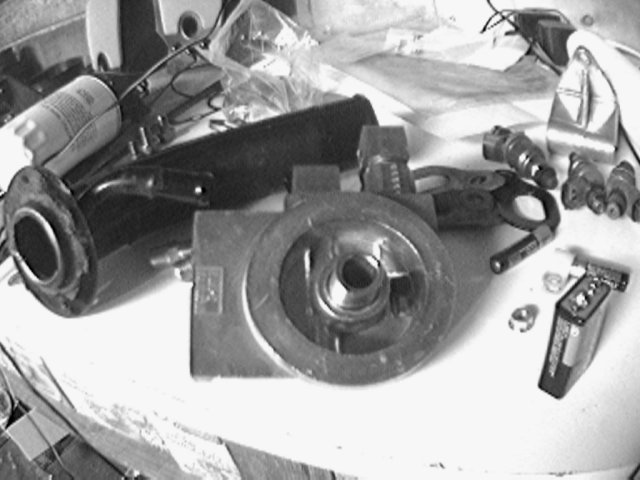

This is the remote oil filter mount. I'll be able to install it once the engine is in place.
