more engin shots


Old 04-23-2007, 04:36 PM
  #1
Senior Member
Thread Starter

iceblue's Avatar

Join Date: Aug 2005
Location: Freeport FL
Posts: 381
Default

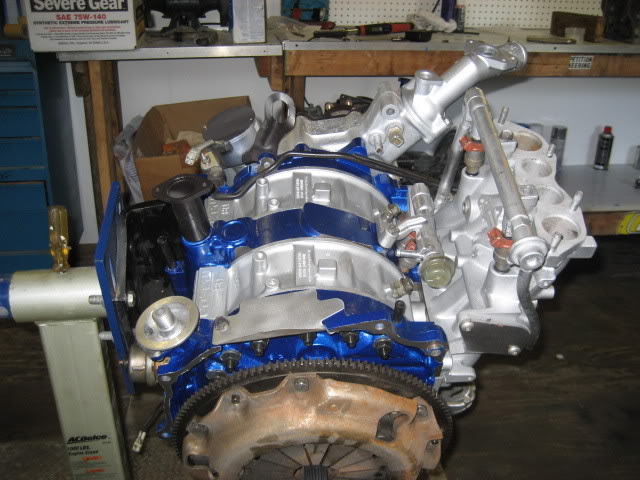

Name: finish004.jpg Views: 12 Size: 72.3 KB

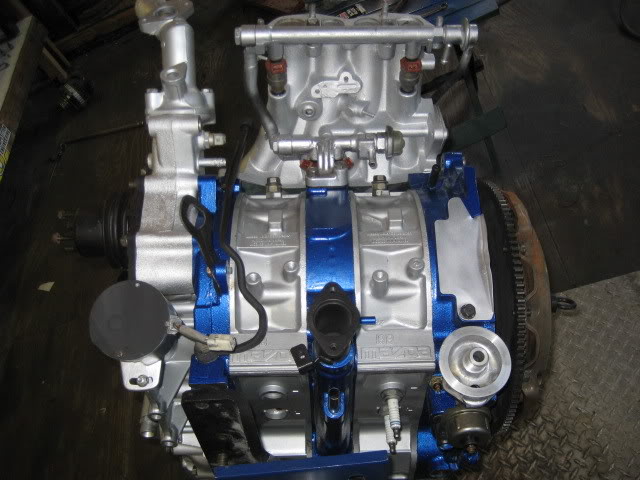

Name: finish003.jpg Views: 10 Size: 62.4 KB

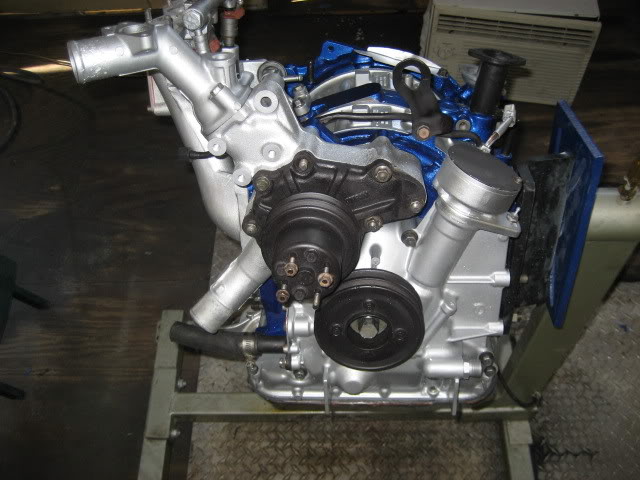

Name: finish002.jpg Views: 10 Size: 60.7 KB

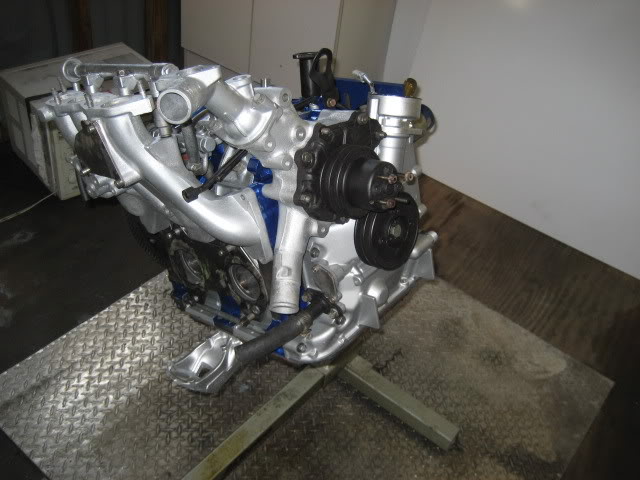

Name: finish001.jpg Views: 10 Size: 57.0 KB
iceblue is offline
Reply
Old 04-23-2007, 04:45 PM
  #2
Junior Member

Jakor's Avatar

Join Date: Oct 2005
Posts: 6
Default
Very pretty!



What intake manifold and primary fuel rail is that?



EDIT: I'm guessing turbo since I don't have much experience around T2's... =p
Jakor is offline
Reply
Old 04-23-2007, 11:52 PM
  #3
BDC
Senior Member

BDC's Avatar

Join Date: Jun 2003
Location: Grand Prairie, TX
Posts: 917
Default
Good looking. Hope you didn't powder-coat the rotor housings.



B
BDC is offline
Reply
Old 04-24-2007, 03:09 AM
  #4
Junior Member

69r1's Avatar

Join Date: Oct 2005
Posts: 5
Default
Originally Posted by BDC' post='869335' date='Apr 24 2007, 02:52 PM

Good looking. Hope you didn't powder-coat the rotor housings.



B


Why?????
69r1 is offline
Reply
Old 04-24-2007, 11:02 AM
  #5
Senior Member

j9fd3s's Avatar

Join Date: May 2002
Location: California
Posts: 22,465
Default
Originally Posted by Jakor' post='869283' date='Apr 23 2007, 02:45 PM

Very pretty!



What intake manifold and primary fuel rail is that?



EDIT: I'm guessing turbo since I don't have much experience around T2's... =p


those are just stock s4 intakes
j9fd3s is offline
Reply
Old 04-26-2007, 01:25 AM
  #6
BDC
Senior Member

BDC's Avatar

Join Date: Jun 2003
Location: Grand Prairie, TX
Posts: 917
Default
Originally Posted by 69r1' post='869345' date='Apr 24 2007, 12:09 AM

Why?????
Based on my unfortunate experience of having ruined two good pair of rotor housings, the bakinng process donne for the coating will warp them to unusable spec.



B
BDC is offline
Reply
Old 04-26-2007, 12:03 PM
  #7
Senior Member

Stock Josh's Avatar

Join Date: Oct 2003
Location: Reno, NV
Posts: 121
Default
Perhaps bake them while bolted together as an entire assembly? What temp are they baked at?
Stock Josh is offline
Reply
Old 04-26-2007, 01:21 PM
  #8
Senior Member
Thread Starter

iceblue's Avatar

Join Date: Aug 2005
Location: Freeport FL
Posts: 381
Default
250f
iceblue is offline
Reply
Old 04-27-2007, 11:13 AM
  #9
BDC
Senior Member

BDC's Avatar

Join Date: Jun 2003
Location: Grand Prairie, TX
Posts: 917
Default
Originally Posted by iceblue' post='869632' date='Apr 26 2007, 10:21 AM

250f


That's the exact same thing as overheating a motor. If that motor exhibits coolant-drinking symptoms from the get-go, then you'll know why Iceblue. The baking process done on ours a few years ago was 450*F for 30 minutes. Zap!



B
BDC is offline
Reply
Old 04-27-2007, 10:10 PM
  #10
Senior Member
Thread Starter

iceblue's Avatar

Join Date: Aug 2005
Location: Freeport FL
Posts: 381
Default
I think you missed something. I did not and do not powder coat them I painted them. They were only subdued to atmosphere temperatures.



A long personal friend has a powder coater I have not used it yet but he said he just puts little parts in the oven at 250F.



ahh **** whatever I'm drunk
