Did the steering mod took me about 15 mins of work and 6$ at ace worth of aluminum tubing that I used for a spacer, have enough extra to do like 20 cars.



I can make a u turn in the street now w/o touching the curbs and I only used 1/4" spacer due to the fact that there is not enough room to ajust the toe in to where I want it with any larger spacer.



seems I could have more steering angle if the tire wasn't hitting the sway bar. also to settle some other disputes there is over 2 inches till the tice hits the lower control arm. I could only get them to hit w/o the tie rod attached to the spindle.

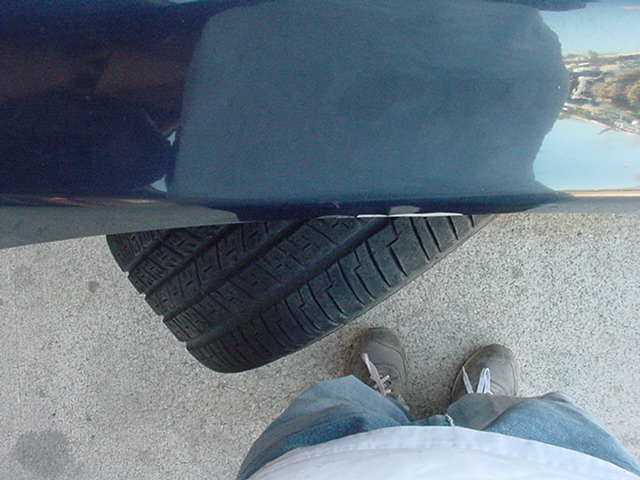

BEFORE:

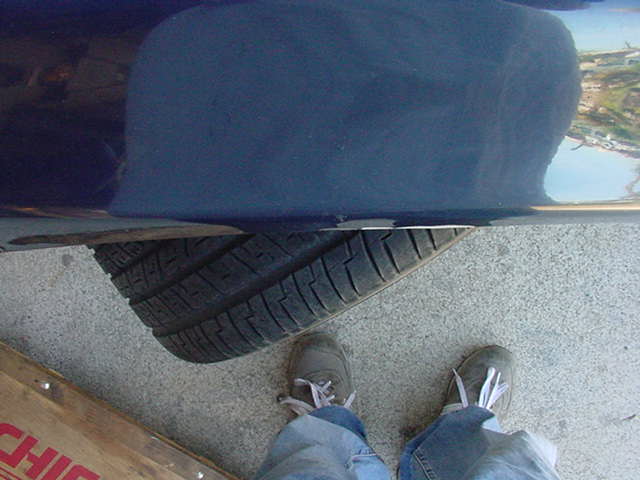

AFTER:



May not look like much buts thats all there is to gain. Looks are deciveing it feels a ton better!



Shim the steering tie rod down?





-Ted



Can you go into more detail on exactly what you did? Pics would be especially helpful.



Yes, please go into some more detail.

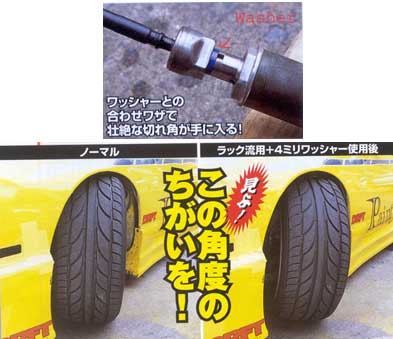

I did this:

curtasy of Ranzo



an now that i understand the pricipal of the device I will be making a tredded insert that threads into the steering rack and the tie ros will thread into it to maximise the steering of the FC. you WILL need a lesser offset wheel to clear the sway bar.



I can't read those words...



Can you do this to a FD?



I don't see why not, most steering racks are nearly the same.
