DYNO 6port turbo
#1
well i dynoed my NA-turbo today
mods
its a 6 port NA s4 block with about 200K miles on it now.
im using s4 t2 manifolds port matched to fit the block, and an s5 turbocharger. i have an rtek 1.7 with 720cc secondarys and a walbro 255 pump. 3" exhaust and TID mod, and a SAFC.

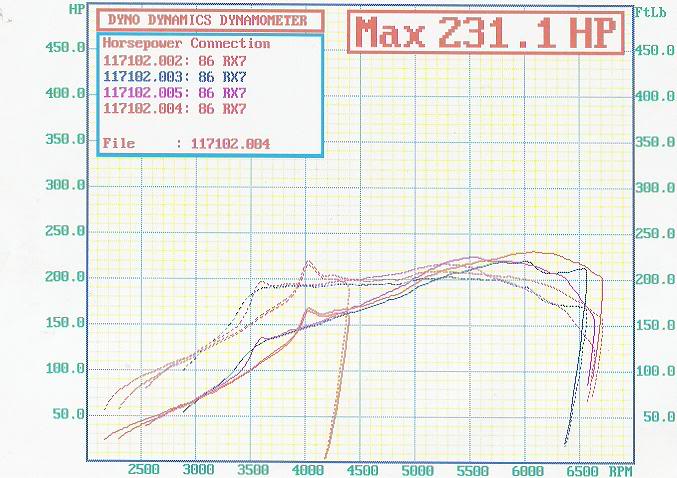

i managed 231 hp and 220 ft lbs today at 10 psi, alot better than i expected. and it didnt blow up either !!
http://img.photobucket.com/albums/v474/kom...rlogic/dyno.jpg
my AF were pretty good but getting real rich above 6K
mods
its a 6 port NA s4 block with about 200K miles on it now.
im using s4 t2 manifolds port matched to fit the block, and an s5 turbocharger. i have an rtek 1.7 with 720cc secondarys and a walbro 255 pump. 3" exhaust and TID mod, and a SAFC.
i managed 231 hp and 220 ft lbs today at 10 psi, alot better than i expected. and it didnt blow up either !!
http://img.photobucket.com/albums/v474/kom...rlogic/dyno.jpg
my AF were pretty good but getting real rich above 6K
#6
Originally Posted by KompressorLOgic' post='821256' date='May 26 2006, 03:52 PM
ohh yeah i was pulling exess fuel out and thats why my graphs were going higher each time. i found i adeed quite a large safty margin...
heh
Post the AFR sheet.
Those dyno dynamics read lower than most dynos I have been told also..
#9
Originally Posted by psyclo' post='828522' date='Jul 14 2006, 02:43 PM
Wheres that little blip coming from at 4k?
i belive the blip in teh graph at 4K is a boost spike from my home depot boost controllor! yeah i need to get the A/F sheet i hung the graph up in my friends garage ill have to take it and scan it
