Where to hook up A/F gauge?


Old 09-16-2002, 07:16 PM
  #1
Member
Thread Starter

DCmina's Avatar

Join Date: Jan 2002
Posts: 94
Default
Help I hooked it up to the wire 2nd from left (looking from back) in the middle plug, but it doesn't seem to be that one. Can you tell me where to plug it in?



Also, which part of the FSM shows what the ECU plugs are?



http://iluvmyrx7.com/1989_factory_service_manual.htm



thanks
DCmina is offline
Reply
Old 09-16-2002, 08:22 PM
  #2
Super Moderator

1988RedT2's Avatar

Join Date: Apr 2002
Location: VA
Posts: 2,532
Default
I just ran a wire from the O2 sensor through the firewall to the gauge. I wouldn't mess with the ECU if I didn't have to. Just follow the wire from the sensor to the connector plug and tap into it there.
1988RedT2 is offline
Reply
Old 09-16-2002, 09:10 PM
  #3
Member
Thread Starter

DCmina's Avatar

Join Date: Jan 2002
Posts: 94
Default
It's bad to do that cause the wire might be shielded.

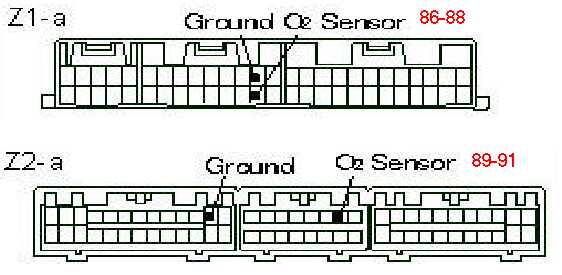

I went to Apex'i website and found it. Here it is:
Attached Thumbnails Where to hook up A/F gauge?-clipboard02.jpg
