Why you need the feed brand adapter - Mainly for the runners or else you get a vacuum leak (or boost leak, turbo boys).

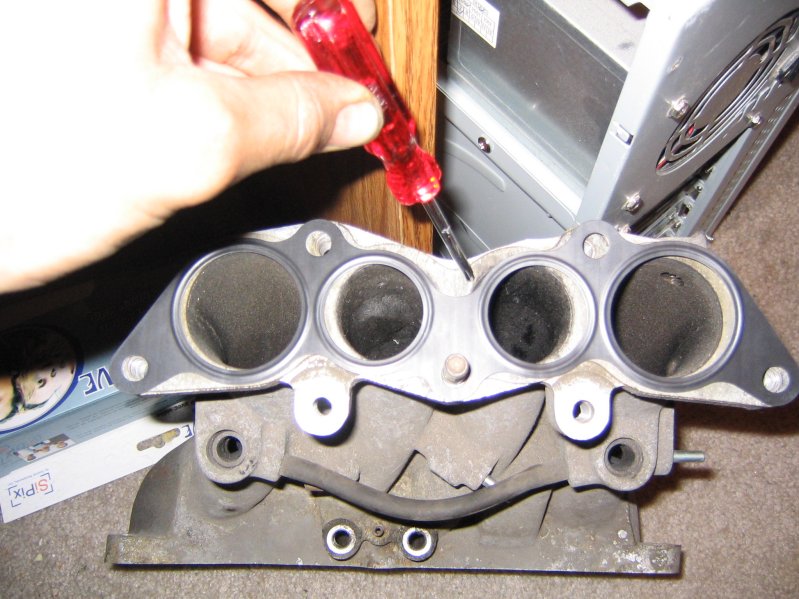

I was told the S5 LIMs bolt up? Anyways heres an s5! for comparison.



Get the adapter or get creative.
Attached Thumbnails Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg

Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg

Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs41.jpg

ColinRX7 is offline
Old 05-17-2004, 09:47 PM
  #2
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

More angle
ColinRX7 is offline
Old 05-17-2004, 09:48 PM
  #3
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

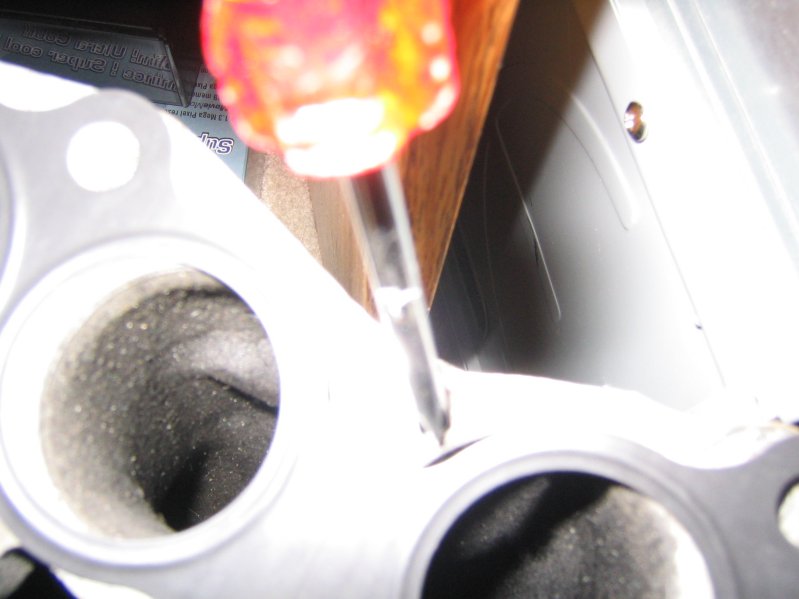

I know it's a little lopsided I did it that way on purpose because I wasn't sure how well you could see the leak in the digital pictures.



But anyways when it's perfectly straight the holes are still there, or if not there is VERY LITTLE material preventing blow through.
Attached Thumbnails Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg

Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg

Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-fdtojs43.jpg

ColinRX7 is offline
Old 05-17-2004, 10:10 PM
  #4
to infinity & beyond, me

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default

ahh, i see...
treceb is offline
Old 05-17-2004, 10:11 PM
  #5
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

Yeah that's an FD metal OEM gasket pictured. LOL forgot to mention.
ColinRX7 is offline
Old 05-17-2004, 11:32 PM
  #6
Senior Member

Join Date: Sep 2002
Location: Vanderhoof,BC(Canada)
Posts: 5,542
Default

Couldn't DR. Dremel make it work with some mild porting to the LIM.I take it you are going standalone colin?
Racer X is offline
Old 05-17-2004, 11:35 PM
  #7
Senior Member

Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Default

Camel showed me his porting of his lim and it looked ultra close to breaking through. I dunno what I am going to do... Making and adpater would be really easy. Paying hundreds for it is stupid.
1Revvin7 is offline
Old 05-17-2004, 11:42 PM
  #8
Senior Member

Join Date: Nov 2003
Location: Hell (Colorado School of Mines)
Posts: 517
Default

The bulk of the adapter could be drilled out of a piece of 1/2" or 3/4" aluminum plate on a drill press in less than an hour. Some cleaning and smoothing out with the dremel and tap it for the hardware and you're done. Not too hard at all. Hmm... I sense a profitable opportunity here.
CGeek2k is offline
Old 05-18-2004, 04:58 AM
  #9
Senior Member

Join Date: Jun 2003
Location: San Antonio TX/Okinawa Japan
Posts: 208
Default

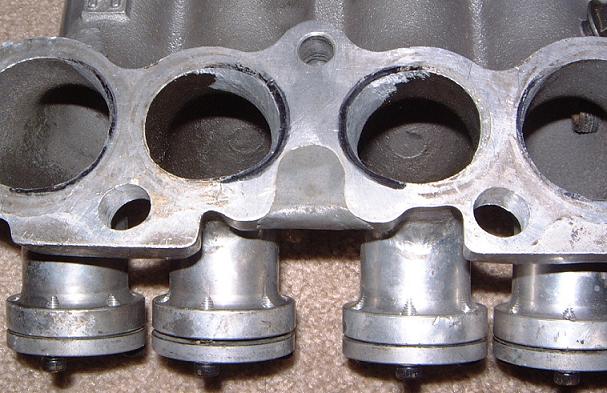

Here is a photo of my FD UIM. JB Welded the "gap" and am going to make a thick paper gasket. using a S5 LIM, seems to line up better.

chuck
Attached Thumbnails Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg

Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg

Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg   Usdm Fd Uim To Jdm S5 Tii Lim-5413.jpg

sleeper7 is offline
Old 05-18-2004, 07:14 AM
  #10
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

Myself I am not going with the Feed adapter. But alot of people thought it was to make it bolt up properly. It is, yes, but not in the way they were thinking. It's mainly to make the runners match up, not bolt holes.



My car won't have a stock ECU in the car..



I was thinking of JB welding a small portion of the gap between the upper intake manifold.



Mine was already mated to a TII LIM, and had alot of RTV to close any gap. I'll take a pic and you can see for yourself how thin the RTV is at that point (I scraped off the big gobs of it which I'm sure was preventing any leak, but when it comes down to it you see how much mating surface there was already).
ColinRX7 is offline
