The bong with the GREDDY cooler was a nice touch... I'll definitely be watching your progress on this. Good luck!

RX7 13B 4 UR AZZ

I noticed the bong (water pipe) after i posted the pictures.



Thanks for everyones support i hope i can bring some creative ideas along with this build to share with everyone.



Im going to patent the ECU/Boost controller w/ fan in glove box idea LOL

RX7 13B 4 UR AZZ

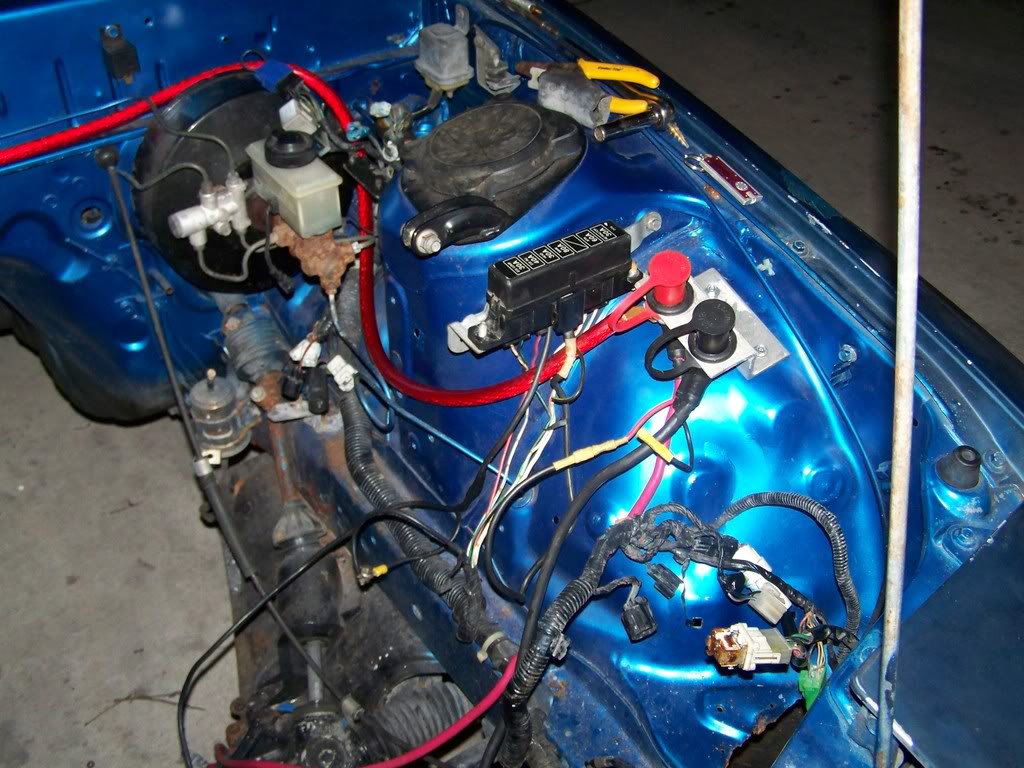

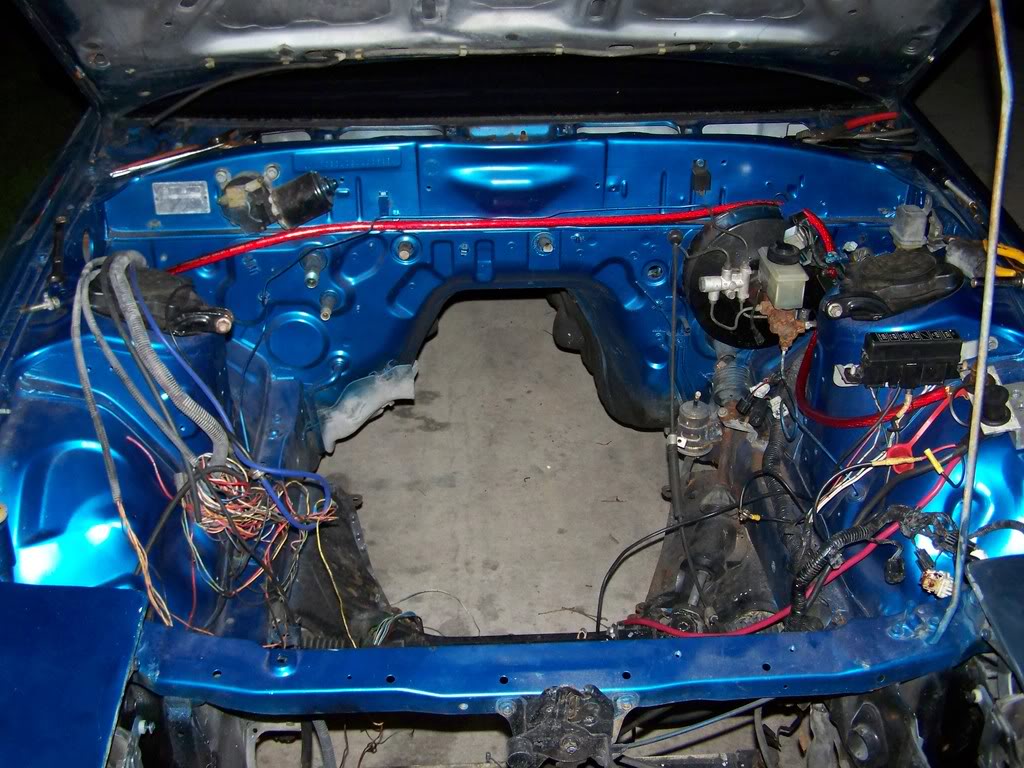

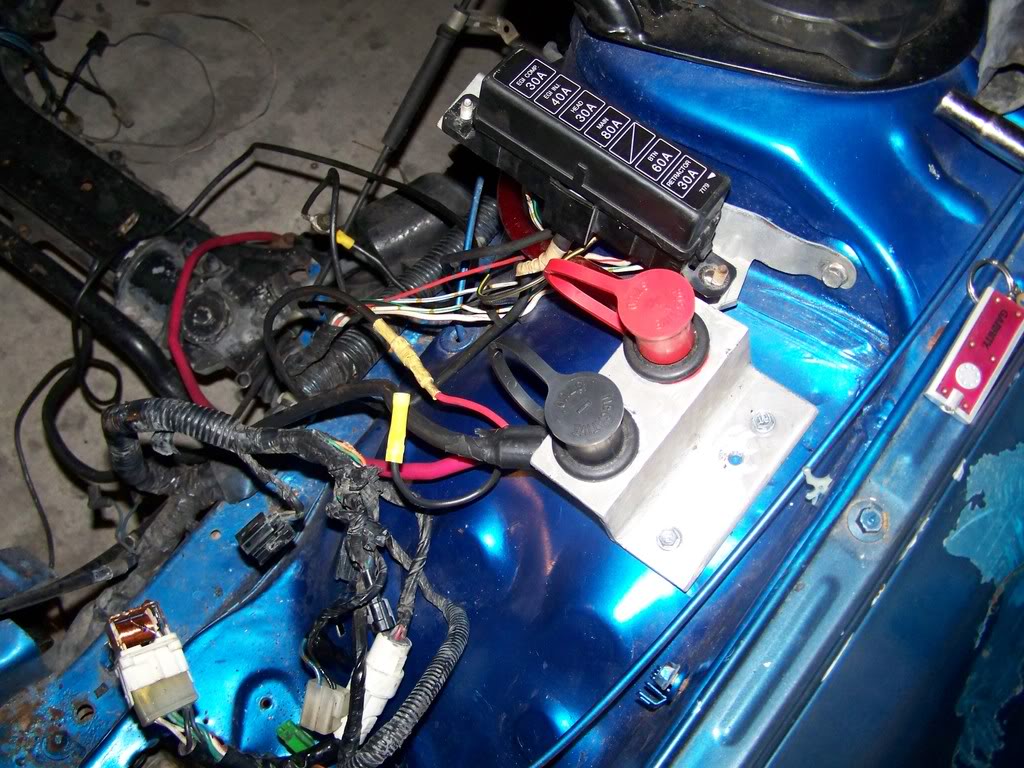

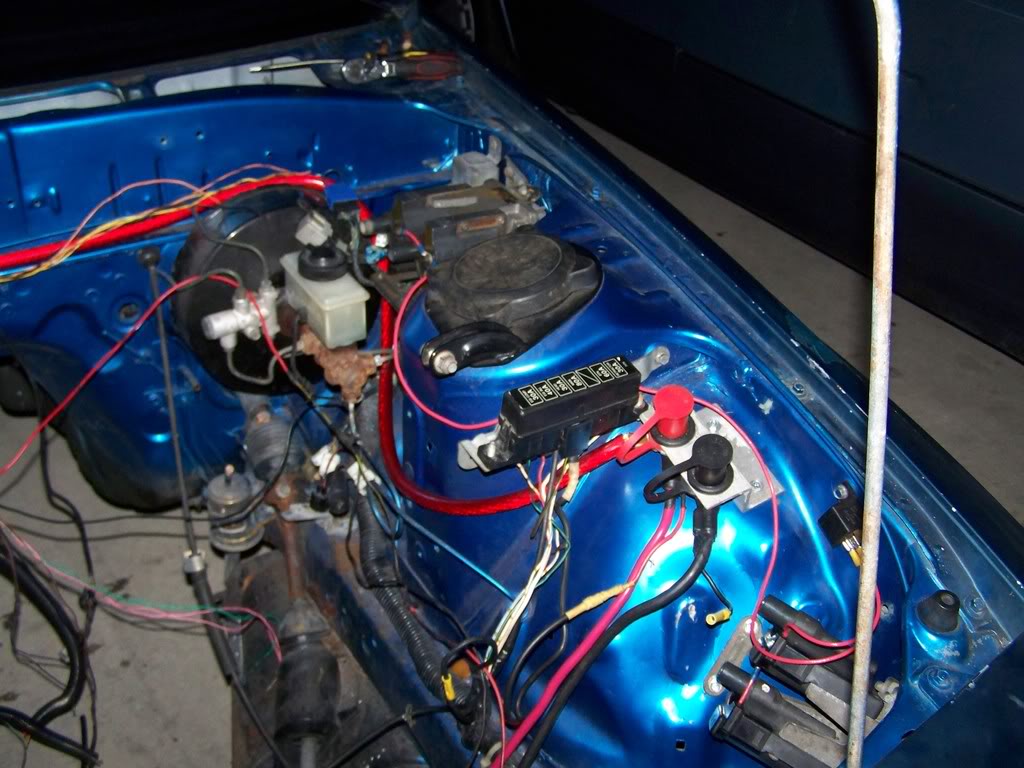

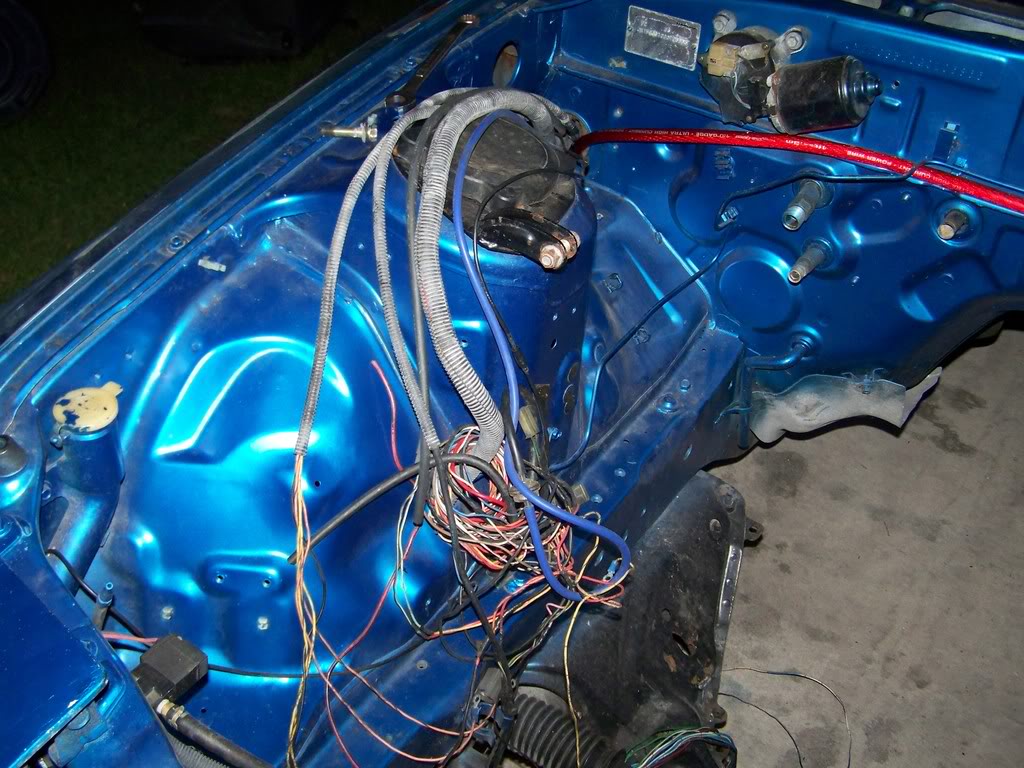

The wiring begins! ! ! Mounted remote battery posts ran primary wires which i think im going to change location since i dont like the red wire running along the back of the engine bay. And wired in the main fuse box.

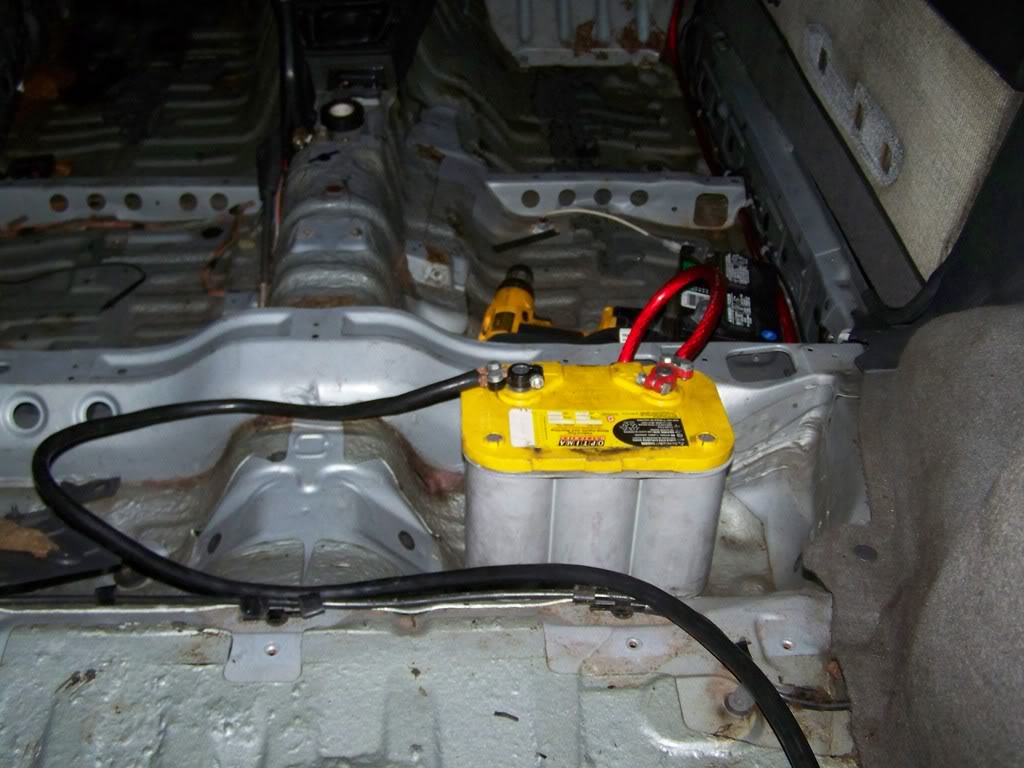

The Battery temporarily in its spot.

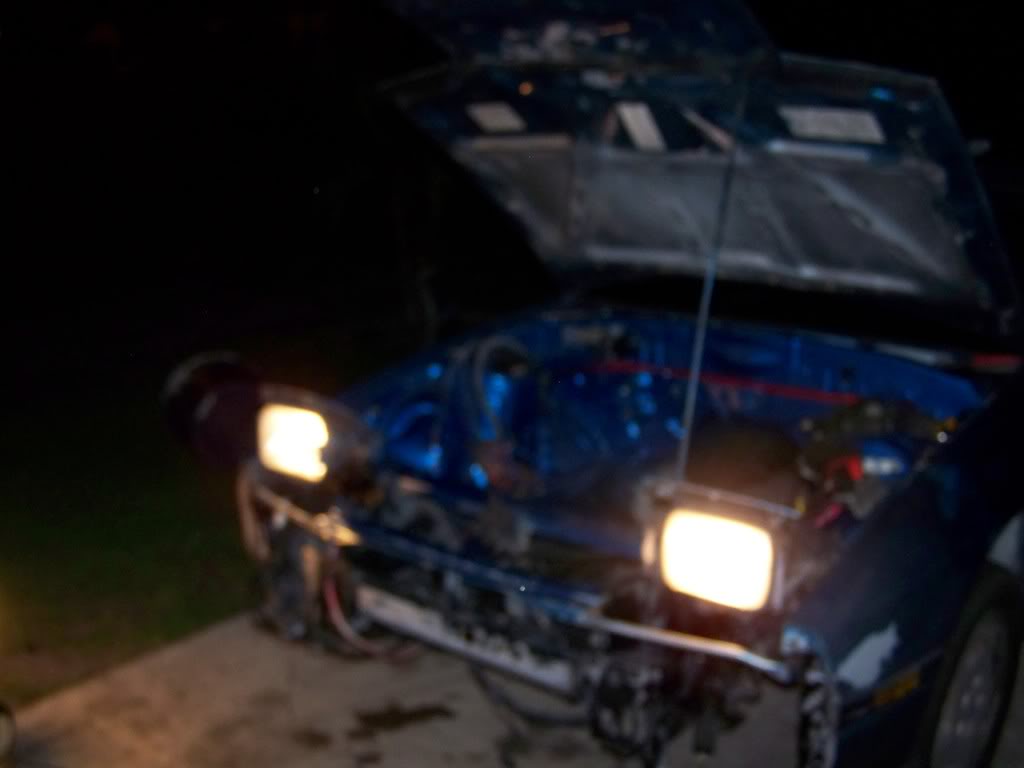

And GOD Said Let There Be Light ! ! !





So far so good ! ! !

RX7 13B 4 UR AZZ

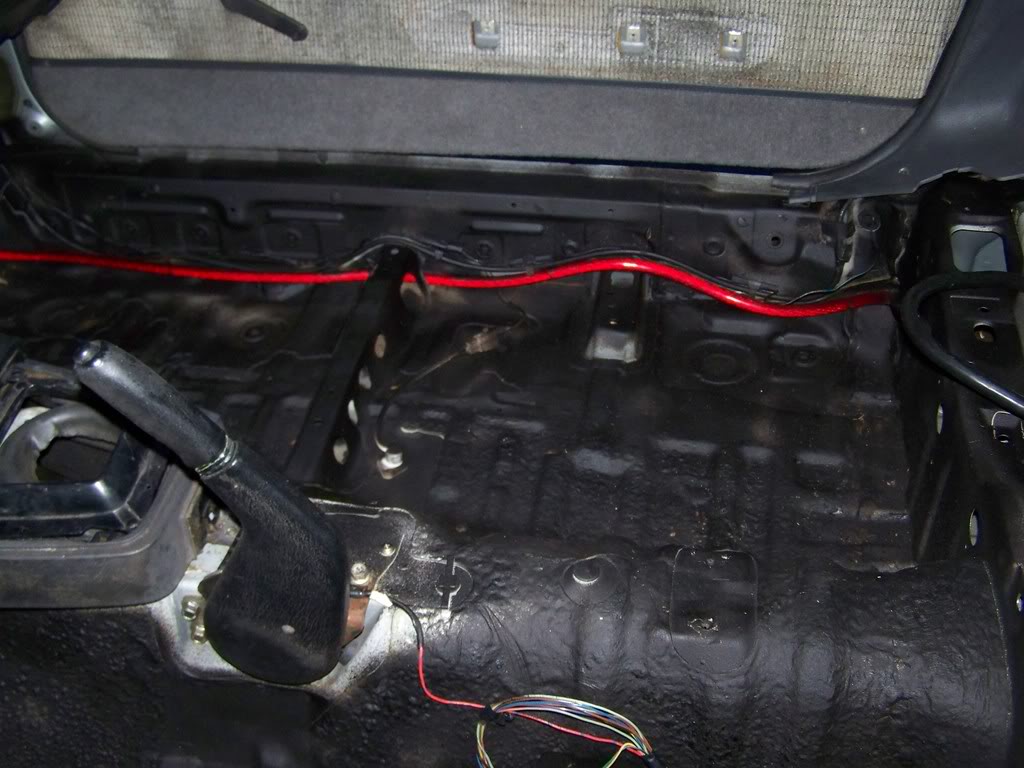

Can anyone offer me any ideas as to a better way to run the main + cable. I was thinking under the chassis but I dont know if that would be to good. Any input would help Thanks.

shainiac

Whats wrong with running it along the drivers side of the cabin and through the firewall on that side?

It would require a lot less cable and keep it away from the exhaust side of the engine.

RX7 13B 4 UR AZZ

Dont know where to drill to get it through i want to run it down the drivers side just cant figure out a spot to open up that wont bother.

jwteknix

i ran my negative cable along the frame rail on the outside of the car and ran the positive inside under the carpet

RX7 13B 4 UR AZZ

Where did you drill into the fire wall? give me an orientation for example to the left of the steering column ect...... Did you run poth a positive and a negative? im just running the positive and grounding the battery close to the battery.

RX7 13B 4 UR AZZ

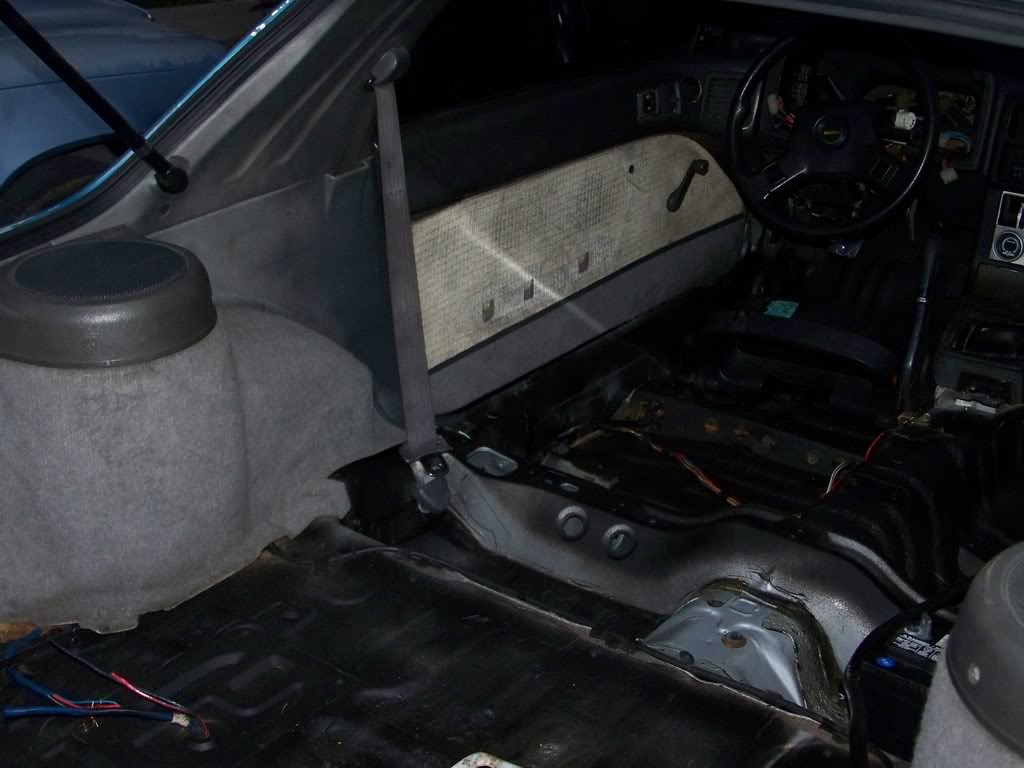

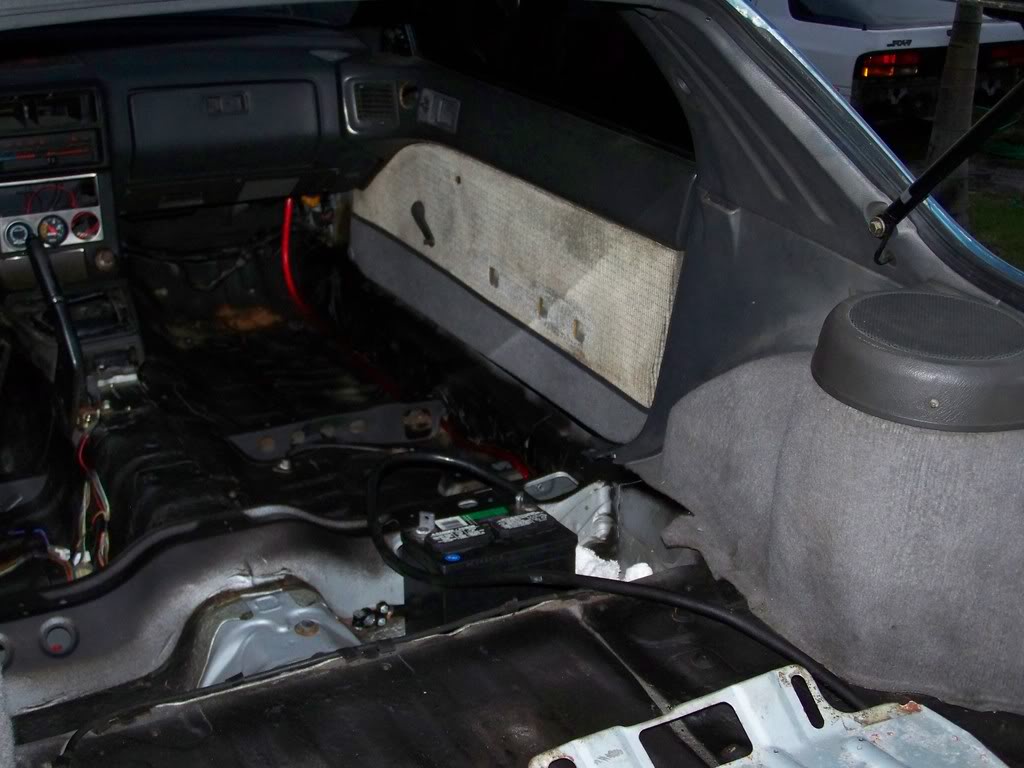

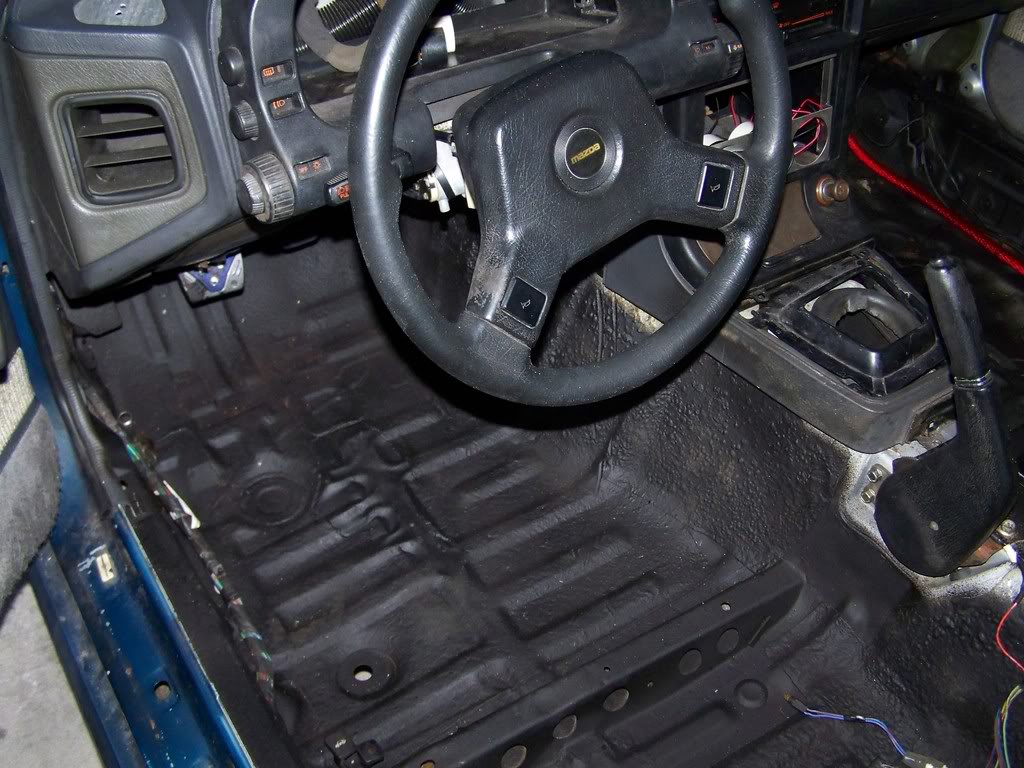

Ok some progress I decided to go with 3M's pro bed liner it inhibits rust, provides sound deadening, and leaves a nice rubber coat I am happy with the results still going to add a couple more coats good stuff and no stink when dry. Remember rug is going in anyways I just wanted to add some protection.

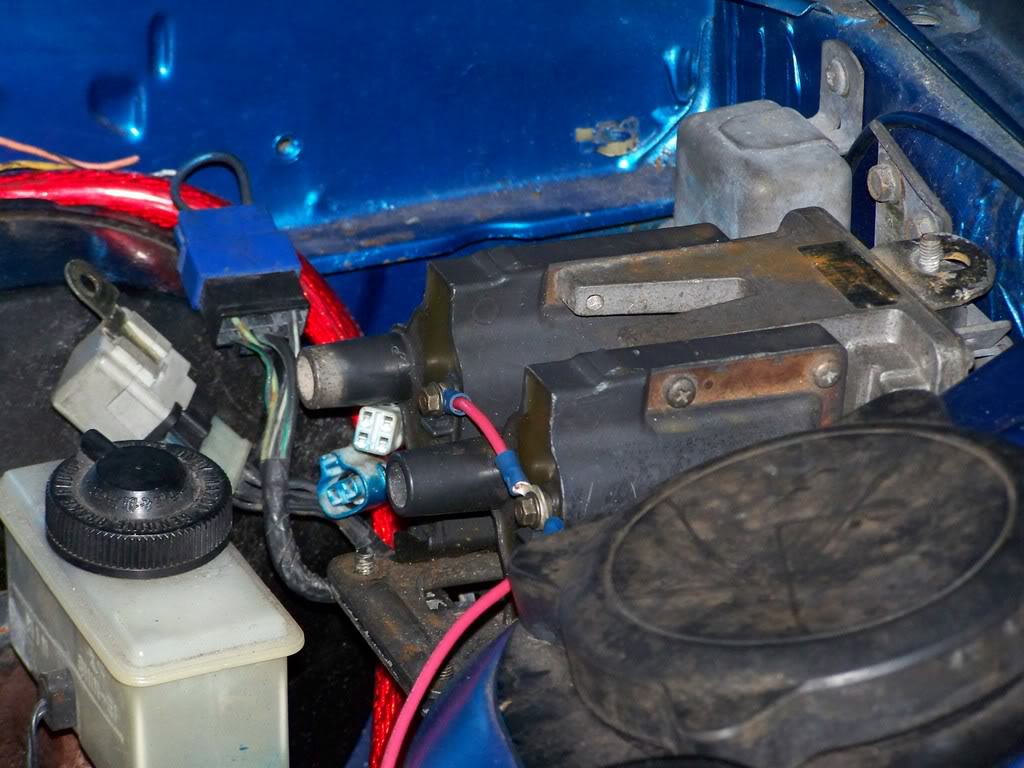

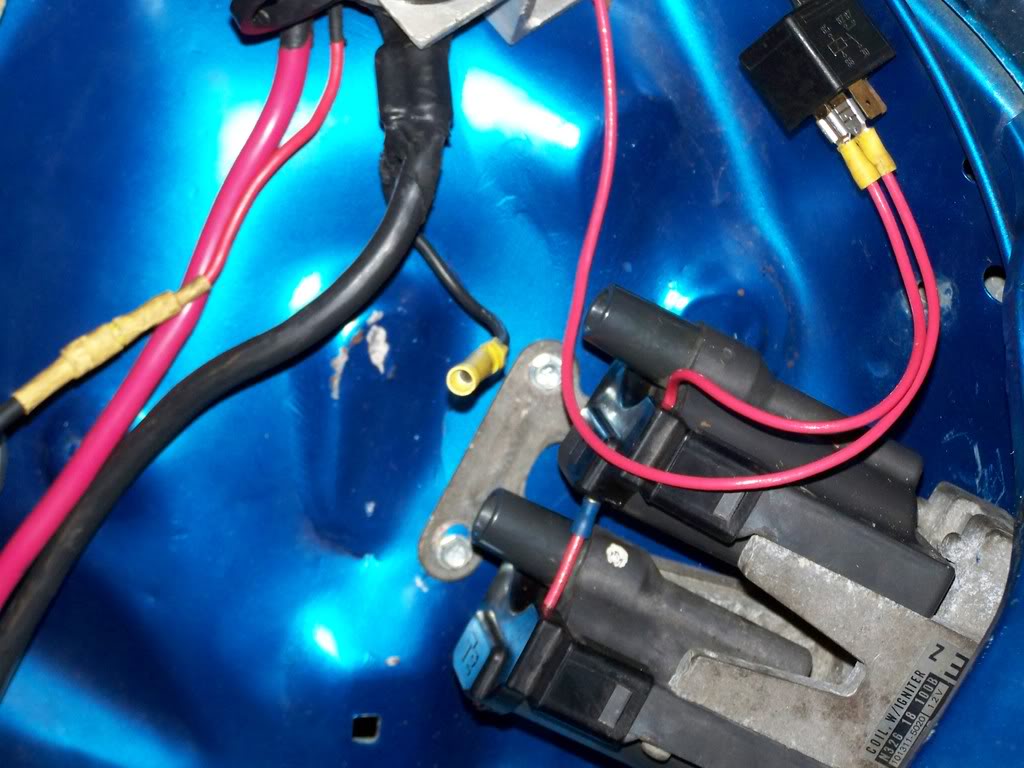

Coil wiring

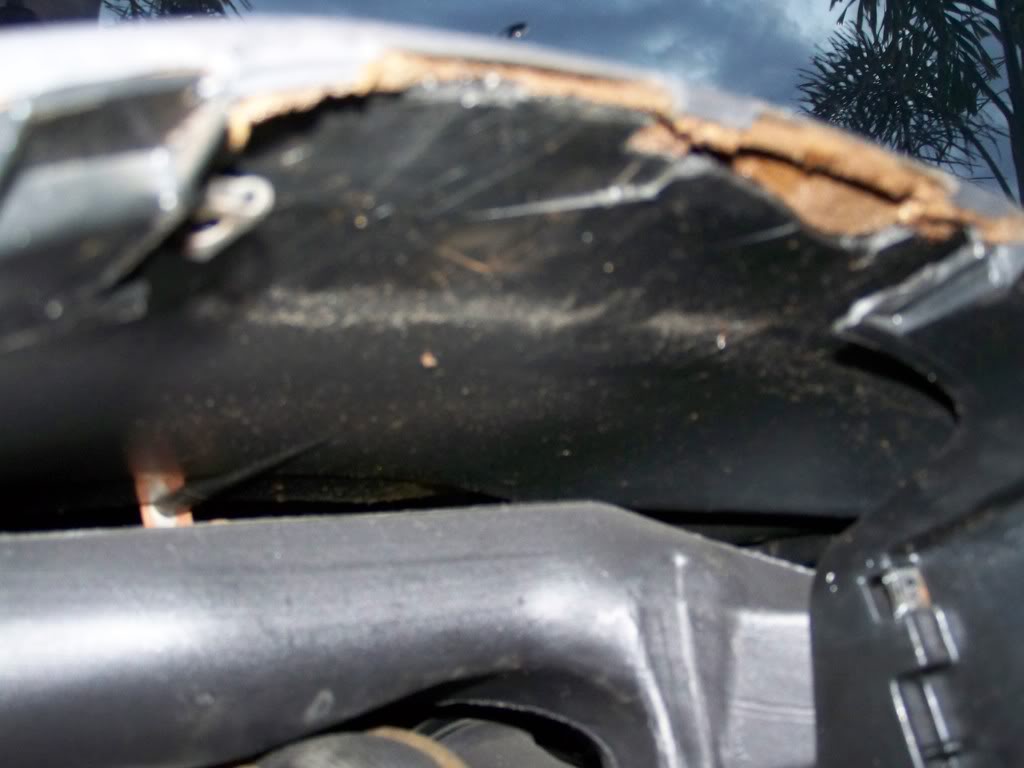

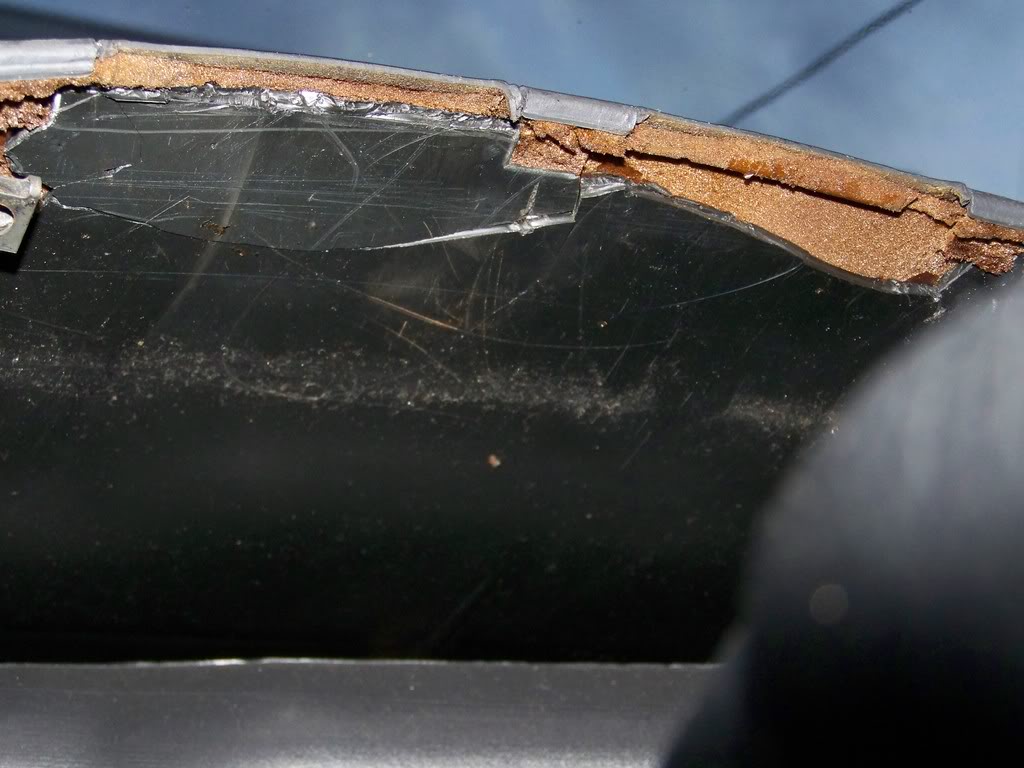

Really need help on what to do with this, this is where the gauge bezel mounts to the dash as you can see mine is tore up. has anyone had any experience on what to do to mount the bezel in this case.









And last but not least my mechanic ME ! ! !

jwteknix

well for the positive I drilled a hole on the lower half of the driverside trans tunnle then ran it inside over the tunnle then ran it down the passanger side under the carpet to the rear bin. For the negative I ran it out through the bin and grounded it all the way up the frame rail to the engine bay.
