ok im down to 3 housings/1 rotor and 1 crankshaft what next?????????????

the bastard thing!

which is supposed to come off next? the "fat" intake housing or the "skinny" one? Or does it have something to do with the rotor housing in the middle of the mess?

Chris

10-10-2003, 07:48 PM

toddp31

Senior Member

Join Date: Dec 2002

Location: Misawa Japan

Posts: 826

I don't understand what you have taken off. Are you already taking off the plates and housings?

10-10-2003, 08:10 PM

chris_2zzge

Junior Member

Thread Starter

Join Date: Oct 2003

Posts: 9

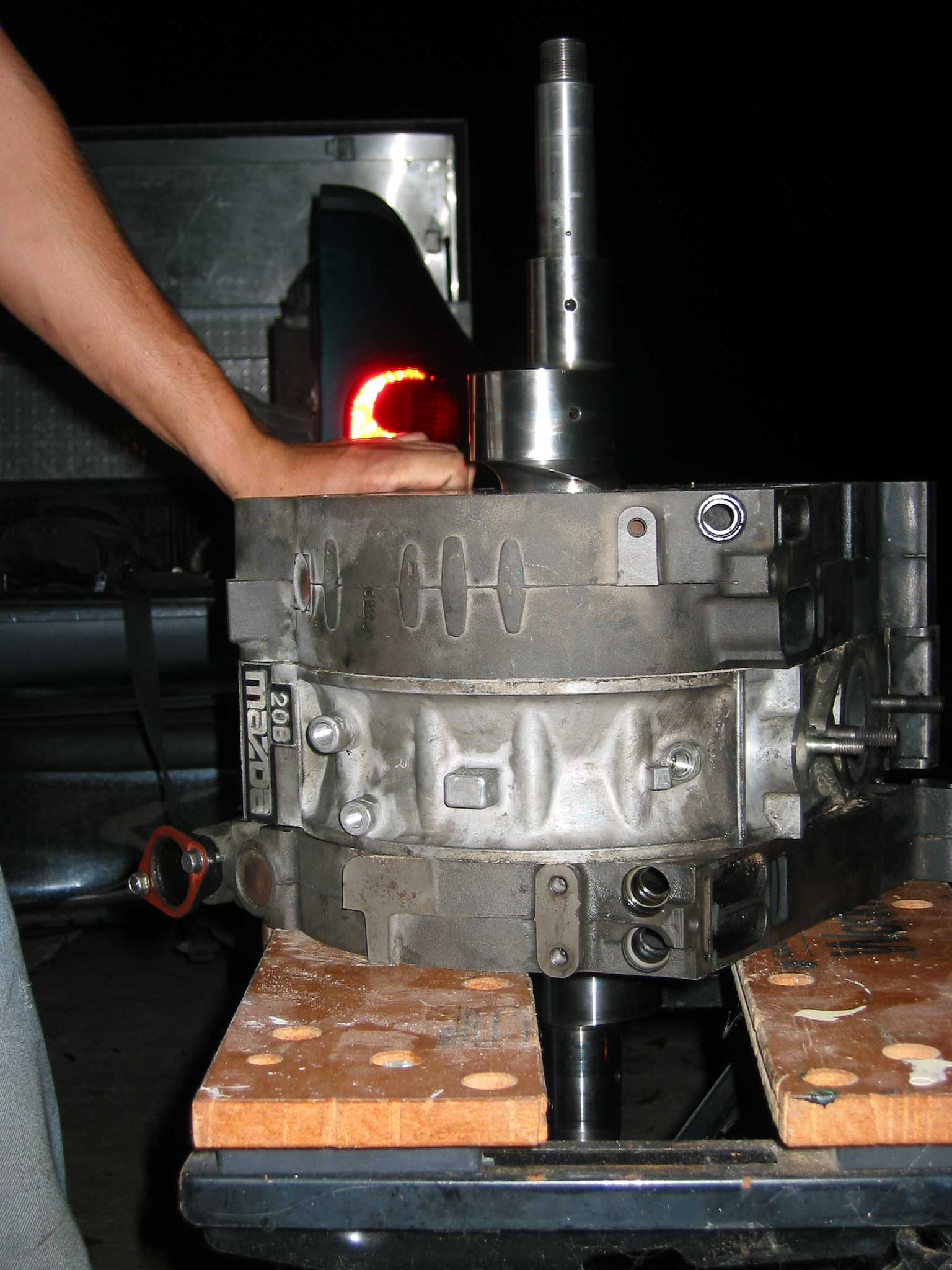

heres a picture i just took

Attached Thumbnails

Help! How To Disassemble 20b, Inner Housing-20b_stuck_1.jpg

10-10-2003, 08:12 PM

chris_2zzge

Junior Member

Thread Starter

Join Date: Oct 2003

Posts: 9

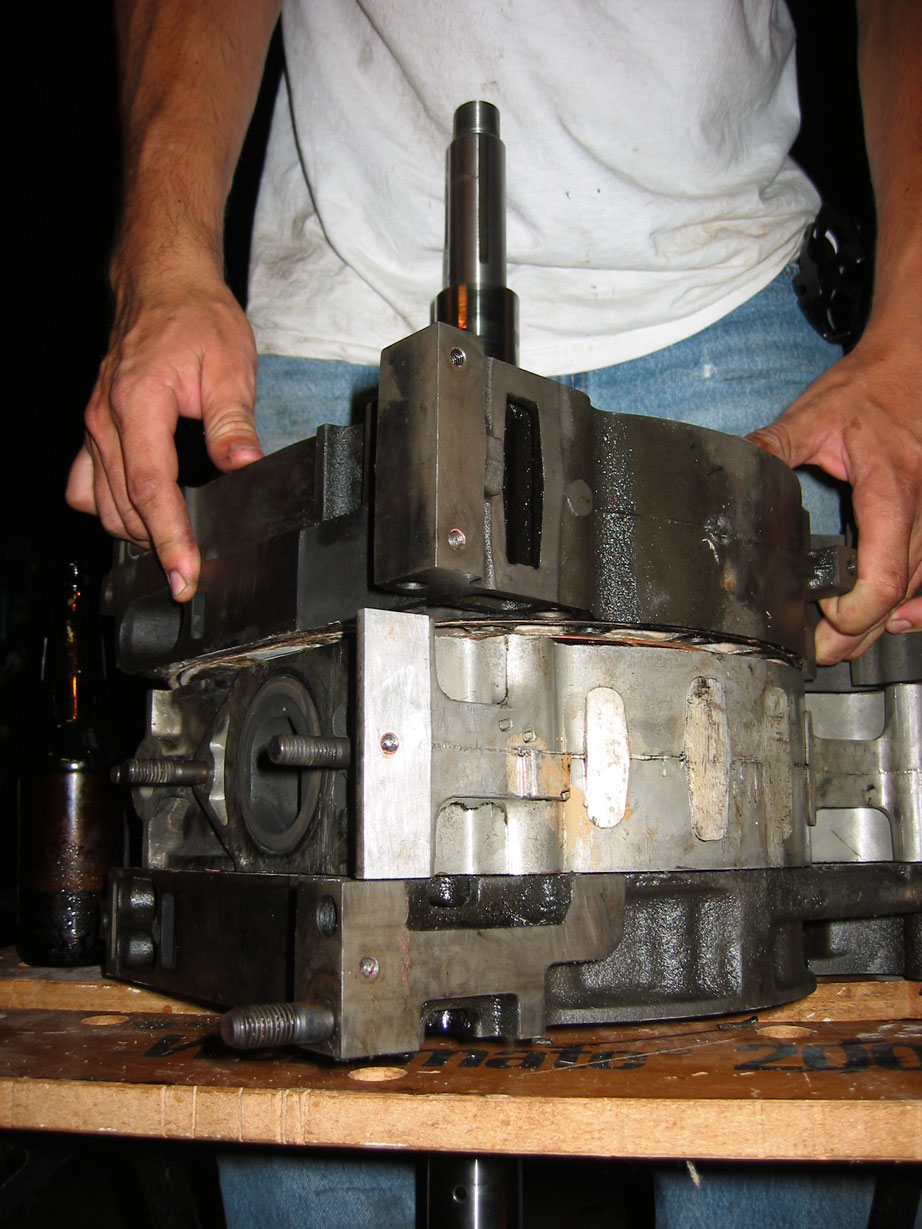

sorry i got huge pics, but at least you can see...

here i have nigel lifting the top housing and getting no where.

<-- im going nutz

Attached Thumbnails

Help! How To Disassemble 20b, Inner Housing-20b_stuck_2.jpg

10-10-2003, 08:17 PM

j9fd3s

Senior Member

Join Date: May 2002

Location: California

Posts: 22,465

i think this is where you need to pop the e shaft apart

mike

10-10-2003, 08:51 PM

chris_2zzge

Junior Member

Thread Starter

Join Date: Oct 2003

Posts: 9

oh ****! i see the seam where it comes apart... but how do i do it? do i need to pull out the skinnier inner shaft or push?

10-10-2003, 09:09 PM

toddp31

Senior Member

Join Date: Dec 2002

Location: Misawa Japan

Posts: 826

With a 13b you have twist the housing so the lobe on the e-shaft can fit though the hole. I am not sure if a 20b is the same, where is IGY or Dragon? Who know there migh be a trick with a 20b, hold on I will give him a call!
