Na Bridgeport Pics.

Reply Subscribe

Thread Tools

Search this Thread

01-20-2004, 04:30 AM

#11

Jeff20B

Senior Member

Join Date: Nov 2001

Posts: 2,284

5mm?

01-20-2004, 12:22 PM

#12

ArmyOfOne

Senior Member

Join Date: Oct 2003

Location: Fort Lewis Washington

Posts: 705

Quote:

Originally Posted by Ronny' date='Jan 20 2004, 02:09 AM

The front and rear housings are european spec. without rotating the sleave, it uses a butterfly valve in the intake manifold to open/close it.

Could you please send me pics of this manifold? I am working with a buddy to make an adapter plate that goes between the intake and the engine that does this same thing.

01-20-2004, 01:27 PM

#13

kahren

Senior Member

Join Date: Jan 2002

Location: CT

Posts: 1,345

the bridge u can make a lot thinner, i woudl leave about 3-4 mm

that should be plenty reliable still

01-20-2004, 06:17 PM

#14

Ronny

Member

Thread Starter

Join Date: Jan 2004

Posts: 60

I`ll take some pics of and post it tomorrow.

Should I make the eyebrown wider or just extend the sec. and 6port further out until the bridge is 4-5mm?

What about the primary ports?

01-21-2004, 08:02 AM

#15

GTUs

Member

Join Date: Nov 2003

Posts: 82

Quote:

Originally Posted by ArmyOfOne' date='Jan 20 2004, 10:22 AM

Could you please send me pics of this manifold? I am working with a buddy to make an adapter plate that goes between the intake and the engine that does this same thing.

I am interested in seeing this too. Please do show us some pictures, please.

01-21-2004, 08:42 AM

#16

drifter

Senior Member

Join Date: Dec 2002

Location: Perth, Western Australia

Posts: 1,788

Quote:

Originally Posted by Ronny' date='Jan 20 2004, 08:35 AM

pic of the bevel on the housing.

Is that necessary for a bridge port? I tend to see that done for port-matching on J-ports, due to it cutting so deep into the water seal.

01-21-2004, 09:55 AM

#17

Ronny

Member

Thread Starter

Join Date: Jan 2004

Posts: 60

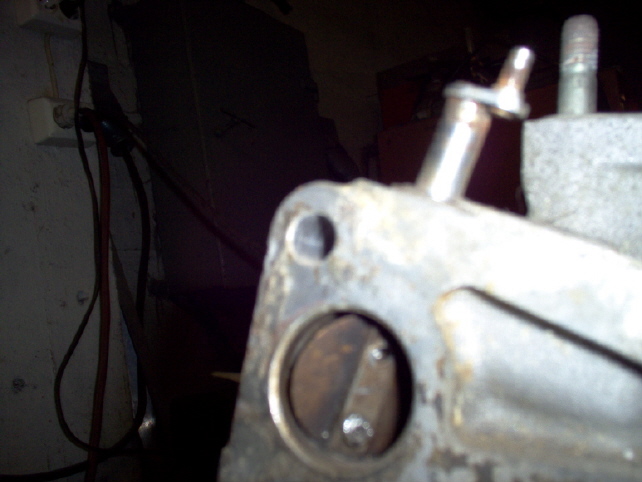

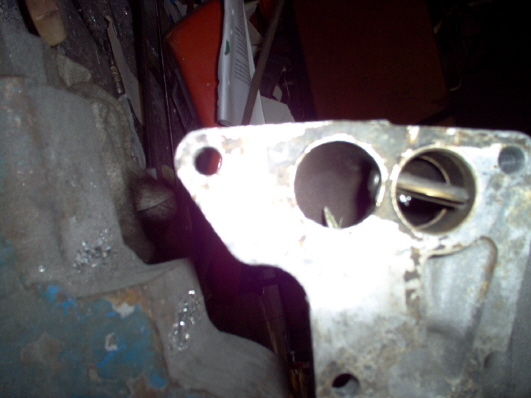

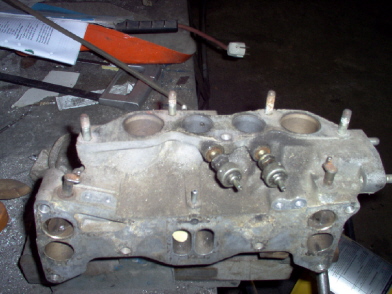

I haven't cut the port or the bevel all the way into the waterseal groove, there is 1-1,5mm casting lesft between it. I think (and hope,hehe) it will help the flow from the bp alot. Here is some pics of the euro. spec intake manifold. The aux. ports dont have the rotating sleeve, so they give a very nice flow.
