Na Bridgeport (finally)

Thread Tools

Search this Thread

Old Dec 18, 2003 | 04:47 PM
Share
  #31
ArmyOfOne's Avatar
ArmyOfOne
Senior Member

Joined: Oct 2003
Posts: 705
From: Fort Lewis Washington
Default

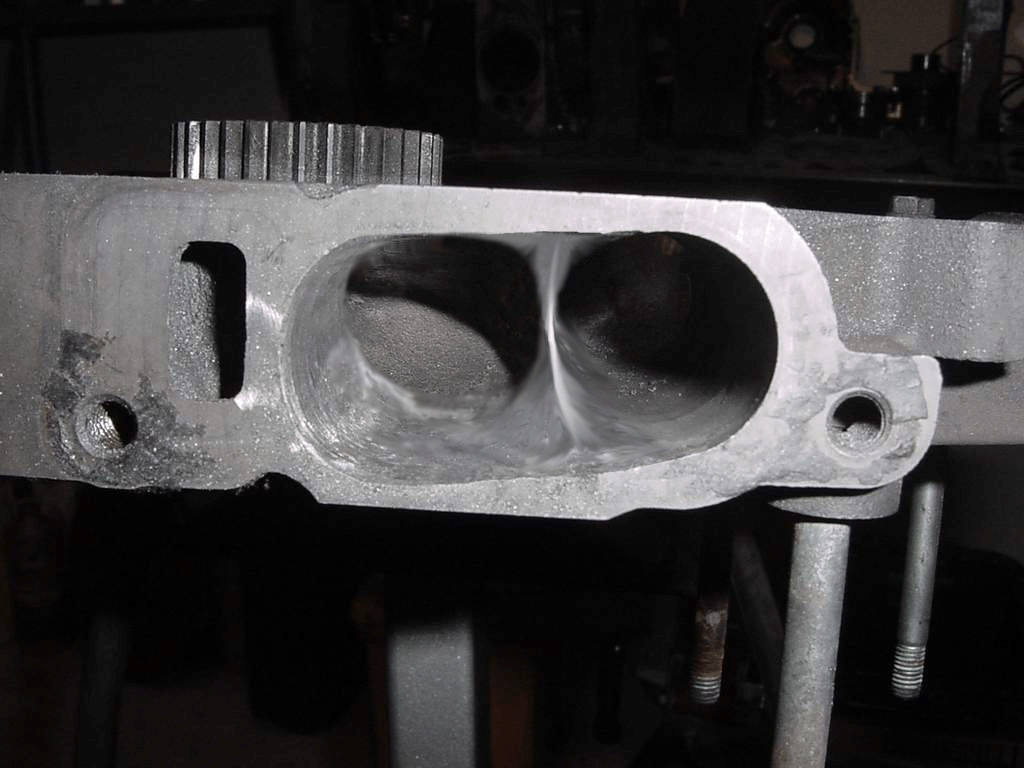

This is the direction this has me thinking. Take those two holes and treat them as if they were the throttle body on a GM TBI.
Attached Thumbnails Na Bridgeport (finally)-6prtmodified.gif
Reply
Old Dec 18, 2003 | 05:20 PM
Share
  #32
ArmyOfOne's Avatar
ArmyOfOne
Senior Member

Joined: Oct 2003
Posts: 705
From: Fort Lewis Washington
Default
Also the upper port without the sleeve is going to be very turbulent. How would we be able to prepare the port for epoxy to make it flow more like the secondaries?



just my $1.50...
Reply
Old Dec 18, 2003 | 06:54 PM
Share
  #33
kahren's Avatar
kahren
Thread Starter
Senior Member

Joined: Jan 2002
Posts: 1,345
From: CT
Default
Originally Posted by ArmyOfOne' date='Dec 18 2003, 06:20 PM
Also the upper port without the sleeve is going to be very turbulent. How would we be able to prepare the port for epoxy to make it flow more like the secondaries?



just my $1.50...
exactly, i was thinking abotu that too, i might weld a piece in there to help teh flow
Reply
Old Dec 19, 2003 | 06:15 PM
Share
  #34
CGeek2k's Avatar
CGeek2k
Senior Member

Joined: Nov 2003
Posts: 521
From: Hell (Colorado School of Mines)
Default
My God! That port is GINORMUS! Will the engine idle with that?
Reply
Old Dec 19, 2003 | 09:38 PM
Share
  #35
ColinRX7's Avatar
ColinRX7
Senior Member

Joined: Oct 2003
Posts: 3,502
From: Canada
Default
I would be worried about the epoxy coming loose!



Couldn't that happen if you used the filler?
Reply
Old Dec 19, 2003 | 11:38 PM
Share
  #36
ArmyOfOne's Avatar
ArmyOfOne
Senior Member

Joined: Oct 2003
Posts: 705
From: Fort Lewis Washington
Default
Others here have used it with success. Whats the name of the stuff Racing Beat sells. Its a 2 part metallic epoxy... *not JB weld!*... lol
Reply
Old Dec 20, 2003 | 11:13 AM
Share
  #37
ColinRX7's Avatar
ColinRX7
Senior Member

Joined: Oct 2003
Posts: 3,502
From: Canada
Default
Originally Posted by ArmyOfOne' date='Dec 19 2003, 09:38 PM
Others here have used it with success. Whats the name of the stuff Racing Beat sells. Its a 2 part metallic epoxy... *not JB weld!*... lol
I would be mainly concerned about the expansion properties of the epoxy with heat and cold..



I don't have much experience with epoxy, though. Curious if you guys can answer any of my questions..
Reply
Old Dec 20, 2003 | 03:09 PM
Share
  #38
kahren's Avatar
kahren
Thread Starter
Senior Member

Joined: Jan 2002
Posts: 1,345
From: CT
Default

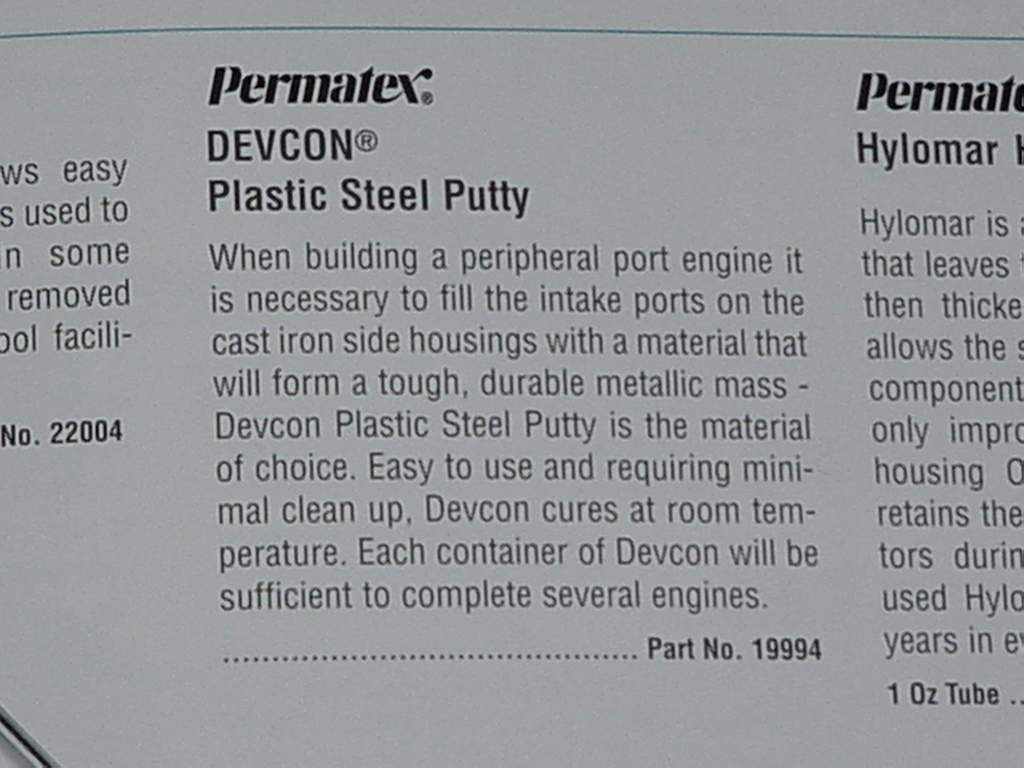

this is what i have foudn in teh reacing beat catalog and i will give it a try i guess

here is a pic fo the escription.
Attached Thumbnails Na Bridgeport (finally)-steel_putty.jpg
Reply
Old Dec 20, 2003 | 03:20 PM
Share
  #39
ArmyOfOne's Avatar
ArmyOfOne
Senior Member

Joined: Oct 2003
Posts: 705
From: Fort Lewis Washington
Default
Yup thats the stuff. I hear you just gotta apply it in layers to allow each layer to cure and set. Then after that its time for the grinder.
Reply
Old Dec 20, 2003 | 04:11 PM
Share
  #40
kahren's Avatar
kahren
Thread Starter
Senior Member

Joined: Jan 2002
Posts: 1,345
From: CT
Default
Originally Posted by ArmyOfOne' date='Dec 20 2003, 04:20 PM
Yup thats the stuff. I hear you just gotta apply it in layers to allow each layer to cure and set. Then after that its time for the grinder.
i will talk toracign beat beore i use it
