Do 13brew Have Issues With Oil Being Delivered?
10-01-2003, 08:32 PM
#21
Senior Member
Join Date: Dec 2002
Location: Minnesota
Posts: 911
Originally Posted by Dragon' date='Sep 30 2003, 10:53 PM
[quote name='setzep' date='Sep 30 2003, 06:27 PM'] Thanks for the answer.
This isn't the dark side, this is the good side. Less BS over here.
This isn't the dark side, this is the good side. Less BS over here.
I'm not tarded, just slow... I swear!
sorry about that.
10-02-2003, 02:05 AM
#22
Senior Member
Join Date: Sep 2002
Posts: 2,550
Originally Posted by setzep' date='Oct 1 2003, 05:32 PM
[quote name='Dragon' date='Sep 30 2003, 10:53 PM'] [quote name='setzep' date='Sep 30 2003, 06:27 PM'] Thanks for the answer.
This isn't the dark side, this is the good side. Less BS over here.
This isn't the dark side, this is the good side. Less BS over here.
I'm not tarded, just slow... I swear!
sorry about that. [/quote]
10-02-2003, 12:54 PM
#23
Senior Member
Join Date: May 2002
Location: California
Posts: 22,465
Originally Posted by CarmonColvin' date='Sep 24 2003, 05:01 AM
What is the "Loop Line" option that is mentioned on the Pineapple Racing website? I have never seen that before.
mike
10-02-2003, 01:35 PM
#24
Senior Member
Join Date: May 2002
Posts: 114
Originally Posted by j9fd3s' date='Oct 2 2003, 09:54 AM
we got a chance to see some loop lines last weekend, and what i looks like it does is take some high pressure oil from the rear bearing and plumb it directly into the front bearing. so instead of the front bearing being the last to get oiled, its the first along with the rear bearing
mike
mike
10-02-2003, 01:50 PM
#25
Senior Member
Join Date: May 2002
Location: California
Posts: 22,465
Originally Posted by LDawg' date='Oct 2 2003, 10:35 AM
[quote name='j9fd3s' date='Oct 2 2003, 09:54 AM'] we got a chance to see some loop lines last weekend, and what i looks like it does is take some high pressure oil from the rear bearing and plumb it directly into the front bearing. so instead of the front bearing being the last to get oiled, its the first along with the rear bearing
mike
mike
it didnt look that hard, no pics sorry
mike
10-02-2003, 01:52 PM
#26
Senior Member
Join Date: Sep 2002
Posts: 2,550
Originally Posted by j9fd3s' date='Oct 2 2003, 09:54 AM
we got a chance to see some loop lines last weekend, and what i looks like it does is take some high pressure oil from the rear bearing and plumb it directly into the front bearing. so instead of the front bearing being the last to get oiled, its the first along with the rear bearing
mike
mike
Pic's of this mod please..
10-02-2003, 01:58 PM
#28
Senior Member
Join Date: Sep 2002
Posts: 2,550
Originally Posted by j9fd3s' date='Oct 2 2003, 10:55 AM
basically theres an an line coming from the oil filter and going to a the front steel, i guess they drill a new passage
wonder if this will work on the 20B as wel.. hrmm.. got's 2 more bearings in there to lube up...
10-02-2003, 04:26 PM
#29
Senior Member
Join Date: May 2002
Location: California
Posts: 22,465
Originally Posted by Dragon' date='Oct 2 2003, 10:58 AM
need pic's of the location to drill and I'm all over it...
wonder if this will work on the 20B as wel.. hrmm.. got's 2 more bearings in there to lube up...
wonder if this will work on the 20B as wel.. hrmm.. got's 2 more bearings in there to lube up...
mike
10-02-2003, 08:07 PM
#30
Senior Member
Thread Starter
Join Date: Jan 2003
Location: Portland Oregon
Posts: 292

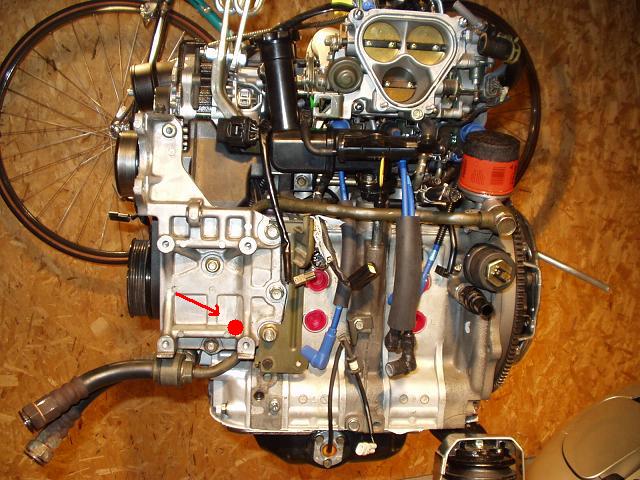

im sure that you are familiar with the 13b dragon, if I had a pic of a front plate I would show it better, but this will work.
It is under the accessories plate right around the area of that big red dot.
I believe they bore out a channel that is covered by a aluminum hydraulically placed small round plate in that area.
To get the oil there they take a piece of .75 aluminum plate and stack it inbetween the oil filter and block with a extra port in it for the AN line to the newly bored front port.
It is under the accessories plate right around the area of that big red dot.
I believe they bore out a channel that is covered by a aluminum hydraulically placed small round plate in that area.
To get the oil there they take a piece of .75 aluminum plate and stack it inbetween the oil filter and block with a extra port in it for the AN line to the newly bored front port.
