A Good Day At Work

Thread Tools

Search this Thread

Old 03-12-2003, 07:52 PM
  #1
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default
Well, I had the honor to disassemble one of the rarest and most powerful 4cy-turbo 2.0L endurance motors ever created today...here are some pics.

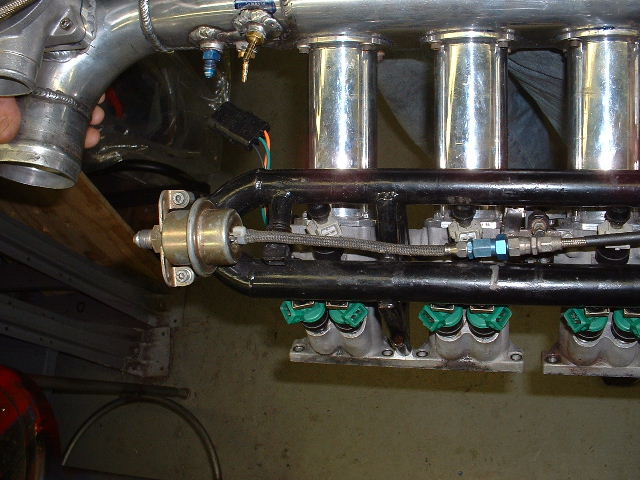

this one is of the first thing that I removed...the intake manifold that had 3! injectors per cylinder!
Attached Thumbnails A Good Day At Work-3perhole.jpg
Apex13B is offline
Reply
Old 03-12-2003, 07:53 PM
  #2
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default
here i am with all my ugly dirty glory with the manifold
Attached Thumbnails A Good Day At Work-probeintake.jpg
Apex13B is offline
Reply
Old 03-12-2003, 07:54 PM
  #3
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default

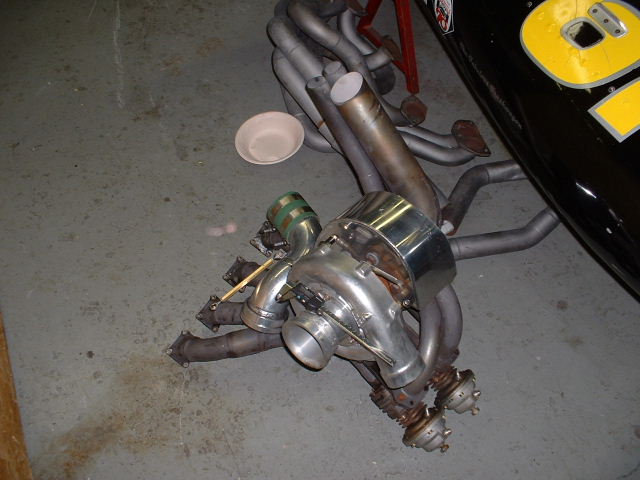

got boost? that is a 9 inch digital caliper on the inlet tract of the turbo
Attached Thumbnails A Good Day At Work-bigturbo.jpg
Apex13B is offline
Reply
Old 03-12-2003, 07:55 PM
  #4
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default

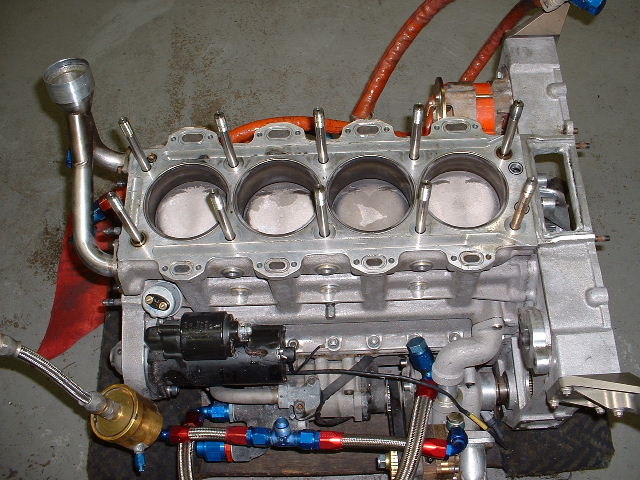

Dry deck block....dry sump..total racing piece
Attached Thumbnails A Good Day At Work-probeblock.jpg
Apex13B is offline
Reply
Old 03-12-2003, 07:56 PM
  #5
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default

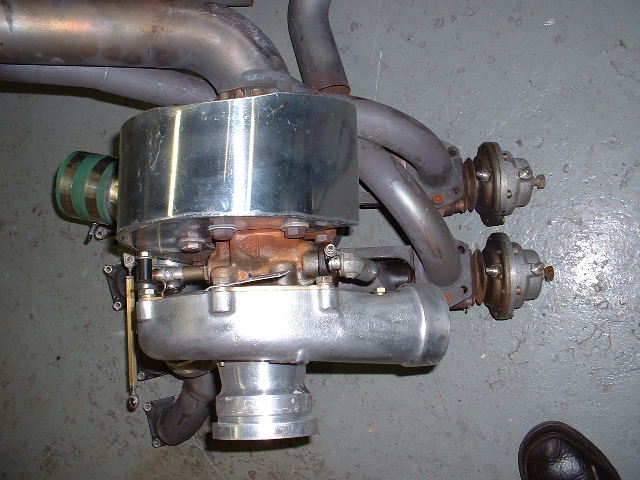

another shot of the hair dryer
Attached Thumbnails A Good Day At Work-probeturbo2.jpg
Apex13B is offline
Reply
Old 03-12-2003, 07:59 PM
  #6
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default

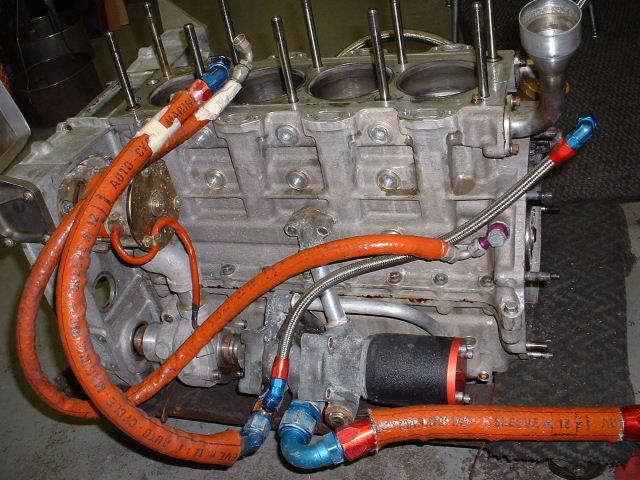

Take a look at how the Alternator and water/oil pump is inergral with the front mount/cover
Attached Thumbnails A Good Day At Work-probeblock2.jpg
Apex13B is offline
Reply
Old 03-12-2003, 08:01 PM
  #7
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default
last week's project...piece of **** motor
Apex13B is offline
Reply
Old 03-12-2003, 08:03 PM
  #8
Senior Member
Thread Starter

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default

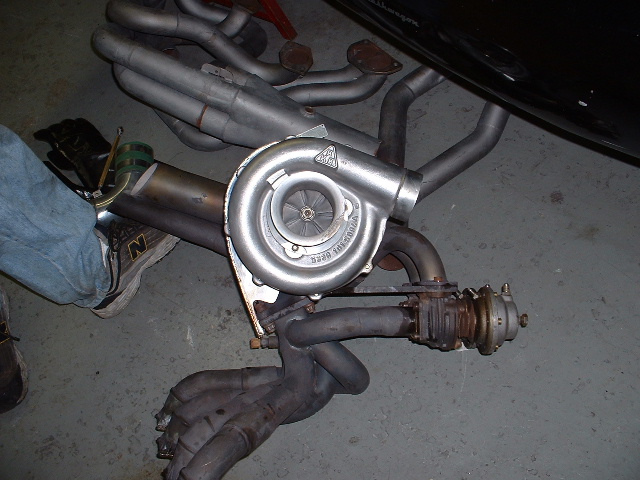

ahhh found another one of the turbo...muuahahah
Attached Thumbnails A Good Day At Work-probeturbofoot.jpg
Apex13B is offline
Reply
Old 03-12-2003, 08:06 PM
  #9
Senior Member

P'cola FD's Avatar

Join Date: Sep 2002
Posts: 525
Default
I'd just like to say: HOLY JESUS!! Where in the **** do you work? And can I please get a job there?
P'cola FD is offline
Reply
Old 03-12-2003, 08:08 PM
  #10
Senior Member

P'cola FD's Avatar

Join Date: Sep 2002
Posts: 525
Default
And what kind of car did this come out of (model/class)?
