Rx7aholic

Ok I got the picute good, but I can't firgure out what part of the wastegae & pca to cap? Last weekend I hook only the wastegate to the profec b, in otherwords I removed the short host run it into the in port of the stepper motor and com port to the wastegate. Now if I use a T-fitting for both pca & wastegate setup where would I cap the wastegte? Casue if u coming out from the out port and using a another T-fitting shouldn't goes into the pca & wastegate side? I am doing reading this diagram wrong? Or looking at wrong?

BoOsTin FD

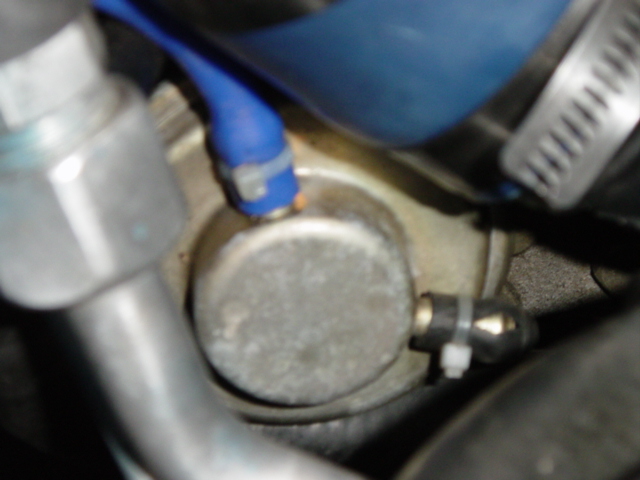

You should cap this for the wastegate, and also plug the hose that went into that nipple. If you use Version 2, you should do the exact same thing for the Pre-control acuator.



Amel

BoOsTin FD

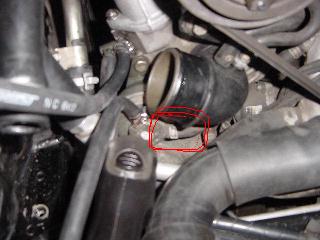

a little diff picture. you should cap the hose in the Red box. this shows the setup if you use Version 1.



Amel

FikseRxSeven

lol someone is not controlling his boost..... nice crack on the hose

BoOsTin FD

I belive that's Dave's picture.



Amel

Rx7aholic

Ok guys what is the purpose of capping those lines (refereding to the red square box)? This electric boost controoler is more complex than I bargain for. I have been using the home depot mbc {two valves) since in 95 with no problems and now I deceide to go with modern and It look more complex to me. btw I never cap off those lines when I had the mbc on the car. Can some explain to me the reason why, sorry to be dumb head I am ver curious to find out why cap those when the boost is building from the stepper motor?btw I am planning to use version 2.

Sinful7

Those two hoses recieve the vacum signal from the stock solenoids - If you're using a MBC then you leave them in place.. When you switch to the electronic controller, the solenoids are no longer required to signal the wastegate to open, so you remove the lines and cap the port. Capping the port ensures a reliable signal from the stepper motor.

Rx7aholic

Ok got the pictures now, thanks alot everyone. khris

Rx7aholic

btw the lines that goes to the soleniod those need to be cap too? Also does anyone know how to program the profec b spec 2 version? I brought it used which means i got user manual neither directions on how to installd it. thanks, khris

Rx7aholic

btw for those who is atempting to do version 2 expect to see alot over boost at transitions, I have try it and I have set my level to 1 in low and when I test it I hit over 15 lbs of boost.
