teknics

hey guys, basically im looking for some pics or details on how to modify the greddy elbow.



I figure basically just cut it off and weld on 3" aluminum piping? i would like some reference pics tho before i go get all "*****-nilly" lol.



thx



kevin.

Fd3BOOST

Why do you want to basterdize, I mean modify it?

jwteknix

probly bc the front end where the it meets the ic piping goes from 3-2.5 inches it causes a bit of an intake restriction for those using 3in piping kev you could always pm anthonynyc he had his done remember im sure he will give pix and a write up on it

amp

just run a coupling thatll support 2.5 to three..

jwteknix

i dont think hed wana go 3- 2.5- 3 thst a good amout of restriction in the intake for no reason when u could just cut the 2.5 off and make it 3 all the way

Dave G.

We cut them off right where they start to bend off the TB and weld on 4" piping to go to the intercooler. I'll see if I have any pics here at home, but I think they all might be at work.

Dave G.

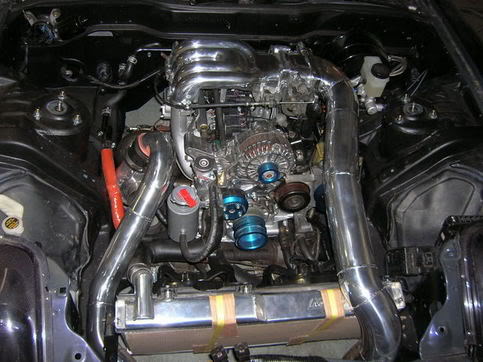

It's kinda hard to see, but I don't have any bigger pics from home.







These are of the 3" piping being used, but with an A'PEXi FMIC converted to V-Mount. On that one we cut off the end of the elbow just past where that step is, and welded a lip around it so the coupler wouldn't slip off.

Fd3BOOST

^^ That's pretty nice Dave ^^^

jwteknix

yeah the first pic looks very nice good job

teknics

well as for "why" a 2nd gen bay is a lot more cramped, that extra angle of the greddy elbow has it coming out like right next to my alternator, aiming to the pass. side...not exactly good placement when my I/C pipes comes up between the rad and frame rail and directly to the tb.



all unnecessary angles do is create restriction.



those pics are nice dave, thanks. i dont know i fi feel like trying to do the aluminum welding on this or if i should give it to another shop again this time.... ill have to practice a few times.



kevin.
