Manual Boost Controller
its a none colored line
10-18-2003, 07:00 PM
#5
Senior Member
Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Nah Jay I talked him into a turbosmart controller.

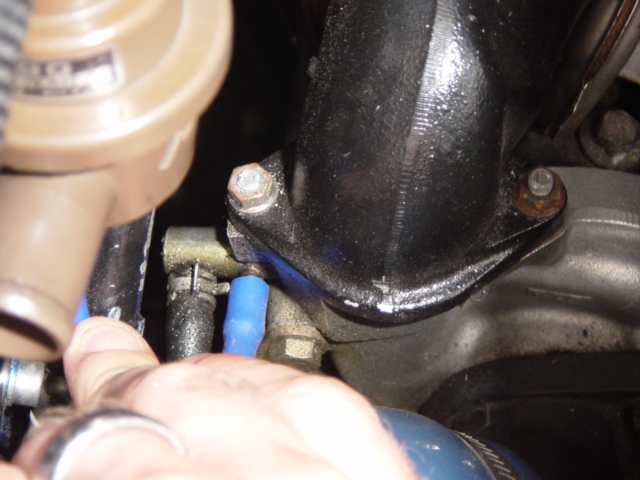

Martin run a hose from the turbo pipe, blue line in the pic
To the "in" arrow on the controller then connect the "out" arrow on the controller to the wastegate actuator. There should have been a small 5" hose with a wastgate pill in there that you have to remove to put in the new lines.
Very important that you make sure to also remove the 2nd line off the wastegate actuator and cap that end also. Finaly cap the end of the pipe that it was attached to and you should be all set.
Open the controller up about 2 full turns first and you should be able to go from there.
Martin run a hose from the turbo pipe, blue line in the pic
To the "in" arrow on the controller then connect the "out" arrow on the controller to the wastegate actuator. There should have been a small 5" hose with a wastgate pill in there that you have to remove to put in the new lines.
Very important that you make sure to also remove the 2nd line off the wastegate actuator and cap that end also. Finaly cap the end of the pipe that it was attached to and you should be all set.
Open the controller up about 2 full turns first and you should be able to go from there.
10-18-2003, 07:01 PM
#6
Senior Member
Join Date: Nov 2001
Location: NJ
Posts: 4,981
Originally Posted by Fd3BOOST' date='Oct 18 2003, 07:00 PM
Nah Jay I talked him into a turbosmart controller.
Martin run a hose from the turbo pipe, blue line in the pic
To the "in" arrow on the controller then connect the "out" arrow on the controller to the wastegate actuator. There should have been a small 5" hose with a wastgate pill in there that you have to remove to put in the new lines.
Very important that you make sure to also remove the other line off the wastegate actuator and cap that end. Also cap the end of the pipe that it was attached to.
Martin run a hose from the turbo pipe, blue line in the pic
To the "in" arrow on the controller then connect the "out" arrow on the controller to the wastegate actuator. There should have been a small 5" hose with a wastgate pill in there that you have to remove to put in the new lines.
Very important that you make sure to also remove the other line off the wastegate actuator and cap that end. Also cap the end of the pipe that it was attached to.
10-18-2003, 07:02 PM
#7
Senior Member
Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Originally Posted by turbovr6' date='Oct 18 2003, 04:01 PM
[quote name='Fd3BOOST' date='Oct 18 2003, 07:00 PM'] Nah Jay I talked him into a turbosmart controller.
Martin run a hose from the turbo pipe, blue line in the pic
To the "in" arrow on the controller then connect the "out" arrow on the controller to the wastegate actuator. There should have been a small 5" hose with a wastgate pill in there that you have to remove to put in the new lines.
Very important that you make sure to also remove the other line off the wastegate actuator and cap that end. Also cap the end of the pipe that it was attached to.
Martin run a hose from the turbo pipe, blue line in the pic
To the "in" arrow on the controller then connect the "out" arrow on the controller to the wastegate actuator. There should have been a small 5" hose with a wastgate pill in there that you have to remove to put in the new lines.
Very important that you make sure to also remove the other line off the wastegate actuator and cap that end. Also cap the end of the pipe that it was attached to.
Yea the Home Depot **** doesnt cut the mustard.
10-18-2003, 09:57 PM
#8
Senior Member
Thread Starter
Join Date: Jan 2003
Location: union, new jersey
Posts: 8,079
Originally Posted by Fd3BOOST' date='Oct 18 2003, 07:00 PM
Very important that you make sure to also remove the 2nd line off the wastegate actuator and cap that end also. Finaly cap the end of the pipe that it was attached to and you should be all set.
Open the controller up about 2 full turns first and you should be able to go from there.
Open the controller up about 2 full turns first and you should be able to go from there.
10-18-2003, 09:59 PM
#9
Senior Member
Thread Starter
Join Date: Jan 2003
Location: union, new jersey
Posts: 8,079
Originally Posted by turbovr6' date='Oct 18 2003, 05:08 PM
I hope you are not joining "Team Home Depot"
