toddp31

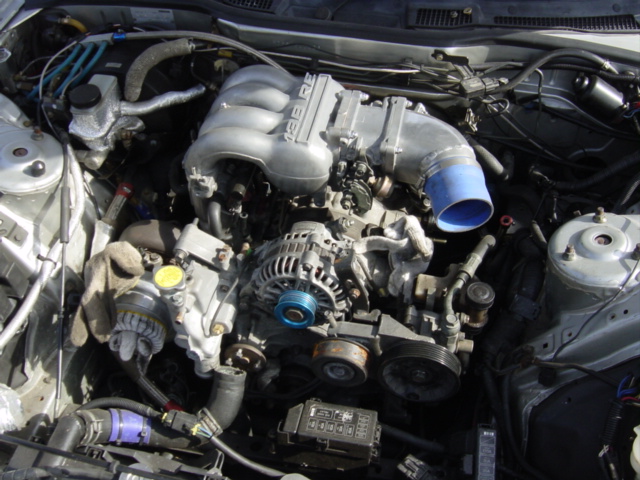

The engine is cosmo front, middle plate with FD rotor housings and rear plate. With zenki Fc rotors (8.5) Fd e-shaft, bearings and front cover. The cosmo intake manifolds with FD throttle body. The engine has not started yet, but should with in a week or so. Turbine is t04r(63 trim with 96 a/r) with hks gt wastegate, F-con V pro. Not sure what problems if any we will run into, nobody has really tried this before here. Will update as we go along

toddp31

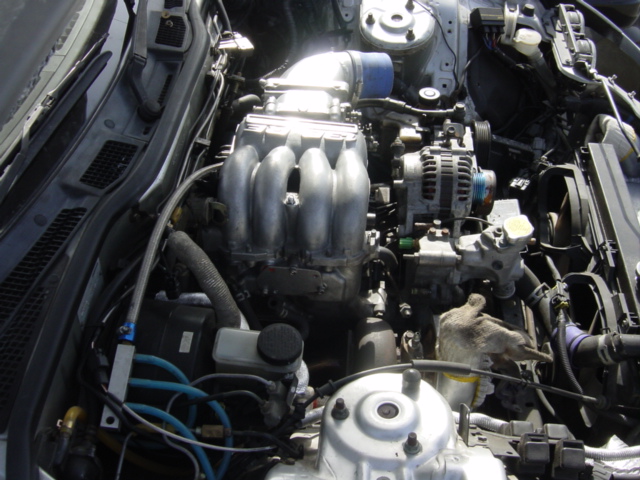

turbo side

toddp31

what you think?

jspecracer7

With the FD throttle body, they would have to fill in part of the Cosmo UIM since they bolt up, but are different.

toddp31

we did thanks Van

jspecracer7

then the engine should fire right up Toddypoo!

Midnightdriver

I was thinking of using and fd TB on my 13B-RE what needs to be filled in on the manifold?

toddp31

where the throttle body meets the cosmo manifold there is section that is open below the throttle body. If you line then up together and look on the bottom you will see it. I will try to take a picture, easier than try to explain it.
