Where Does This Go To?

Thread Tools

Search this Thread

Old 11-18-2003, 08:52 PM
  #1
Member
Thread Starter

tewquick2c's Avatar

Join Date: Apr 2003
Location: Ontario
Posts: 94
Default

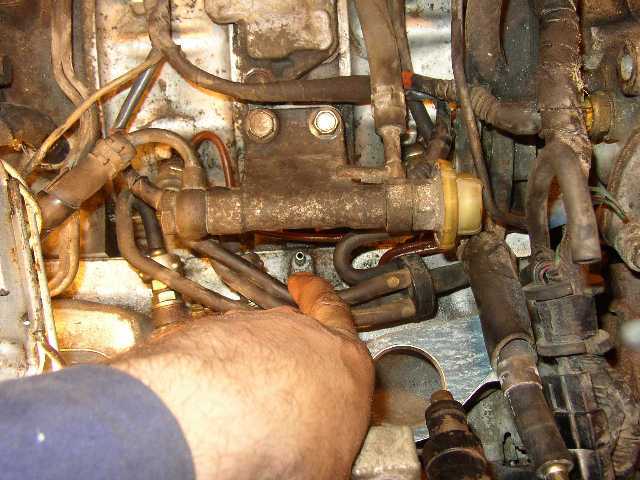

Can someone tell me where the other end of this hose hhoks up to i have looked through both manuals....thanks
Attached Thumbnails Where Does This Go To?-s.jpg
tewquick2c is offline
Old 11-18-2003, 09:28 PM
  #2
Senior Member

1Revvin7's Avatar

Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Default

One of the vacuum nipples on the firewall side of the upper intake manifold. It just needs to see both boost/vacuum..
1Revvin7 is offline
Old 11-19-2003, 03:50 PM
  #3
Member
Thread Starter

tewquick2c's Avatar

Join Date: Apr 2003
Location: Ontario
Posts: 94
Thumbs down

it looks to me like its on the fan side of the motor not the firewall side that it hooks up? I could be mistaken but thats all i could find that worked....thanks
tewquick2c is offline
Old 11-19-2003, 03:55 PM
  #4
Senior Member

Blink's Avatar

Join Date: Nov 2002
Location: sd/nd
Posts: 401
Default

the 3 nipples on the UIM That are on the fan side (ie facing straight forward) are for the vacuum spider.
Blink is offline
Old 11-19-2003, 03:57 PM
  #5
Senior Member

Blink's Avatar

Join Date: Nov 2002
Location: sd/nd
Posts: 401
Default

after looking at a vacuum diagram of the s5 TII. It goes to the nipple that is 3rd from the top on the firewall side of the UIM.
Blink is offline
Old 11-19-2003, 07:00 PM
  #6
Member
Thread Starter

tewquick2c's Avatar

Join Date: Apr 2003
Location: Ontario
Posts: 94
Default

I have an 86 na so i think its different from the turbo's just got home from working on the car got my timing down and she idiols at 700- 800 rpm a lil bit of an exhaust leak at the manifold - first cat does anyoen know if i should be using some kind of gasket between the cat and the manifold, also it seems to be overheating i dont have the fan on or the cover even witht he fan on it runs really hot could that be due too the lack of the cover? and the fuel lines kept springing leaks after ever patch i made.....ahhh this car was 200 bucking me to death then it went to 100 then to 20 now down to 10 i hope it stops breaking soon.......
tewquick2c is offline
Old 11-19-2003, 07:14 PM
  #7
Senior Member

1Revvin7's Avatar

Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Default

You must have the fan shroud on the fan for it to stay cool. I have ran a vacuum line from a port on the bumper side of the tb for that lower nipple. It doesn't matter. You can cap it if you want to, some have done it to no ill effects. Either way it doesn't matter.. Its just the air bleeds for the primary injectors. Helps with low air speed atomization...
1Revvin7 is offline
Old 11-19-2003, 09:46 PM
  #8
Member
Thread Starter

tewquick2c's Avatar

Join Date: Apr 2003
Location: Ontario
Posts: 94
Thumbs up

tb?
tewquick2c is offline
Old 11-19-2003, 10:18 PM
  #9
Senior Member

Pazuzu's Avatar

Join Date: Apr 2003
Posts: 200
Default

It goes to the throttle body, front (fan) side, there are three nipples, the middle one. The bigger top nipple is for the oil injector, and the bottom nipple is for something else (duh).
Pazuzu is offline
Old 11-19-2003, 10:27 PM
  #10
Senior Member

FrestyleFC3S's Avatar

Join Date: Apr 2003
Location: Schofield Barracks, HI
Posts: 2,259
Default

um..........





it goes to the firewall side of the UIM....









reason being.... front side of UIM is for emissions and there are no nipples on the TB
FrestyleFC3S is offline
