TB vacuum line, where should it go...

Old 03-31-2014, 06:35 PM
  #1
Junior Member
Thread Starter

Join Date: Mar 2014
Posts: 1
Default TB vacuum line, where should it go...

i have a S4 Turbo II...

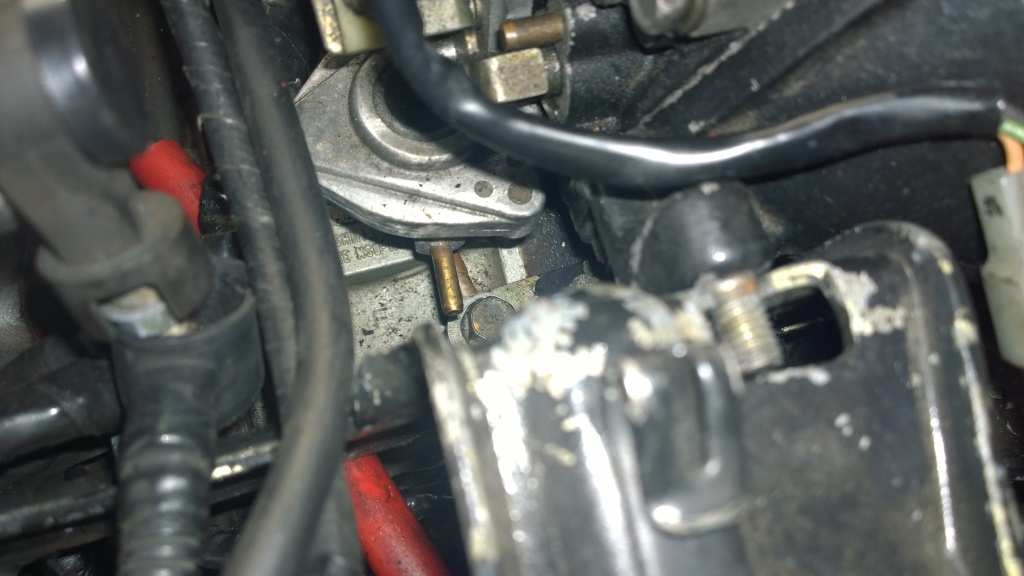

were the heck does a hose go to this and then to where? Rats nest was deleted, not by me and there is just this single thing that i see that is not hooked up to anything.

this is some kind of damper/actuator on the pulley side of the TB.



i also dont have that manifold thing on the thermo wax either.... does this mean i dont need to hook up anything to that damper? or do i still need a vacuum source for it?

Attached Thumbnails TB vacuum line, where should it go...-temporary_zps5791a6cb.jpg
