2nd Generation Specific 1986-1992 Discussion

Taking Off Tanny

Old 01-10-2004, 01:04 AM
  #1
Senior Member
Thread Starter

Join Date: Aug 2003
Location: Austin, TX
Posts: 512
Default

ok i got the manual off of teamfc3s and so far i have gotten everything it says to get off except the propellershaft the crossmember and the tranny... but is there any way to disconnect the propeller shaft with out having to take it all off?



in the diagram it shows it just slipping off or do i have to follow manuals way of taking the propeller shaft off?

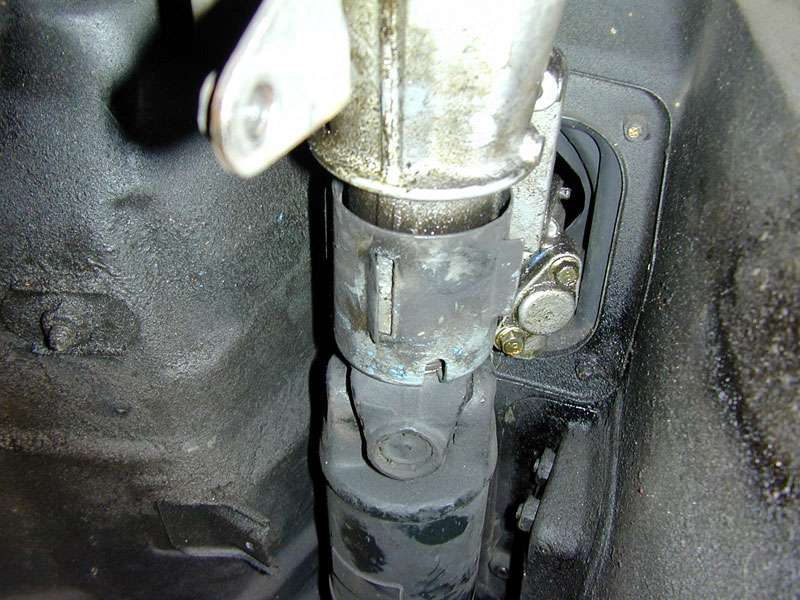

Attached Thumbnails Taking Off Tanny-dscn0059.jpg
Dakmis is offline
Old 01-10-2004, 01:05 AM
  #2
Senior Member
Thread Starter

Join Date: Aug 2003
Location: Austin, TX
Posts: 512
Default

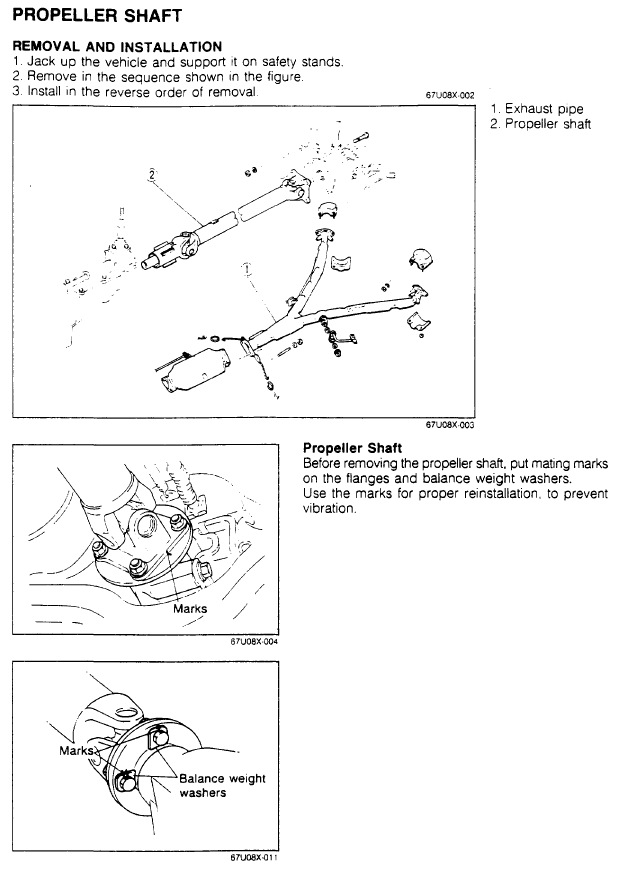

here is the manuals way
Attached Thumbnails Taking Off Tanny-4.jpg
Dakmis is offline
Old 01-10-2004, 01:08 AM
  #3
Administrator

Join Date: Jul 2001
Location: Stuart, FL
Posts: 24,412
Default

I am not sure I understand that question, but you need to remove the propeller shaft, just to make life easy, I always take the exhaust out back tot he mufflers. The propeller shaft is just 4 bolts on the diff, it isn't really a major removal process.
phinsup is offline
Old 01-10-2004, 01:12 AM
  #4
Senior Member
Thread Starter

Join Date: Aug 2003
Location: Austin, TX
Posts: 512
Default

that pretty much ansers my question, so more exaust removal tomarrow hopefuly i can get the tranny off tomarrow too
Dakmis is offline
Old 01-10-2004, 01:14 AM
  #5
Administrator

Join Date: Jul 2001
Location: Stuart, FL
Posts: 24,412
Default

You don't have to take it off, you can sneak everything by it, but you'll spend more time trying to do that then if you just removed it.
phinsup is offline
Old 01-10-2004, 01:16 AM
  #6
Senior Member
Thread Starter

Join Date: Aug 2003
Location: Austin, TX
Posts: 512
Default

i figured that much, why contort around it when u can pull it off?
Dakmis is offline
Old 01-10-2004, 01:22 AM
  #7
Administrator

Join Date: Jul 2001
Location: Stuart, FL
Posts: 24,412
Default

Yea, that and it usually winds up with the tranny sitting on the exhaust system which isn;'t too good for it.
phinsup is offline
Old 01-10-2004, 11:30 AM
  #8
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

you can prolly get away with just lowering the exhaust, but its more of a pain then just removing it
j9fd3s is offline
Old 01-10-2004, 11:59 AM
  #9
Senior Member

Join Date: Apr 2003
Location: Schofield Barracks, HI
Posts: 2,259
Default

is there a sensor on the tranny for reverse gear, so the reverse lights go on?



cause mine dont work...and i cant figure it out, bulbs are fine
FrestyleFC3S is offline
Old 01-10-2004, 03:50 PM
  #10
Senior Member

Join Date: Apr 2002
Location: IL
Posts: 2,930
Default

when you pull the prop shaft out of the trans it will leak oil so be prepared for that too.



I usually tie the prop shaft to the trans through the U joint and around the shifter housing so it can't slide out of the engine, then I unbolt the flange on the differential side and bring the prop shaft out with the trans, no oily mess under the car.
pengaru is offline
