2nd Generation Specific 1986-1992 Discussion

Stripped A Blown 6 Port From Joe

Old 05-04-2004, 11:11 PM
  #1
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

This is a mystery motor (to me). I wasn't told the mileage unless Kevin knows it. It's an S4 N/A 6 port block, with strong front compression and 0 on all faces on the rear rotor.



I don't have any pictures yet. As soon as I get the damn flywheel off I'll get the rear iron off and look at it.



I got it stripped right down to shortblock. Joe and Kevin gave it to me with the P/S and A/C still bolted on, all accessories (except alternator), everything. Manifolds and the like..



The coolant passages were clean! As clean as my motor, check my gallery for reference. I was thinking I was going to see alot of rust buildup or something since it was apparently sitting in a barn for a while. Nope. Clean as a whistle. Canadian water maybe?



Sitting with open manifolds too, no rags to block moisture or anything. Plug holes open. Turned over like a champ though. There was no rust buildup or surfaces starting to turn orange at all that I could see after I got everything off. Looked good!



Anyways, shined a light into the rear rotor. No apex seal on the first apex. Nothing. No remnants to be found even. Not cracked, or chunked apart, but gone entirely. Spin it a bit - a few dents from trying to compress a seal. Rather long marks as compared to other stuff I have seen. Next apex - No seal again. No remnants to be found either. More compressing seal marks on the face of the rotor. Last apex, no seal again. No remnants to be seen either.



I bet there is remnants where I can't see from the port. But that's alot of missing apex seal. But from looking through the port there is NO leftover seal to be found on any apex. Which is kinda wierd!



I'm curious about mileage of this motor and what happened when it lost compression.



KNOW ANYTHING KEVIN?! Ask Joe or buy him a computer or something..



Welp, anyone wanna buy the manifolds off this motor?
ColinRX7 is offline
Old 05-04-2004, 11:45 PM
  #2
Senior Member

Join Date: Apr 2004
Location: Kincardine, Ontario Canada yeah Canada bitches
Posts: 1,068
Default

the motor had 220000km's on it. looked alright. all i know is Colin keep that cack outta there
nismo convert is offline
Old 05-04-2004, 11:45 PM
  #3
Senior Member

Join Date: Jul 2002
Posts: 2,315
Default

PIX!
BigTurbo74 is offline
Old 05-04-2004, 11:47 PM
  #4
Senior Member

Join Date: Apr 2004
Location: Kincardine, Ontario Canada yeah Canada bitches
Posts: 1,068
Default

why need pics? go out side pop your hood and oogle. j/k yeah Colin eat some wheaties and get your chisel and a bigger hammer. hell if you have to heat it up
nismo convert is offline
Old 05-04-2004, 11:50 PM
  #5
Senior Member

Join Date: Jul 2002
Posts: 2,315
Default

get the biggest crowbar you can find, and start jerking the **** out of it.
BigTurbo74 is offline
Old 05-16-2004, 05:42 PM
  #6
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

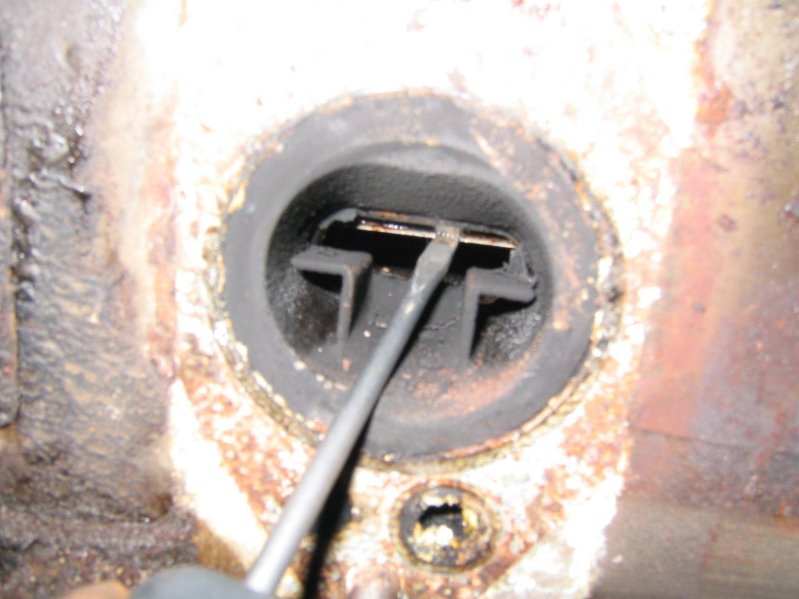

My screwdriver fitting in the apex seal slot. Nothing is there at all!



Every apex was like this.
Attached Thumbnails Stripped A Blown 6 Port From Joe-fuckd1.jpg
ColinRX7 is offline
Old 05-16-2004, 05:44 PM
  #7
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

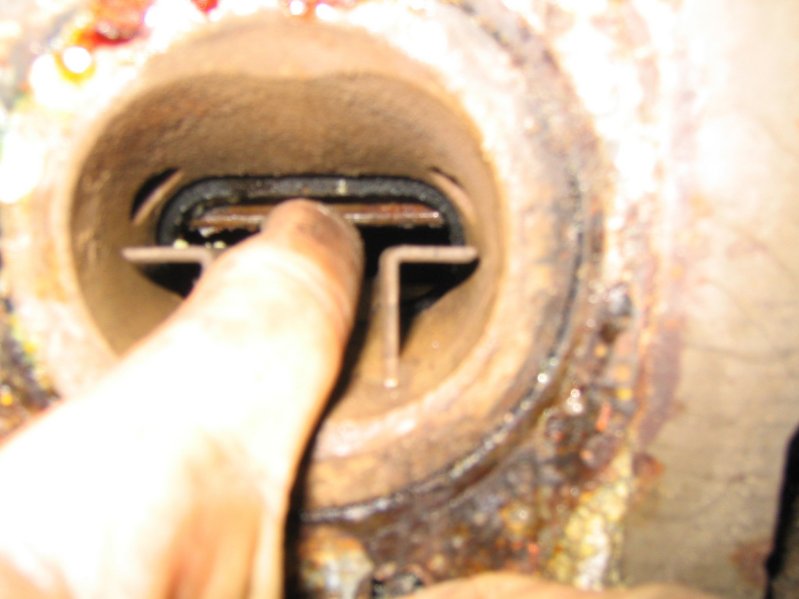

Front rotor. The seal was still nice and springy! Notice the cleaner burn marks around the port, not as black as the blown rear rotor.
Attached Thumbnails Stripped A Blown 6 Port From Joe-goodd1.jpg
ColinRX7 is offline
Old 05-16-2004, 05:44 PM
  #8
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

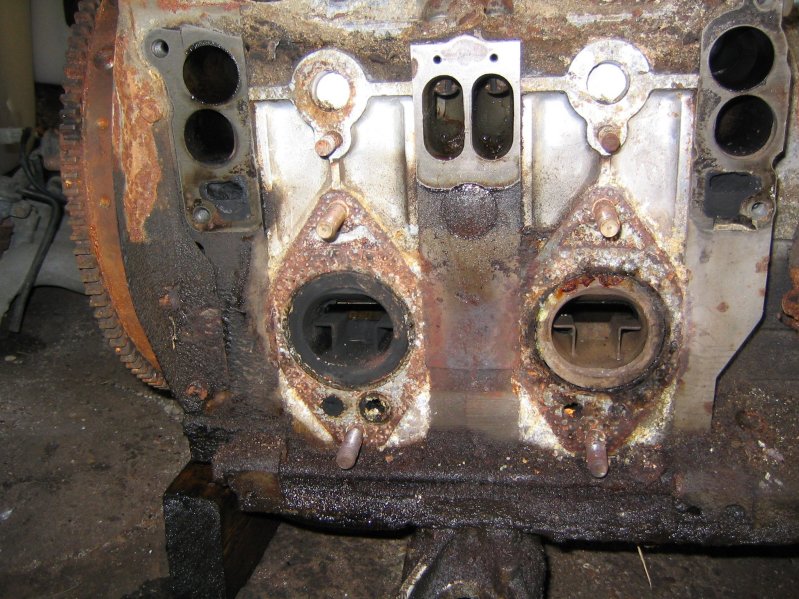

Whole view
Attached Thumbnails Stripped A Blown 6 Port From Joe-bigview1.jpg
ColinRX7 is offline
Old 05-16-2004, 05:46 PM
  #9
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

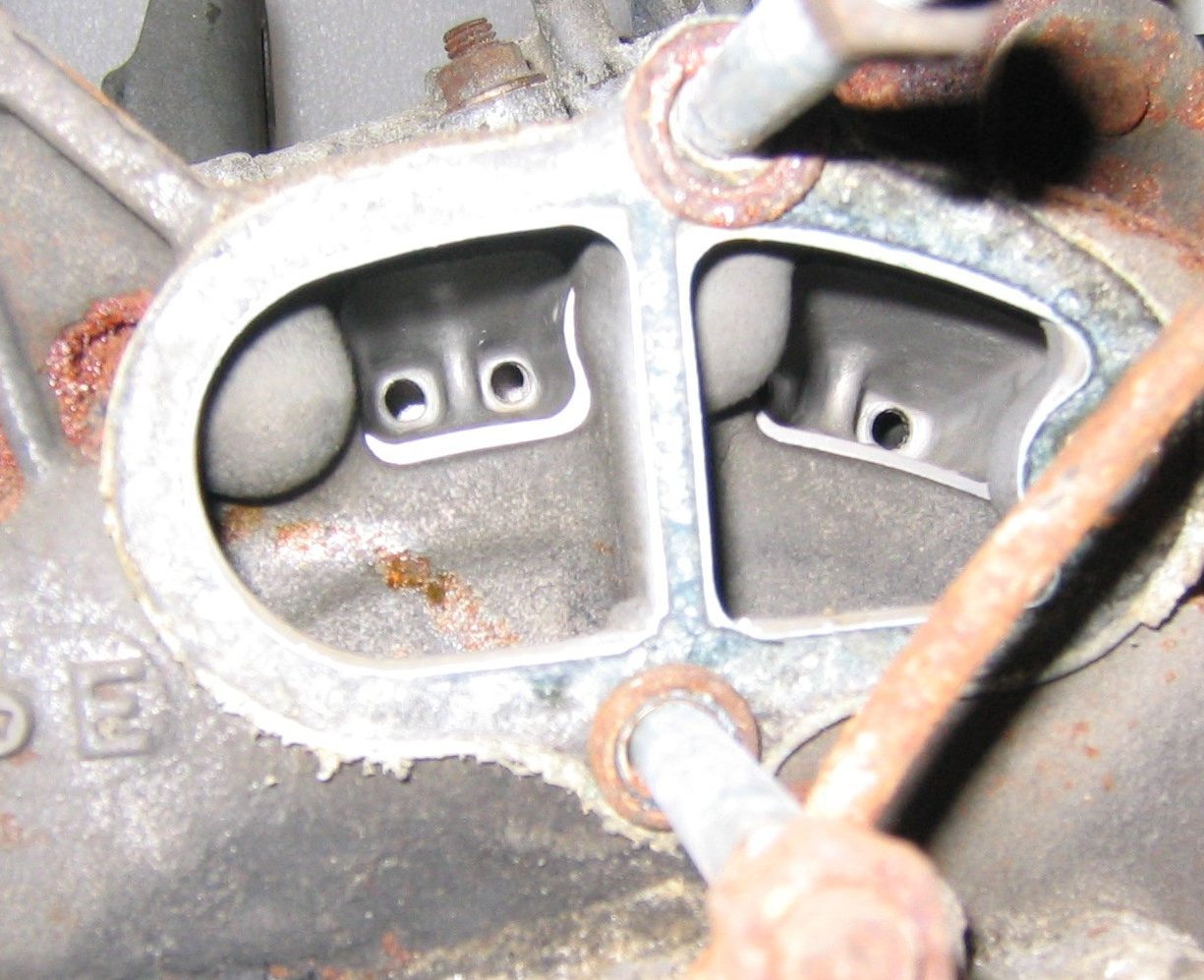

Damn, must be the Canadian water eh? Look how clean this water jacket is. Just like my motor!



The only dirty/rusty ones I have ever seen are pictures from you american builders..
Attached Thumbnails Stripped A Blown 6 Port From Joe-waterjack1.jpg
ColinRX7 is offline
Old 05-16-2004, 05:49 PM
  #10
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

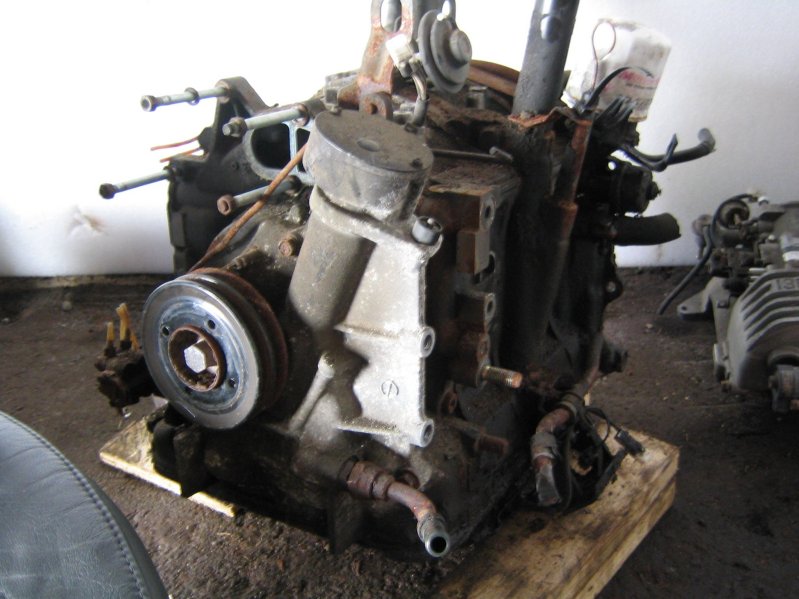

Whoops forgot to show this after I stripped it down. It had everything on it!
Attached Thumbnails Stripped A Blown 6 Port From Joe-afterstrip1.jpg
ColinRX7 is offline
