Racer X

I'm in the process of putting everything on my motor and noticed some little things missing on it.I think i might not have a BOV either.I know what the aftermarket ones look like but I need a pic of the stocker.Anyone got pics of it?



Thanks

Luis

Rotaryman88

I know I posted a pic of the stock BOV for somebody a while back, but it may have been lost in this new software update....I'll look around and repost the image if I can for you...



...as for the aftermarket ones, almost every BOV kit for the FC is on backorder right now from what I've seen, so you've got some time,lol...

Racer X

I just need the stocker pic for now.I'll change BOV's when I change turbo's.After I get this thing running and painted.

turborotor

Kind of looks like this,

http://www.supras.nl/view.php?page=modsSaabBOV.htm



you can use the BOV off a saab made by bosch.



C

Racer X

Its that little thing on the intake to turbo pipe then?

RX7Aggie

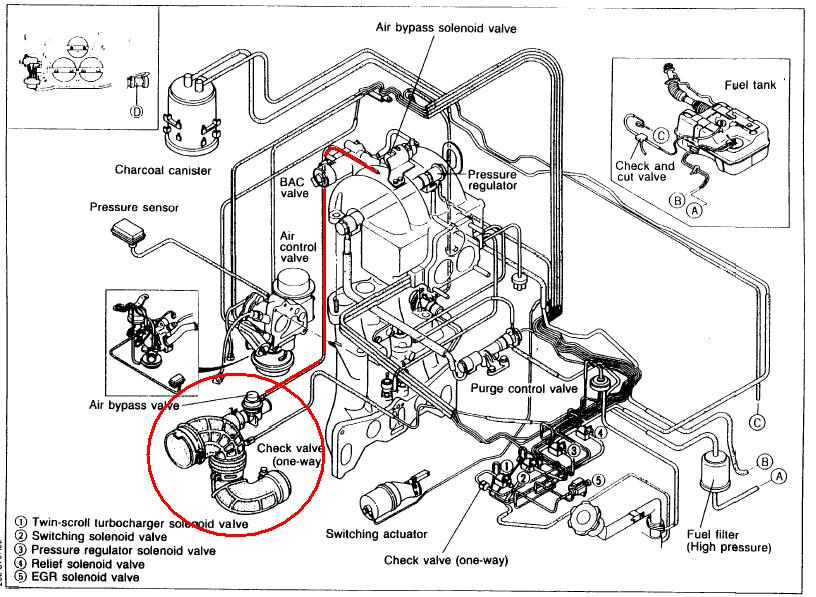

not really a BOV, i think they are referred to as a DD, more of a re-direction value. the one on my car is circled in green. it has a 1" hose running from the intake after the turbo going to the intercooler to the DD and the other end running from the value to the intake hose before the turbo. there is a small 1/8" rubber hose running from the intake manifold to the top of the DD/BOV. this hose actuates the valve under a vaccuum.



hope this helps, wish i had a better picture.

Racer X

That helps out a bit.So where do I run the hose then?I stripped the emissions off it and did the TB mod and took off the ACV,AWS and BAC Valves off it.



Thanks for the pic

RX7Aggie

my ACV and air pump are removed, so the ABV (air bypass valve) does not involve these. here are some pics from the FSM, hope they help.

RX7Aggie

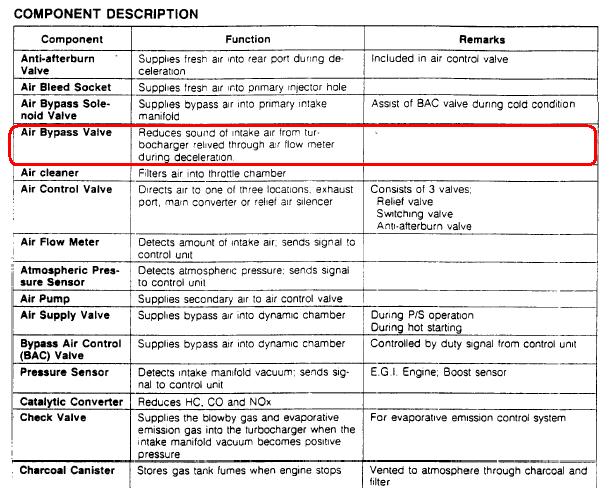

description

RX7Aggie

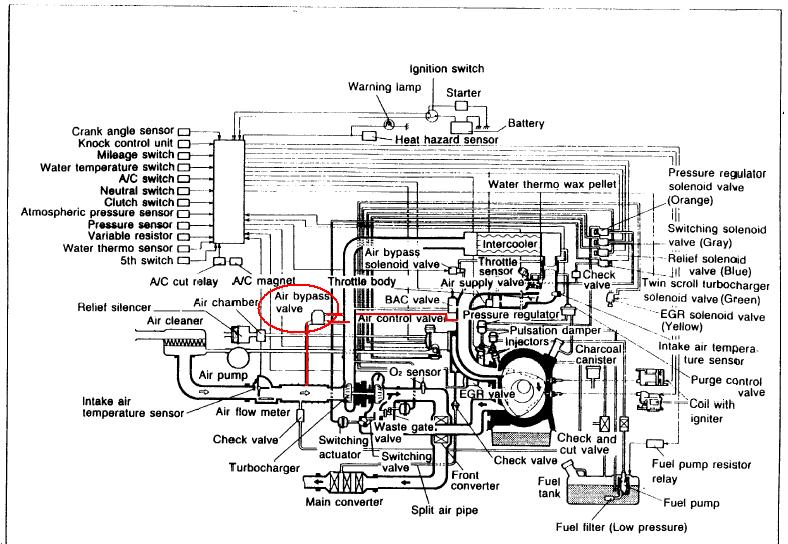

connecting diagram, which should indicate the general objects of where the hoses connect to
