2nd Generation Specific 1986-1992 Discussion

Once Again Just Shooting The ****

Old 01-30-2004, 11:11 AM
  #1
Senior Member
Thread Starter

Join Date: Aug 2002
Location: One hour north of chicago (Mundelein to be exact)
Posts: 811
Default

Since I can't actually work on or drive my car I'm just thinking of **** to do to it when I can. I'm thinking of moving the FMIC from right behind the bumper to right infront of the radiator like in the pic.



Although it looks nice in the front if I were to put it right in front of the radiator I'd save a lot on piping and I wouldn't have to risk damaging the IC because it goes down to just above the lowest part of the bumper.



Just collecting opinions at this point.
rmaiersg is offline
Old 01-30-2004, 11:12 AM
  #2
Senior Member
Thread Starter

Join Date: Aug 2002
Location: One hour north of chicago (Mundelein to be exact)
Posts: 811
Default

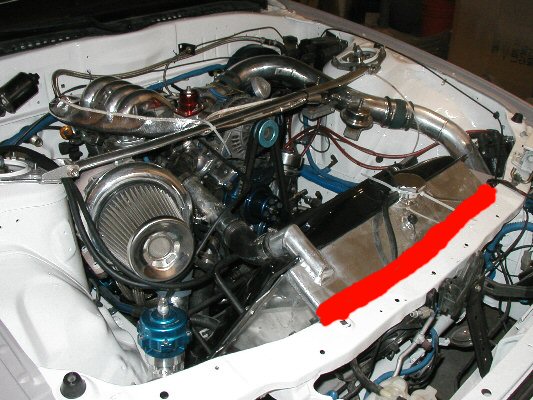

**** forgot the picture. It'll go where the red is by the way.
Attached Thumbnails Once Again Just Shooting The Shit-engine_bay_of_an_fc_with_ic_action.jpg
rmaiersg is offline
Old 01-30-2004, 11:27 AM
  #3
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

mines under the hood latch, i think its the perfect spot, cause you cant see it from the outside
j9fd3s is offline
Old 01-30-2004, 11:57 AM
  #4
Senior Member

Join Date: Mar 2003
Location: Seattle, WA
Posts: 105
Default

That's a good idea. There's my input
Redwood is offline
Old 01-30-2004, 12:08 PM
  #5
Senior Member
Thread Starter

Join Date: Aug 2002
Location: One hour north of chicago (Mundelein to be exact)
Posts: 811
Default

You think there will be any heat transfered to the IC from the radiator from that close? That's what I'm worried about.



Mine's too wide to fit under the hood latch so it'll have to go right infront of the rad.
rmaiersg is offline
Old 01-30-2004, 03:55 PM
  #6
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

oh that should be ok, it might heat soak a little at low speeds, but then you dont have the boost at low speeds either
j9fd3s is offline
Old 01-31-2004, 12:12 AM
  #7
Senior Member

Join Date: Dec 2002
Location: Wayne, NJ
Posts: 4,838
Default

how big is your IC? i have an NPR Large FMIC mounted in the spot j9 mentioned and it fits nicely with room on the sides if it wasnt for how to inlet/outlet was on the bottom being wider then everything else.









see http://www.niteshade.net/89t2/fmic for more pics of the setup. unless your IC is wider then your radiator it should fit in that area fine.



kevin.
teknics is offline
Old 01-31-2004, 01:45 AM
  #8
Senior Member

Join Date: Jun 2002
Location: WA
Posts: 1,312
Default

i thought about mounting my greddy vspec there.. but it was too big lol
sidewinderx7 is offline
Old 01-31-2004, 03:20 PM
  #9
Senior Member

Join Date: Dec 2002
Location: Wayne, NJ
Posts: 4,838
Default

Originally Posted by sidewinderx7' date='Jan 31 2004, 02:45 AM
i thought about mounting my greddy vspec there.. but it was too big lol
yea greddy is huge, you could notch the frame to make it fit



it's very stealthy only visible from a ways back from the car.



kevin.
teknics is offline
Old 01-31-2004, 04:40 PM
  #10
Senior Member
Thread Starter

Join Date: Aug 2002
Location: One hour north of chicago (Mundelein to be exact)
Posts: 811
Default

I don't have any more pictures but I had to cut a little on the frame to make it fit in the front. It will definitely not fit under the hood latch unless I do some major work. It's like 32" wide including the end tanks.



Moving the radiator backa tad and puting it there seems to be the best option other than where it is at right now.
rmaiersg is offline
