Need A Pic
10-15-2003, 04:55 PM
#1
Senior Member
Thread Starter
Join Date: Sep 2003
Location: south jersey...VINELAND
Posts: 343
hey i need someone to show me a pic of the acv valve...is it common for it to be removed....cuz the previous owner has already had the ac taken out and prolly some other things that i dont know about.... thanx
10-15-2003, 05:54 PM
#5
Senior Member
Join Date: Mar 2003
Location: Tampa
Posts: 582
It mainly depends on what year your car is... Example. If you have an 89+ you will have to retain the original airpump and ACV (air control valve)
ON 86-88 1/2 cars it can be removed once you have taken off your air pump and removed your catalytic converters.
-Markus

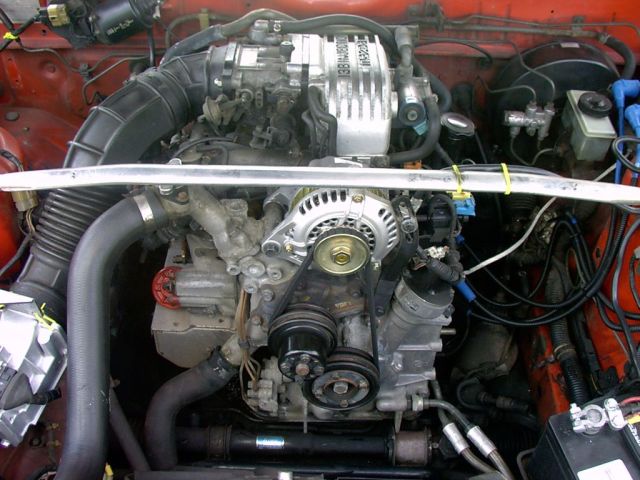

*-* look at photo, this is what an N/A engine should look like Plus or Minus a couple items IE: I still need to remove vacume spider and BAC valve, as well as get a good set of headers and complete the TB mod. Simplicity is key *-*
ON 86-88 1/2 cars it can be removed once you have taken off your air pump and removed your catalytic converters.
-Markus
*-* look at photo, this is what an N/A engine should look like Plus or Minus a couple items IE: I still need to remove vacume spider and BAC valve, as well as get a good set of headers and complete the TB mod. Simplicity is key *-*
10-15-2003, 06:11 PM
#6
Senior Member
Join Date: Mar 2003
Location: Tampa
Posts: 582
Oh sorry. Follow the link for the picture of an ACV... scroll down to bottem
*-* You are being redirected to Mazda Trix *-*
-Markus
"Good luck, Let us know" CHEERS!
*-* You are being redirected to Mazda Trix *-*
-Markus
"Good luck, Let us know" CHEERS!
10-16-2003, 06:54 PM
#7
Senior Member
Thread Starter
Join Date: Sep 2003
Location: south jersey...VINELAND
Posts: 343
went there but i dont really recognize it...prolly cuz its sooo new and not lookin like mine....since i cant find it there can ne one tell me where it would be....or maybe show an engine pic and point to it
10-16-2003, 10:20 PM
#10
Senior Member
Join Date: Mar 2003
Location: Tampa
Posts: 582
I'm sorry to correct you bruce, but the Air control Valve is NOT located near the BAC valve. The BAC is connected to the Intake plenum ... the air control valve is bolted to the Lower Intake manifold.. It rests alittle above your 5th and 6th port acctuator plungers... you really can't miss it. Look near your exhaust manifold. See those two plungers sitting at an angle? Look right in the middle of that. that is your ACV.
-markus
"Remove your BAC too" CHEERS!
-markus
"Remove your BAC too" CHEERS!
