2nd Generation Specific 1986-1992 Discussion

Low & High Impedance Injectors

Old 05-18-2004, 08:41 PM
  #1
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

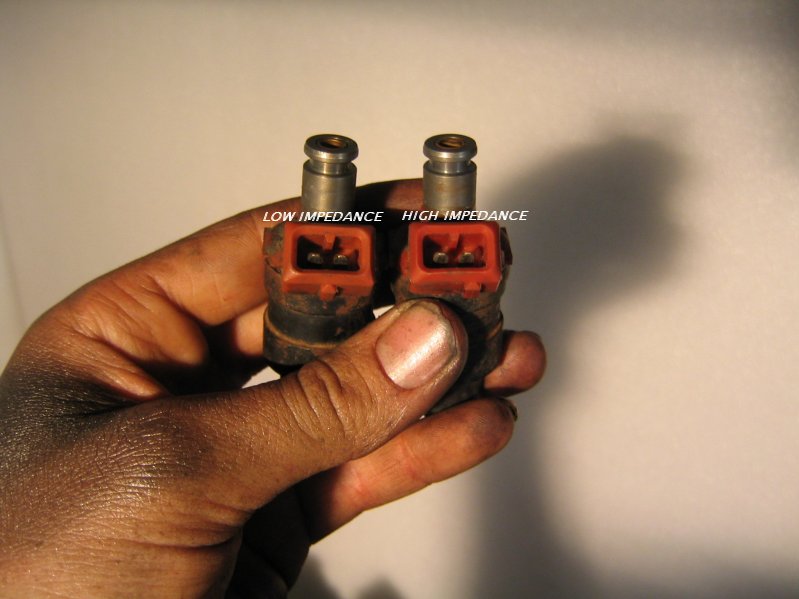

Pay attention to the tabs when you buy injectors. Subtle difference although they look the exact same!
Attached Thumbnails Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg

Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg

Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg   Low & High Impedance Injectors-identinj.jpg

ColinRX7 is offline
Old 05-18-2004, 08:46 PM
  #2
Senior Member

Join Date: Jul 2002
Posts: 2,315
Default

AH! he's got the reversed michael jackson disease!!!

heeh, or you can just look at the part number on the tab too
BigTurbo74 is offline
Old 05-18-2004, 08:49 PM
  #3
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

Numbers on the injectors' collar were the same! Barely legable though. I may be wrong but I was pretty sure they were the same.



And I was painting my GSL SE dizzy and got overspray on my hand..
ColinRX7 is offline
Old 05-18-2004, 09:02 PM
  #4
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

those arent the same color. the one on the right looks like an 88 t2, and the other one is an 86-87? na
j9fd3s is offline
Old 05-18-2004, 11:09 PM
  #5
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

Really? In person the connector collar is the same colour. The one of the right came from an 87.5 N/A.. Or maybe it's 88..



The one on the left is from my 86 N/A.
ColinRX7 is offline
Old 05-18-2004, 11:35 PM
  #6
Senior Member

Join Date: Jul 2002
Posts: 2,315
Default

i have pink connectors
BigTurbo74 is offline
Old 05-18-2004, 11:37 PM
  #7
Senior Member
Thread Starter

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

Both of these are a reddish burgundy colour..
ColinRX7 is offline
Old 05-18-2004, 11:39 PM
  #8
Senior Member

Join Date: Oct 2001
Location: Peoria, AZ
Posts: 10,906
Default

I had this happen to me. The greyish color top injectors are low imp 550cc, and the redish/tan are high imp 550cc for the t2s. Just check the injectors resistance with a mulimeter to be sure of their imp...
1Revvin7 is offline
Old 05-19-2004, 11:48 PM
  #9
Senior Member

Join Date: Sep 2002
Location: Vanderhoof,BC(Canada)
Posts: 5,542
Default

Originally Posted by 1Revvin7' date='May 18 2004, 08:39 PM
I had this happen to me. The greyish color top injectors are low imp 550cc, and the redish/tan are high imp 550cc for the t2s. Just check the injectors resistance with a mulimeter to be sure of their imp...
on a multimeter isn't the low impedance injectors like a couple of ohms?
Racer X is offline
Old 05-20-2004, 12:16 AM
  #10
Senior Member

Join Date: May 2002
Location: California
Posts: 22,466
Default

Originally Posted by Racer X' date='May 19 2004, 08:48 PM
on a multimeter isn't the low impedance injectors like a couple of ohms?
yeah 2-3ish high should be 12-15, these are give or take a couple ohms
j9fd3s is offline
