Jspec motor teardown...
07-21-2002, 04:03 PM
#1
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705
Ok, well I started to pull the motor apart and get a better idea of damage and what actually went out on the motor. Remember, I had no compression in the rear rotor and there was a bad oring letting coolant get through and burn up on the outside of the LIM. That is what I thought...

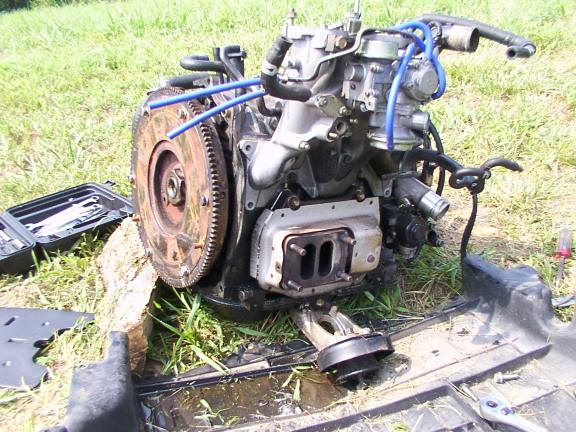

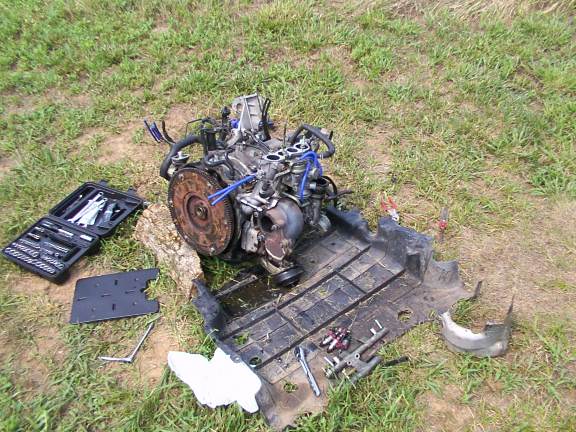

Ok, started by taking the clutch off becuase I didn't want it sitting outside. There is NO wear on the clutch yet, lol..only has about 10miles on it.
Ok, started by taking the clutch off becuase I didn't want it sitting outside. There is NO wear on the clutch yet, lol..only has about 10miles on it.
07-21-2002, 04:07 PM
#2
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705

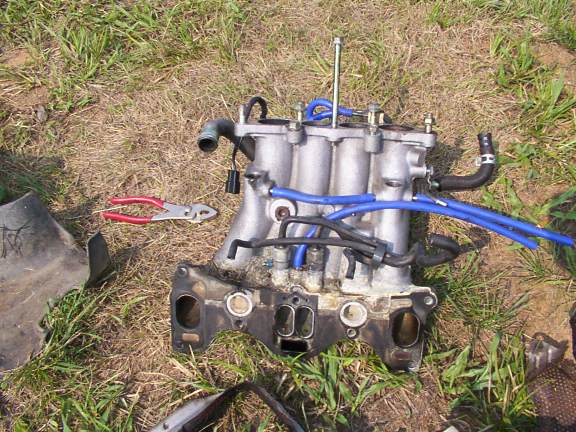

I also pulled the silicon vaccum spider off, along with the fuel rails and injectors. BTW, the secondary fuel rail along w/ all 4 injectors are for sale. The primary rail isn't for sale yet though. PM if your interested.
07-21-2002, 04:10 PM
#3
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705

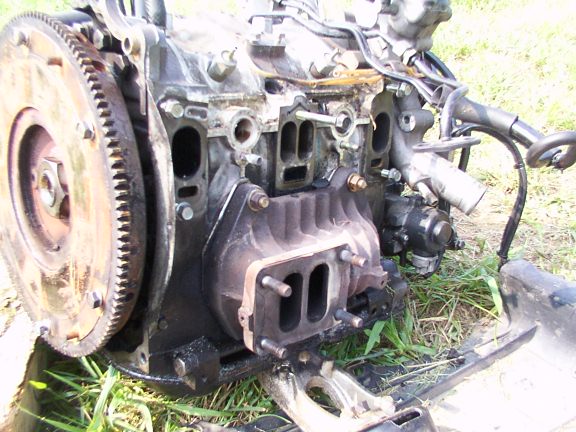

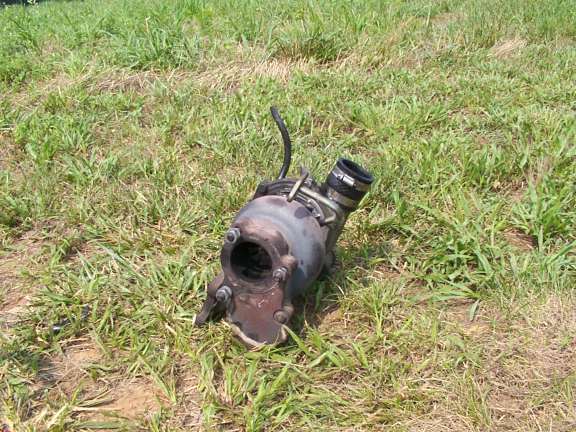

Next, pulled the turbo off and inspected for damage. I assumed that the apex seal broke off and flew through the turbo & manifold cuasing damage...but I didn't find any signs of damage on the manifold or the turbo...so of course, they are now for sale as well. PM if interested.
07-21-2002, 04:15 PM
#6
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705

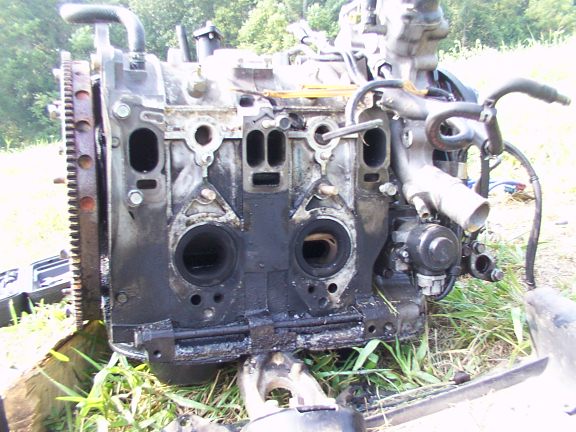

Shot of the bare side. Once removing the LIM, I discovered that it was not the oring that was busted, it was fine. It was actually a worn out broken gasket! Either way....its over with now.
07-21-2002, 04:19 PM
#7
Senior Member
Thread Starter
Join Date: Aug 2001
Location: Pimp'n ain't E-Z! But driving ur FD makes it easier!
Posts: 2,705
Last shot for today, I need an impact to continue. I was able to spin the rear rotor around...I counted, one..two...three APEX seals...BUT one of the APEX seals was cracked and missing a piece, so this caused my no compression...This is actually a good sign, this means that the Apex didnt break off and fly out the exhaust cuasing further damage...so this motor may be repairable, but I wont be sure until I've got it all apart. I did get the waterpump off too...but no pics, lol. I'm beginning to get some closure
07-21-2002, 05:13 PM
#8
Senior Member
Join Date: Nov 2001
Location: Bay Area, CA
Posts: 7,316
Originally Posted by Rotaryman88' date='Jul 21 2002, 07:19 PM
Last shot for today, I need an impact to continue. I was able to spin the rear rotor around...I counted, one..two...three APEX seals...BUT one of the APEX seals was cracked and missing a piece, so this caused my no compression...This is actually a good sign, this means that the Apex didnt break off and fly out the exhaust cuasing further damage...so this motor may be repairable, but I wont be sure until I've got it all apart. I did get the waterpump off too...but no pics, lol. I'm beginning to get some closure
07-21-2002, 11:02 PM
#9
Super Moderator
Join Date: Jul 2001
Location: NJ
Posts: 17,839
Originally Posted by 13BAce' date='Jul 21 2002, 06:13 PM
[quote name='Rotaryman88' date='Jul 21 2002, 07:19 PM']Last shot for today, I need an impact to continue. I was able to spin the rear rotor around...I counted, one..two...three APEX seals...BUT one of the APEX seals was cracked and missing a piece, so this caused my no compression...This is actually a good sign, this means that the Apex didnt break off and fly out the exhaust cuasing further damage...so this motor may be repairable, but I wont be sure until I've got it all apart. I did get the waterpump off too...but no pics, lol. I'm beginning to get some closure
i know how to tear down engines in my driveway too
