so i did the tb mod yesterday and today after a dremel bit shopping spree (all my old metal bits were shot, so i spent $48 on new pieces) i began. i got a couple pics.



here's the only one i took of it as a stock TB as far as porting goes, its a reference pic to see what ive done.







now here's a few pics of whats left:







and another:







and one more for good measure:







that was all done with a barrel cutting bit, next is the ball cutting bit, then a 60 grit sand drum, then a 120 grit sand drum, and finally an abrasive bit to polish it, then probably some compound and a felt wheel to completely polish the biznitchshablamzoid.



kevin.
teknics is offline
Old 01-16-2004, 09:48 PM
  #2
Senior Member

Join Date: Apr 2002
Location: IL
Posts: 2,930
Default

looking pretty good, glad to see you took this up yourself. Looking forward to seeing the final result.
pengaru is offline
Old 01-16-2004, 09:49 PM
  #3
Senior Member
Thread Starter

Join Date: Dec 2002
Location: Wayne, NJ
Posts: 4,838
Default

also i covered the holes with .5" core/freeze plugs set in place with a permanent sealer on them, they fit the .51" opening perfectly snug and will not budge.



i tapped them into the shoulder area that holds the brass pieces for the flapper bar from entering the tb then ground around the shoulder area, i'll be filling with por15 into a dimple shape and then regrinding it down smooth.



kevin.
teknics is offline
Old 01-16-2004, 10:13 PM
  #4
Senior Member

Join Date: Sep 2003
Location: Stuart, FL
Posts: 544
Default

Damn man...**** looks nice! Itll be suckin air like a **** now. When are you planning on putting this on? I wanna know how it'll run...
i.didnt.do.it is offline
Old 01-16-2004, 11:07 PM
  #5
Senior Member
Thread Starter

Join Date: Dec 2002
Location: Wayne, NJ
Posts: 4,838
Default

Originally Posted by pengaru' date='Jan 16 2004, 10:48 PM
looking pretty good, glad to see you took this up yourself. Looking forward to seeing the final result.
honestly i HATE paying for any to do labor jobs for me, if i didnt do it myself i wouldnt have it done, its just how i am, some people prefer "the pros" do it.



i switched to the round cutting bit after those pics and damn did it do a good job, switched back to drum cutting bit and shaped everything nicely.



then for kicks i threw on the 80 grit flapper sanding bit, rounded the corners really nicely definitely gonna make airflow smooth.



one question, the edges and the point, should i make them knife edged or slightly smoothed over? i figure slightly smoothed leaves less chance of turbulence but not as much "aerodynamics".



opinions?



kevin.
teknics is offline
Old 01-17-2004, 01:01 PM
  #6
Senior Member

Join Date: May 2003
Posts: 1,784
Default

I just did the same thing. Though i used 60 grit sand drums the entire time. That took forever they kept wearing out.
Dramon_Killer is offline
Old 01-17-2004, 01:28 PM
  #7
Senior Member

Join Date: Dec 2003
Location: Corvallis, Oregon
Posts: 419
Default

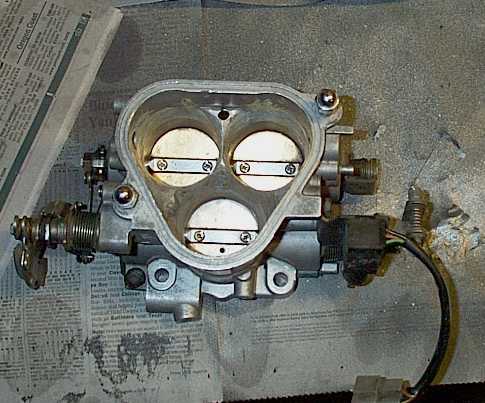

Looking good, Kevin. Here is some porting I did on my NA throttle body.
Attached Thumbnails How My Tb Is Looking-port54.jpg
Fluid Dynamics is offline
Old 01-17-2004, 03:46 PM
  #8
Super Moderator

Join Date: Feb 2002
Location: Amityville, New York
Posts: 12,289
Default

Originally Posted by Dramon_Killer' date='Jan 17 2004, 02:01 PM
I just did the same thing. Though i used 60 grit sand drums the entire time. That took forever they kept wearing out.
why not use 1 carbide bit instead?
Rob x-7 is offline
Old 01-17-2004, 05:15 PM
  #9
Senior Member

Join Date: Oct 2003
Location: Canada
Posts: 3,502
Default

Looks good!
ColinRX7 is offline
Old 01-17-2004, 05:50 PM
  #10
Senior Member

Join Date: May 2003
Posts: 1,784
Default

Originally Posted by Rob x-7' date='Jan 17 2004, 01:46 PM
why not use 1 carbide bit instead?
Good question. ACtually i've never even heard of those before.
Dramon_Killer is offline
