2nd Generation Specific 1986-1992 Discussion

Fd Manifolds On An Fc

Old 03-08-2004, 11:46 PM
  #1
Senior Member
Thread Starter

Join Date: Jun 2003
Location: Culpeper, VA
Posts: 572
Default

I tried a search but came up with nothing. What exactally needs to be done
roadkill669 is offline
Old 03-08-2004, 11:50 PM
  #2
Senior Member

Join Date: Jan 2003
Location: union, new jersey
Posts: 8,079
Default

ask thecamel
FikseRxSeven is offline
Old 03-09-2004, 12:00 AM
  #3
Junior Member

Join Date: Feb 2003
Posts: 9
Default

bdls is offline
Old 03-09-2004, 12:15 AM
  #4
Senior Member
Thread Starter

Join Date: Jun 2003
Location: Culpeper, VA
Posts: 572
Default

Excellent



Thanks
roadkill669 is offline
Old 03-09-2004, 05:00 AM
  #5
Senior Member

Join Date: May 2003
Location: Dover DE
Posts: 989
Default

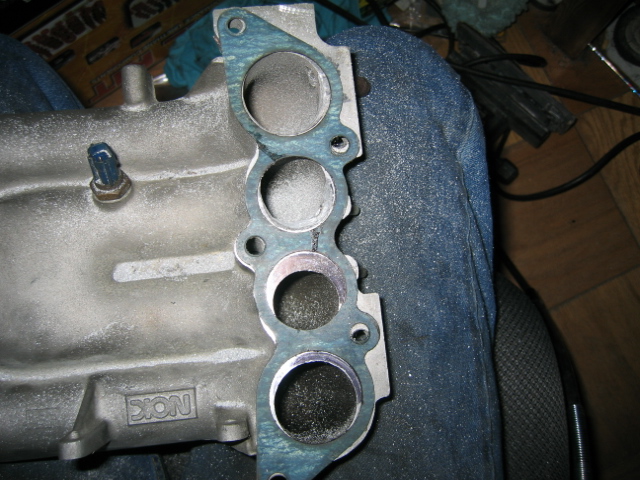

I am using a S5 LIM from a JDM motor so there may be small differences. But here are a few pics to see the porting and hole modifications I did.
Attached Thumbnails Fd Manifolds On An Fc-img_0424.jpg
TheCamel is offline
Old 03-09-2004, 05:01 AM
  #6
Senior Member

Join Date: May 2003
Location: Dover DE
Posts: 989
Default

without gasket
TheCamel is offline
Old 03-09-2004, 05:03 AM
  #7
Senior Member

Join Date: May 2003
Location: Dover DE
Posts: 989
Default

Then you just widen the holes on the end bolt holes to line up the manifold, using the center bolt hole as a guide, took me about 20 mins with the dremel. But I take my time. and these pics are not finished, I am working on the polishing of the manifold now and will finish port the UIM when done.
TheCamel is offline
Old 03-09-2004, 10:38 AM
  #8
Senior Member

Join Date: Jun 2003
Location: Chicago
Posts: 226
Default

It kinda looks like you might have a problem with coming to close to the edge, opposite that center bolt. Can't really tell from the picture though.
rx7_re is offline
Old 03-09-2004, 11:47 AM
  #9
Senior Member
Thread Starter

Join Date: Jun 2003
Location: Culpeper, VA
Posts: 572
Default

It does look a little too close for comfort.



What about a S4 manifold. Anybody got pics of that
roadkill669 is offline
Old 03-09-2004, 12:34 PM
  #10
Senior Member
Thread Starter

Join Date: Jun 2003
Location: Culpeper, VA
Posts: 572
Default

Just thought of another thing



What about the LIM? What are the differences between the FD and FC?
roadkill669 is offline
