20B Forum This forum is for all things pertaining to a 20B installation, modification, ideas, anything you can think of as long it has to do with a 20B

Dragons Making Much Progress...

Thread Tools

Search this Thread

Old Sep 8, 2003 | 01:55 PM
  #51
Dragon's Avatar
Thread Starter
Senior Member

Joined: Sep 2002
Posts: 2,550
Default

#6

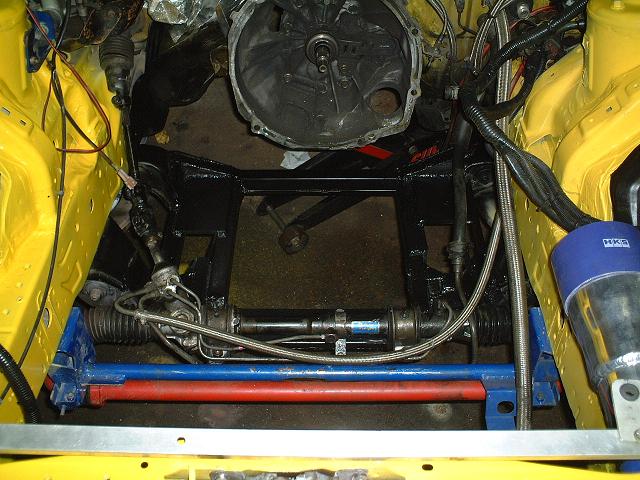

Attached Thumbnails Dragons Making Much Progress...-sub_frame.jpg
Old Sep 8, 2003 | 01:56 PM
  #52
Dragon's Avatar
Thread Starter
Senior Member

Joined: Sep 2002
Posts: 2,550
Default

#7

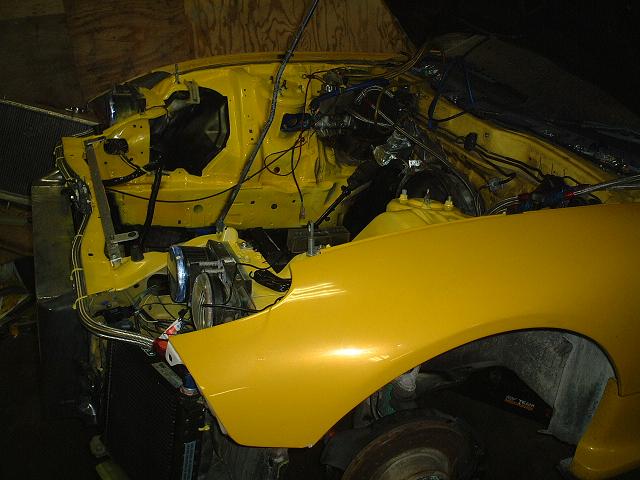

Attached Thumbnails Dragons Making Much Progress...-front_end.jpg
Old Sep 8, 2003 | 02:19 PM
  #53
vosko's Avatar
Super Moderator

Joined: Jul 2001
Posts: 17,839
From: NJ
Default

now for the real question. that subframe will only work a RHD car right ?
Old Sep 8, 2003 | 02:22 PM
  #54
Dragon's Avatar
Thread Starter
Senior Member

Joined: Sep 2002
Posts: 2,550
Default

Yep, but I could easily modify it for when I decide to eventually move back to the USA and put it in a RHD FD.. I could also easily make a subframe like the others that are sold right now, but I wanted mine to be much stronger, theirs all look pretty wussy...
Old Sep 9, 2003 | 07:04 PM
  #55
DuMaurier 7's Avatar
Senior Member

Joined: Mar 2003
Posts: 410
Default

Do you also use the stock mounting points (with the REW backplate) along with the side mounts ?.
Old Sep 10, 2003 | 01:10 AM
  #56
Dragon's Avatar
Thread Starter
Senior Member

Joined: Sep 2002
Posts: 2,550
Default

I decided to use the Cosmo 20B RE back plate and the stock Cosmo mount brackets and cut a big chunk of aluminum to fill the gap and replace the stock rubber mount to create a completely solid mount. I was going to mod the FD REW back plate and use the stock FD mounts, but with the tork and HP I'm going for I was worried about possibly breaking off a chunk of the FD rear plate where the motor mounts bolt up on a hard launch.
Old Sep 10, 2003 | 09:35 AM
  #57
jspecracer7's Avatar
Senior Member

Joined: May 2002
Posts: 4,928
From: Okinawa, Japan
Default

done yet?
Old Sep 10, 2003 | 11:07 AM
  #58
SomeGuy_sg's Avatar
Senior Member

Joined: Jul 2003
Posts: 116
Default

Originally Posted by Dragon' date='Sep 9 2003, 10:10 PM
I decided to use the Cosmo 20B RE back plate and the stock Cosmo mount brackets and cut a big chunk of aluminum to fill the gap and replace the stock rubber mount to create a completely solid mount. I was going to mod the FD REW back plate and use the stock FD mounts, but with the tork and HP I'm going for I was worried about possibly breaking off a chunk of the FD rear plate where the motor mounts bolt up on a hard launch.
How much does the subframe cost for a RHD FD?
Old Sep 10, 2003 | 11:23 AM
  #59
Dragon's Avatar
Thread Starter
Senior Member

Joined: Sep 2002
Posts: 2,550
Default

Originally Posted by SomeGuy_sg' date='Sep 10 2003, 08:07 AM
How much does the subframe cost for a RHD FD?
I made my own.. so about $40 and about 40 hrs labor..
Old Sep 10, 2003 | 01:19 PM
  #60
j9fd3s's Avatar
Senior Member

Joined: May 2002
Posts: 22,465
From: California
Default

Originally Posted by Dragon' date='Sep 10 2003, 08:23 AM
I made my own.. so about $40 and about 40 hrs labor..
so thats $4040



mike
