Dragons Making Much Progress...

Reply Subscribe

Thread Tools

Search this Thread

09-02-2003, 02:05 PM

Dragon

Senior Member

Thread Starter

Join Date: Sep 2002

Posts: 2,550

I finally knocked out all the customers cars and got around to being able to work on my own car..

So here are some pics of my mock 20B block all mounted and in my car so I can fabricate everything to fit before I drop in my other engine..

09-02-2003, 02:06 PM

banzaitoyota

Super Moderator

Join Date: Jul 2002

Location: My BIG ol TURBO-DIESEL

Posts: 5,181

Got light?

09-02-2003, 02:06 PM

75 Repu

Senior Member

Join Date: Aug 2002

Location: Mike is a Liar!

Posts: 4,848

Damn.. That looks nice..

09-02-2003, 02:07 PM

Dragon

Senior Member

Thread Starter

Join Date: Sep 2002

Posts: 2,550

Drivers side engine mount

09-02-2003, 02:08 PM

Dragon

Senior Member

Thread Starter

Join Date: Sep 2002

Posts: 2,550

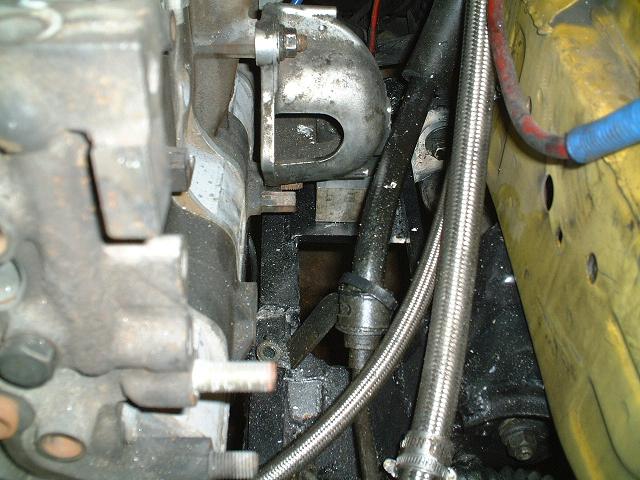

Passenger side engine mount

Attached Thumbnails

Dragons Making Much Progress...-pass_mount.jpg

09-02-2003, 02:10 PM

Dragon

Senior Member

Thread Starter

Join Date: Sep 2002

Posts: 2,550

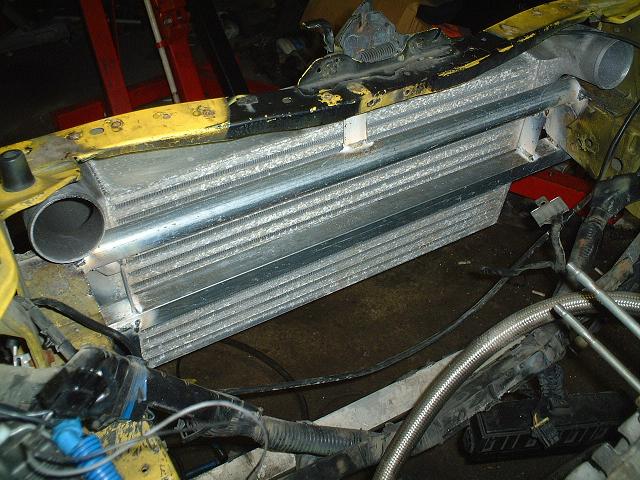

I cut out most of the core support and welded back in reinforcment so that I can mount the intercooler where I want it and welded all the intercooler mounts to the reinforcments..

Attached Thumbnails

Dragons Making Much Progress...-new_core_support.jpg

09-02-2003, 02:11 PM

Dragon

Senior Member

Thread Starter

Join Date: Sep 2002

Posts: 2,550

anouther pic of the front

09-02-2003, 02:14 PM

Dragon

Senior Member

Thread Starter

Join Date: Sep 2002

Posts: 2,550

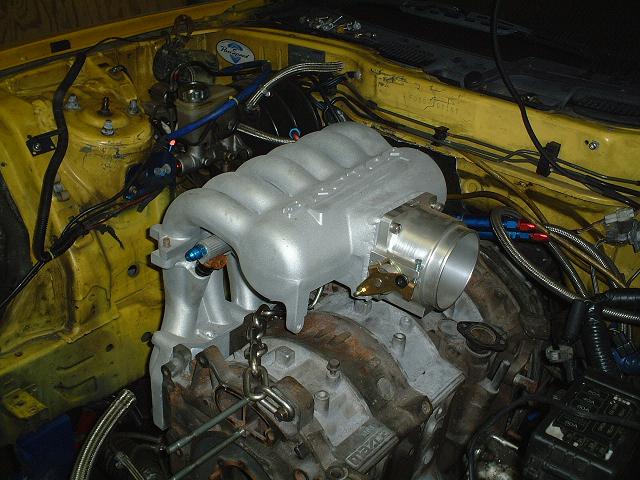

and my sexy modified intake manifold with the 95mm Holly Ford 5.0 throttle body.. I'll be mounting the 25 and 34 Row Setrab oil coolers and making the intercooler pipe to the throttle body on Wednesday.. lol.. I'll just keep adding pic's to this thread..

Attached Thumbnails
