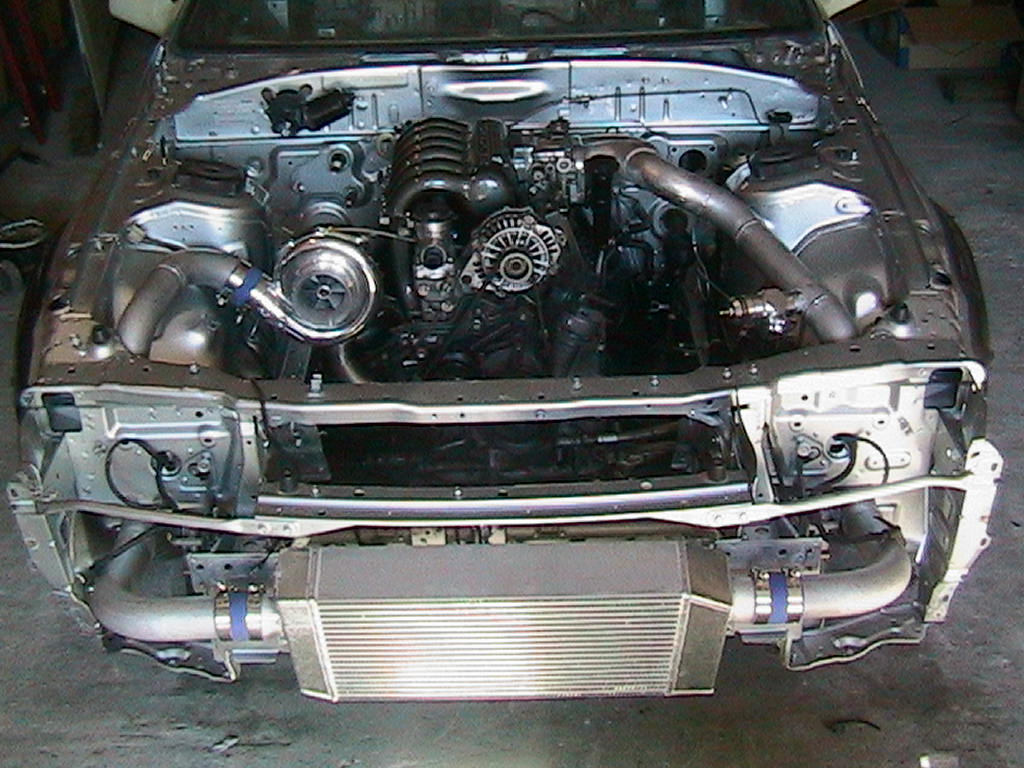

Here is what the engine bay looked like a little while ago. Since then I've installed the fenders, hood, and bumper. Also almost all of the interior is back in the car.



UsfDr



Damn, that's *******!



I can't believe how long those ic pipes are. Is there any way to shorten them? Can you mount the core behind rather than in front of the cross member, or will it interfer with the space needed for the radiator?



-Chris



Yeah, it was a chore trying to figure out how to get the radiator and the intercooler in that tight space. I also wanted to leavesome room behind the radiator for an A/C condensor in the future. The intercooler is simply too big to fit anywhere else besides where its at now.



UsfDr



on an fc theres really no way around it. it doesnt seem to make a big difference anyways



just one turbosx rfl bov?

would that be enought for that trubo?

just wondering...



Well it can hold at up to 25psi on a regular system. My system will have much denser air at the same psi however I'm only going to be at about 10psi. Hope that answers your question. If not just know that I'm not even coming close to maxing out my turbo or the bov.



Thanks,

UsfDr



Here are some more pictures sorry about the low lighting.



UsfDr

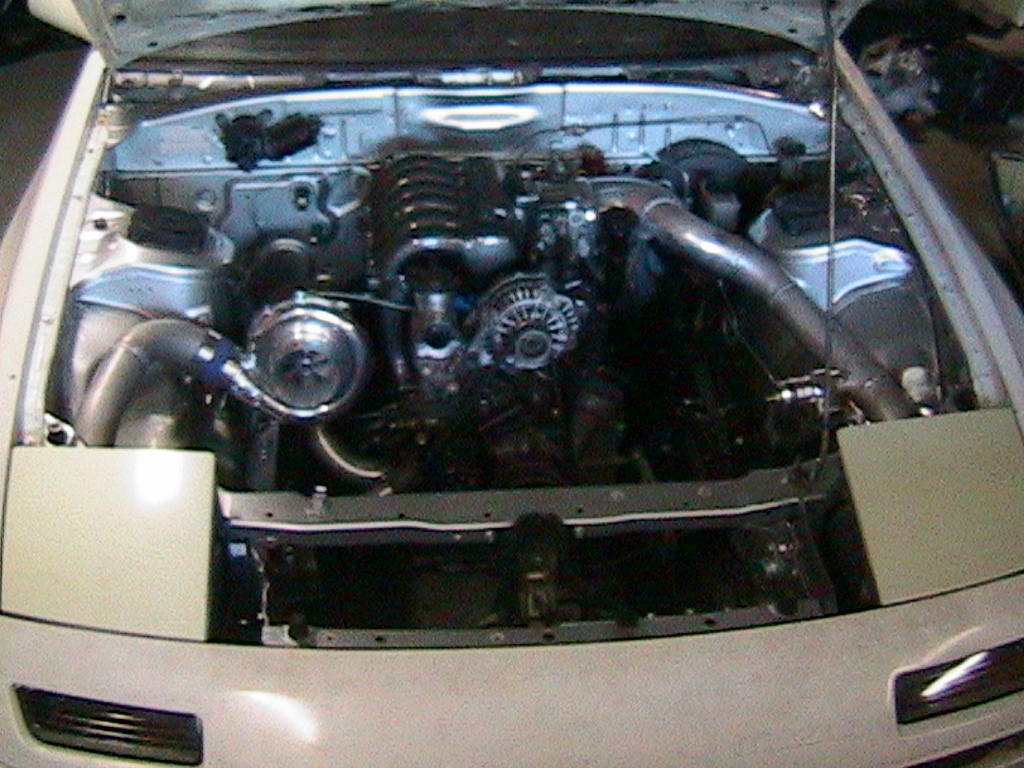

Engine bay



I cant wait to get this thing painted silver. It will look so much nicer.
