James McCarthy

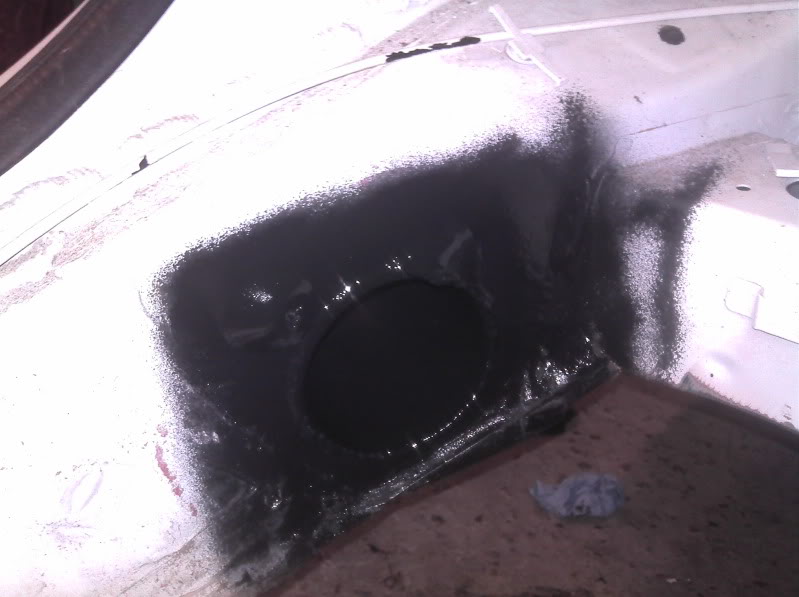

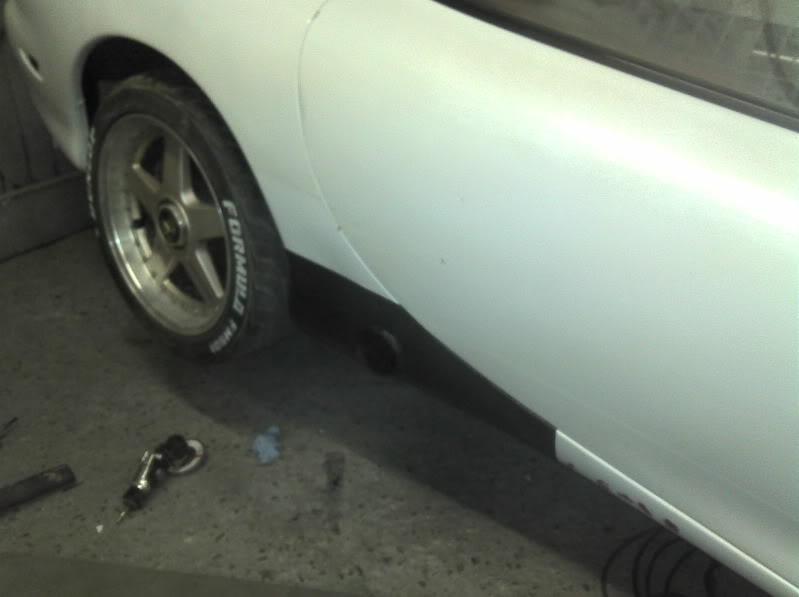

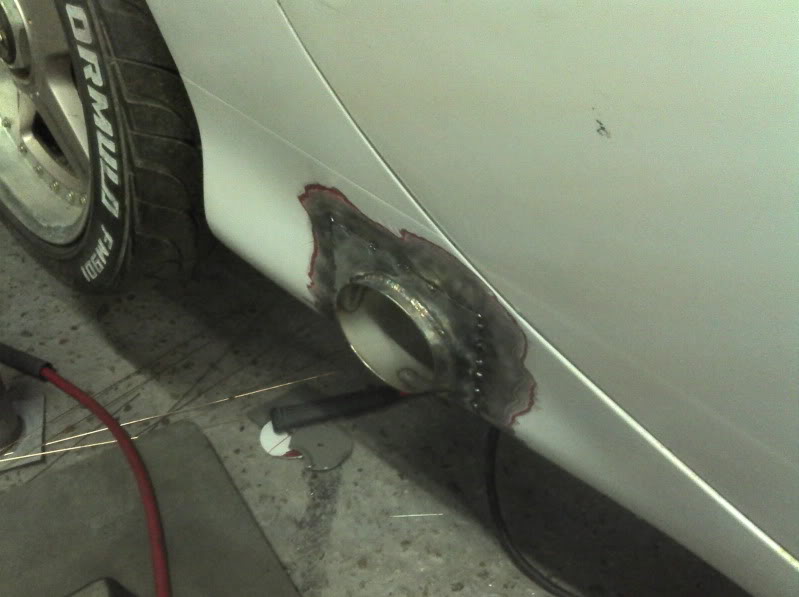

In the mean time whilst waiting for some panels to dry in the oven thought i'd do a couple of bits on the old 20B beast to get the rear of the exhaust set up closer to being finished. The holes cut both sides now. Tunnels now put in and welded up.

Tacked in:

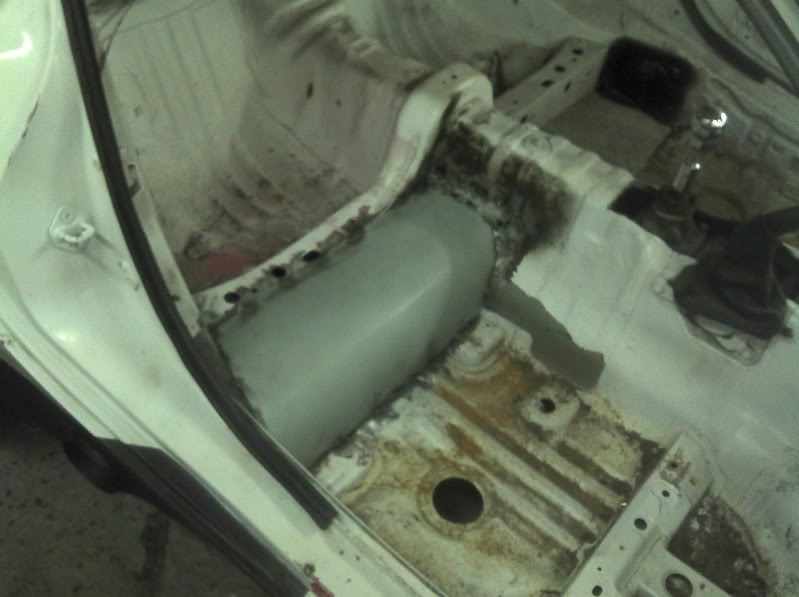

Inside the car:

James McCarthy

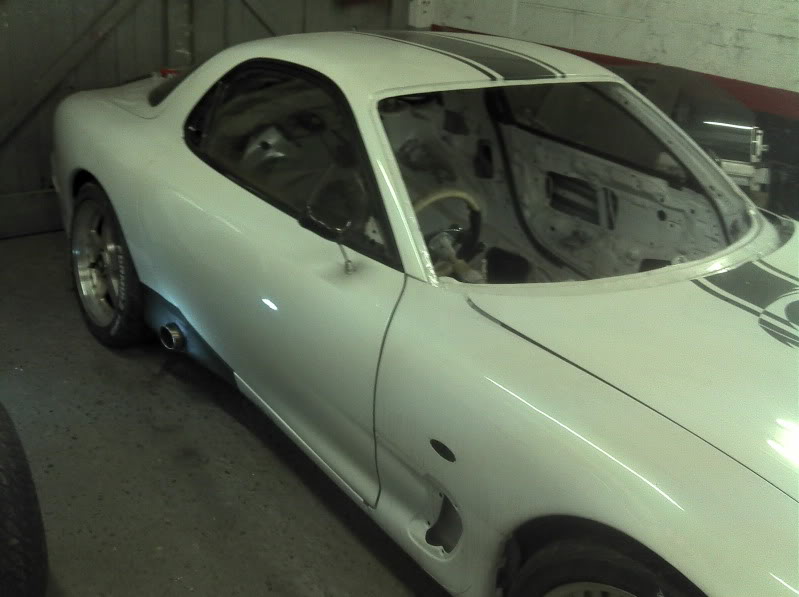

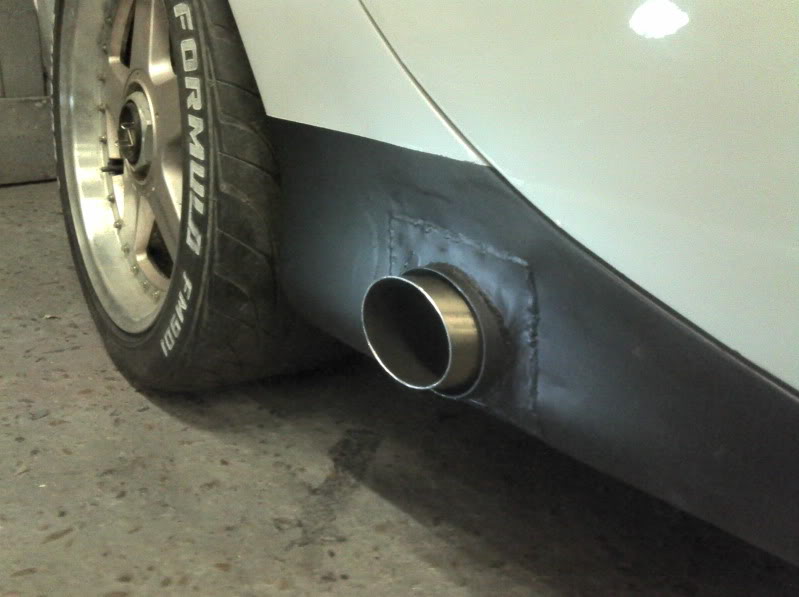

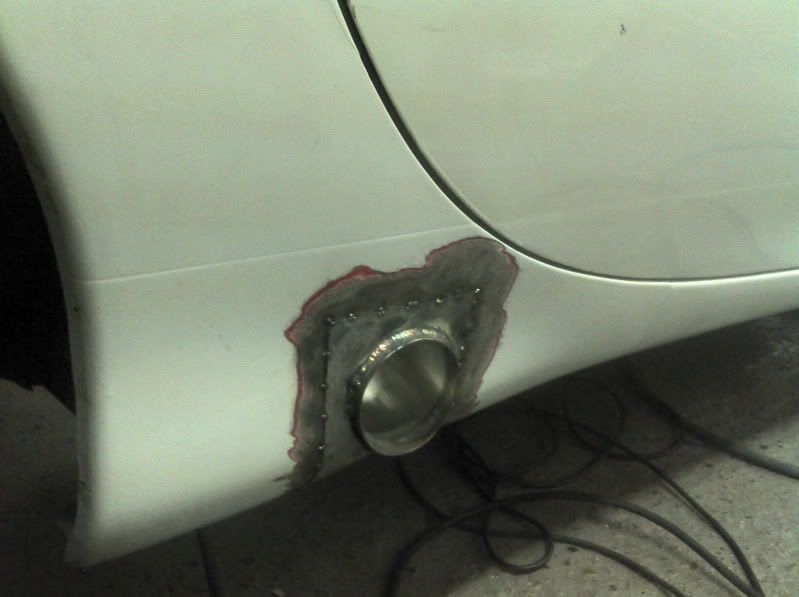

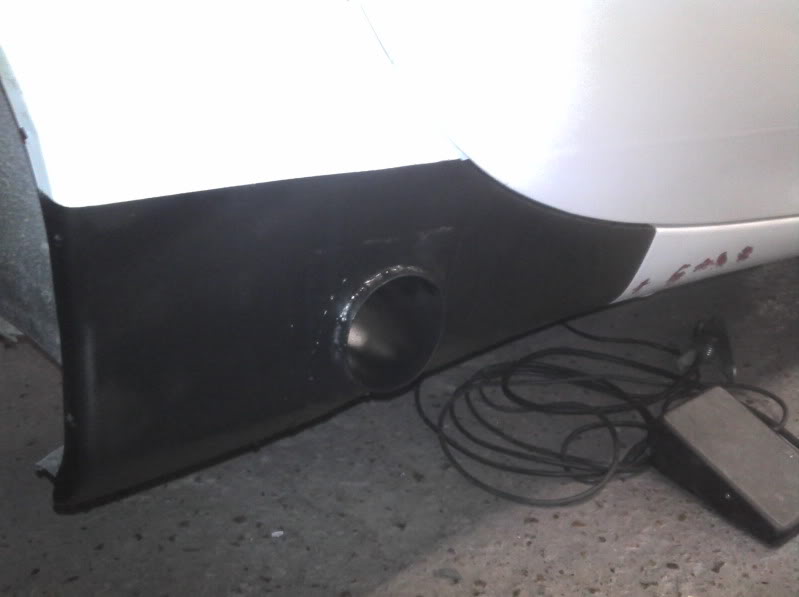

Wacked a dummy in there for now so you get a good idea of what its going to lool like. I can build the final part of the exhaust until the wide arch kit is built up so i know what length the tips need to be.

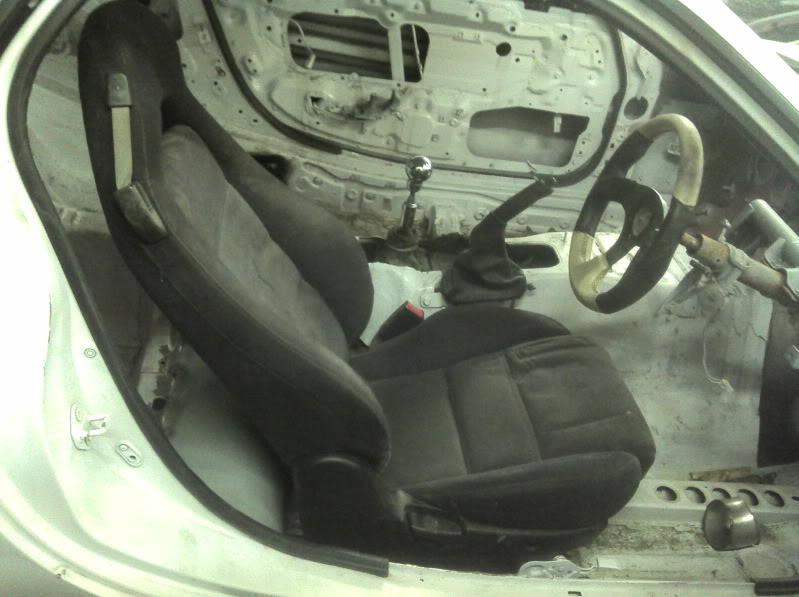

some of the inside and one with the stock seat for the non belivers on the space issue

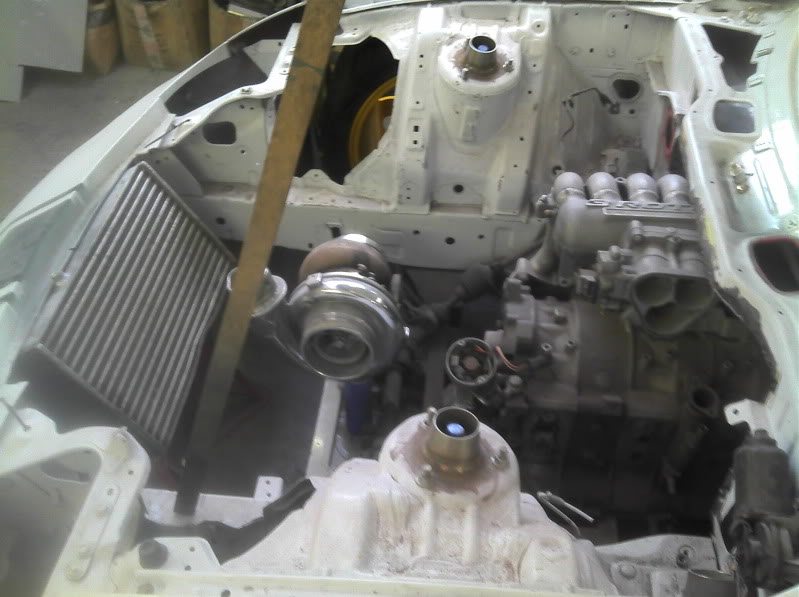

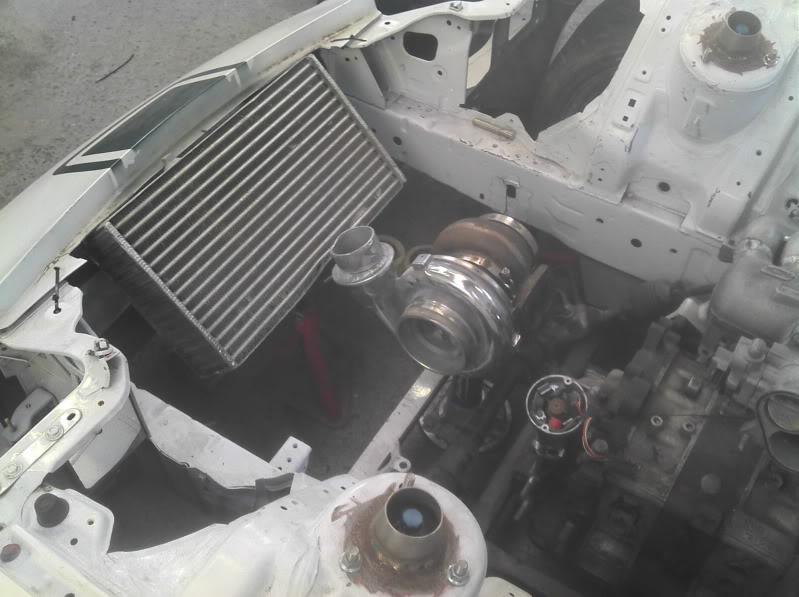

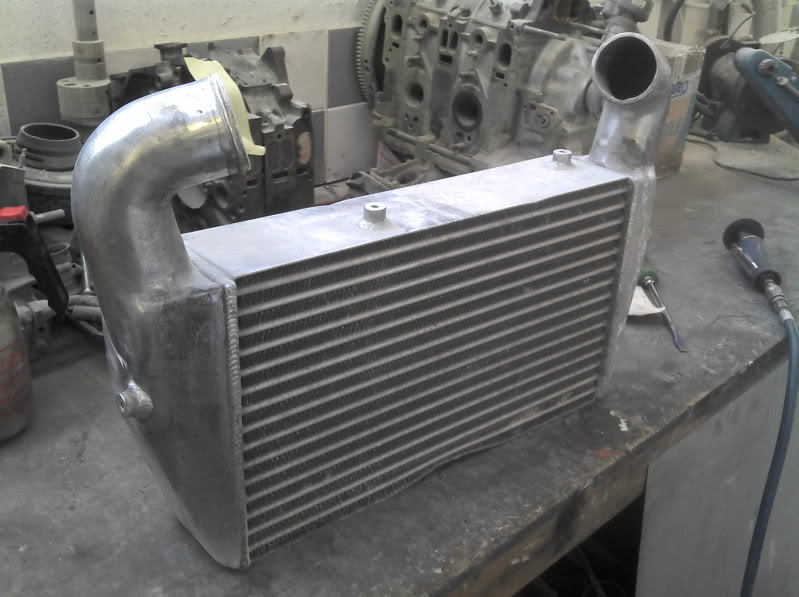

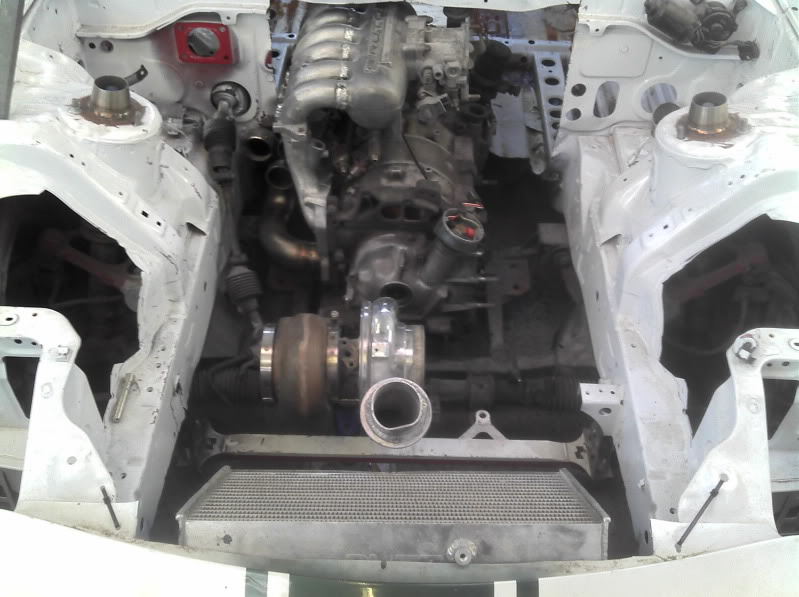

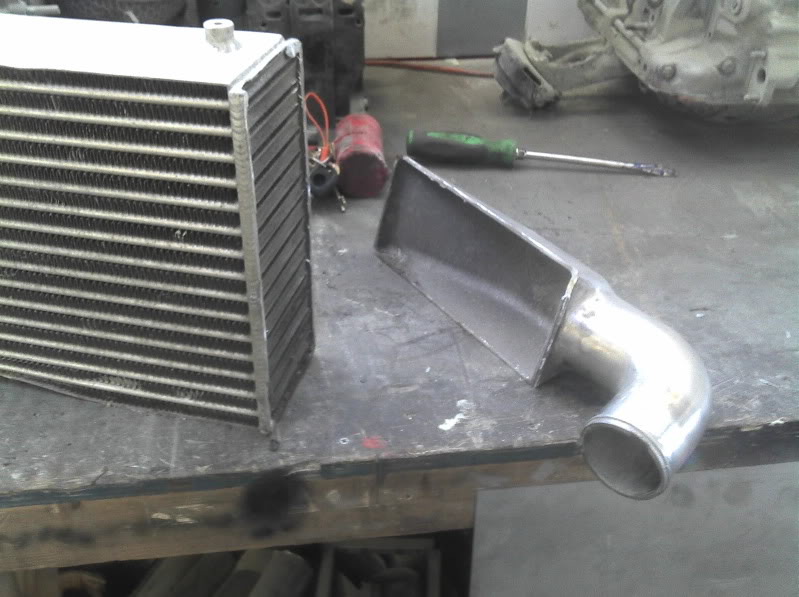

Started to think about the intercooler position. I have a biltz unit sitting about that never sold so i have given it the chop to work with my set up. I think i will probibly go with a mild V-mounted angle as the cooler is quiet thick Won't be worry about it too much for now.

James McCarthy

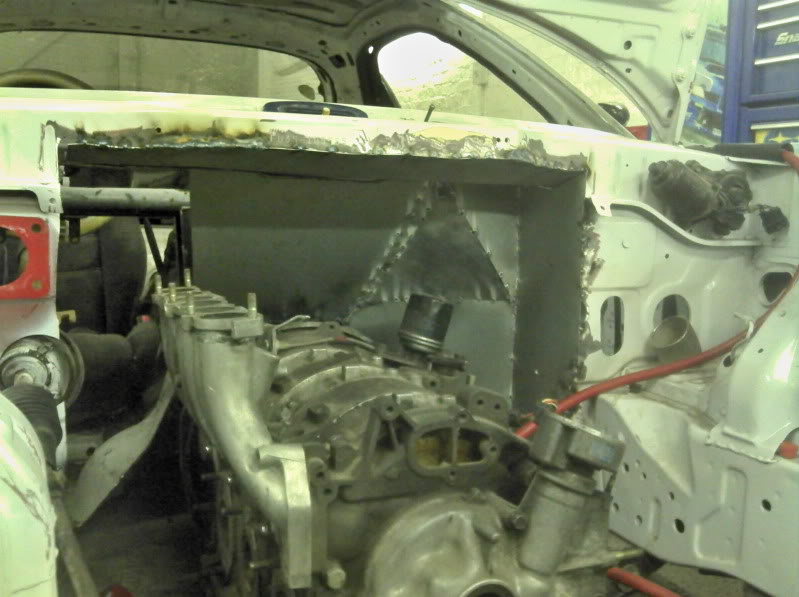

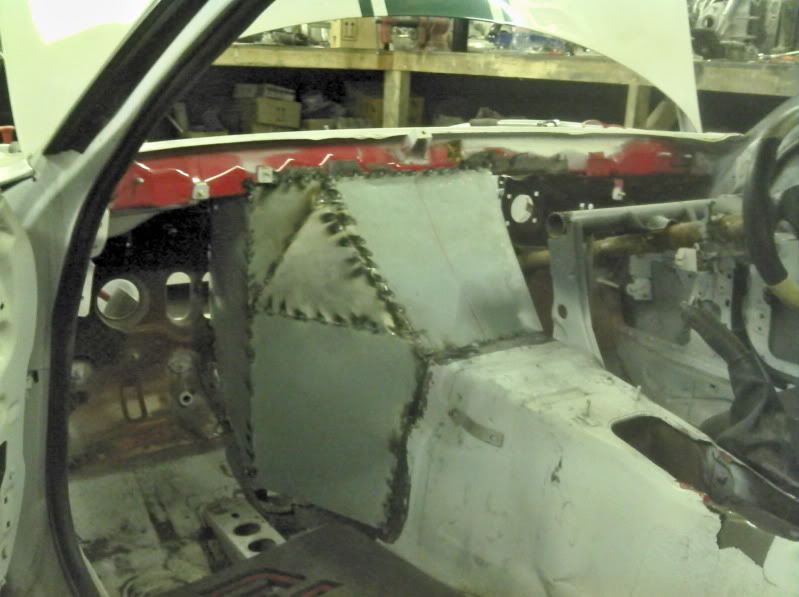

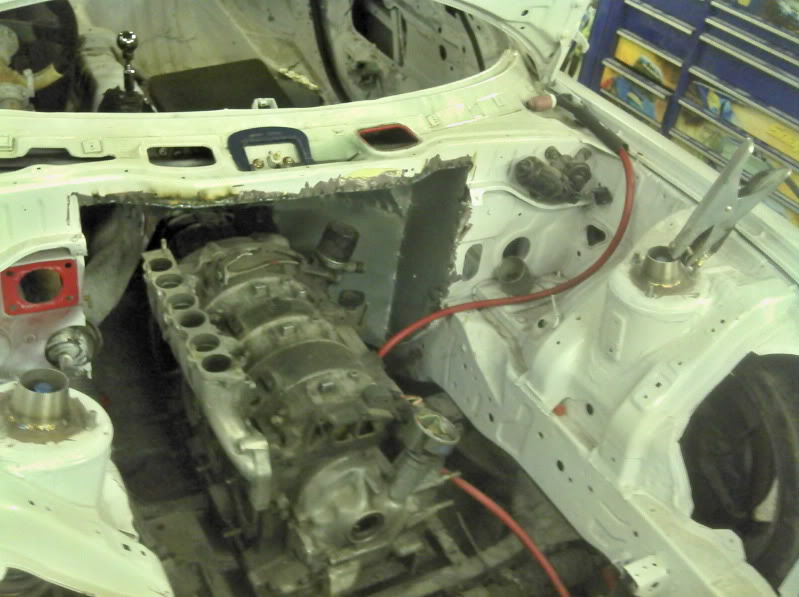

little bit done on the trans tunnel now that both tunnels for the mufflers are all tacked in. Until i get my hand on the rest of the manifold parts i can really build the drivers side of the trans tunnel as i need to build it around the down pipe.

James McCarthy

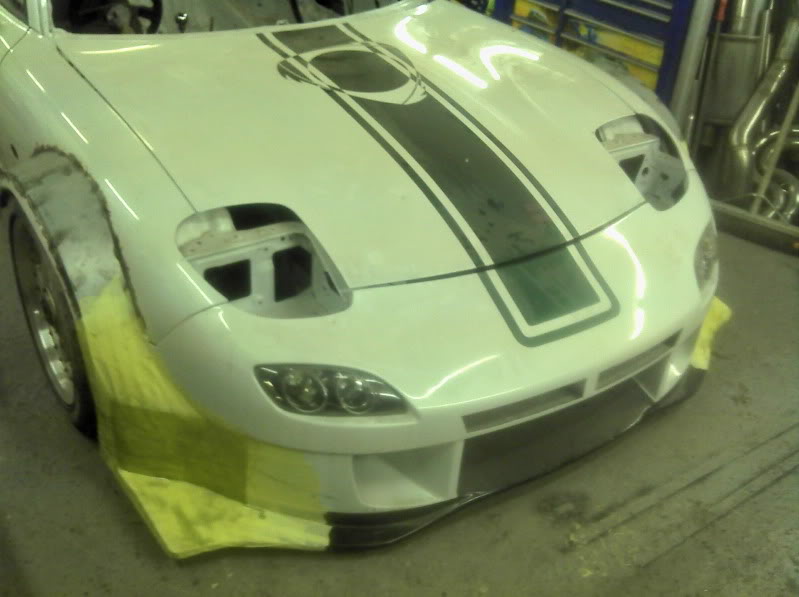

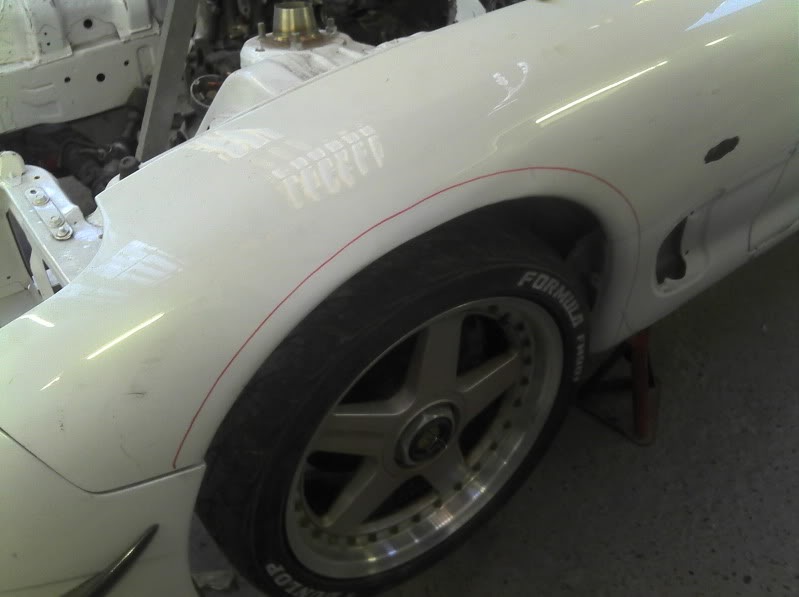

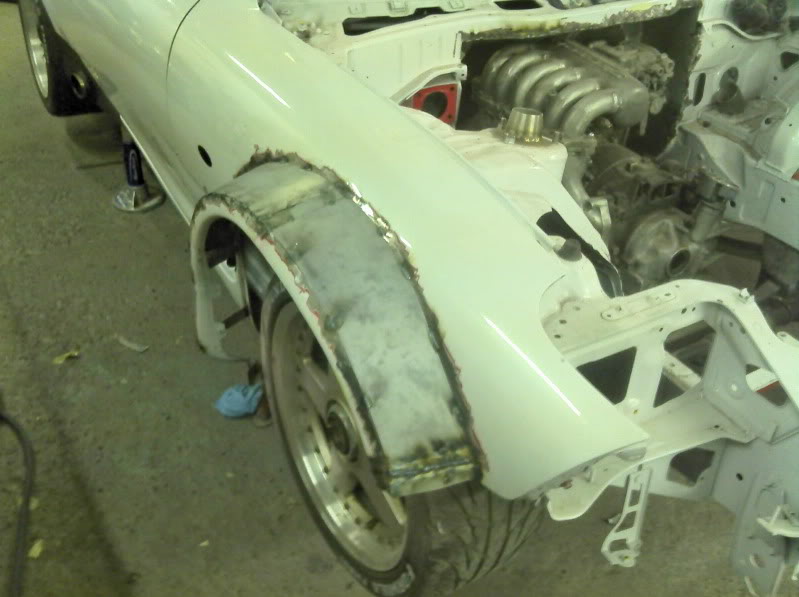

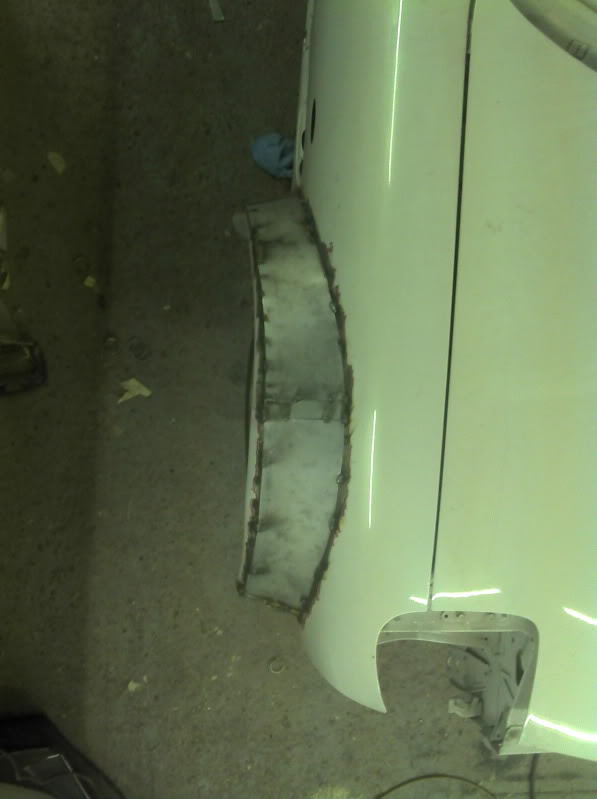

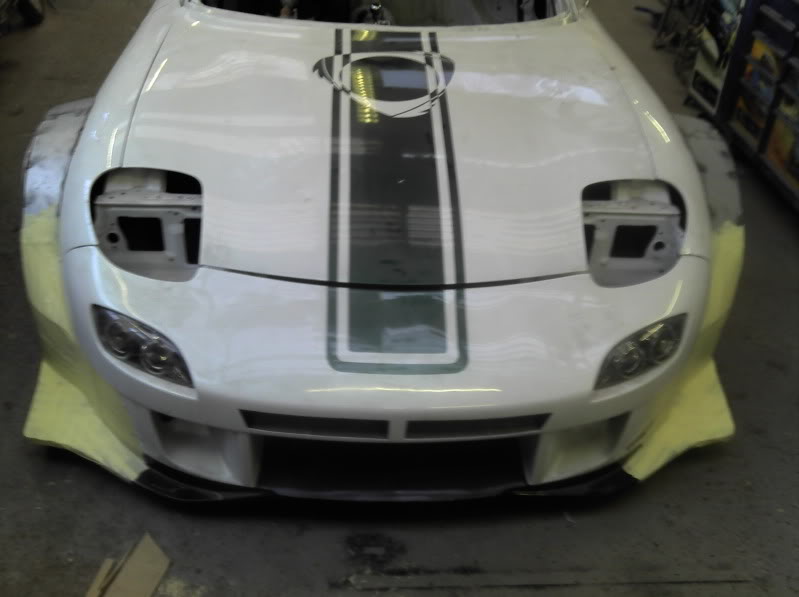

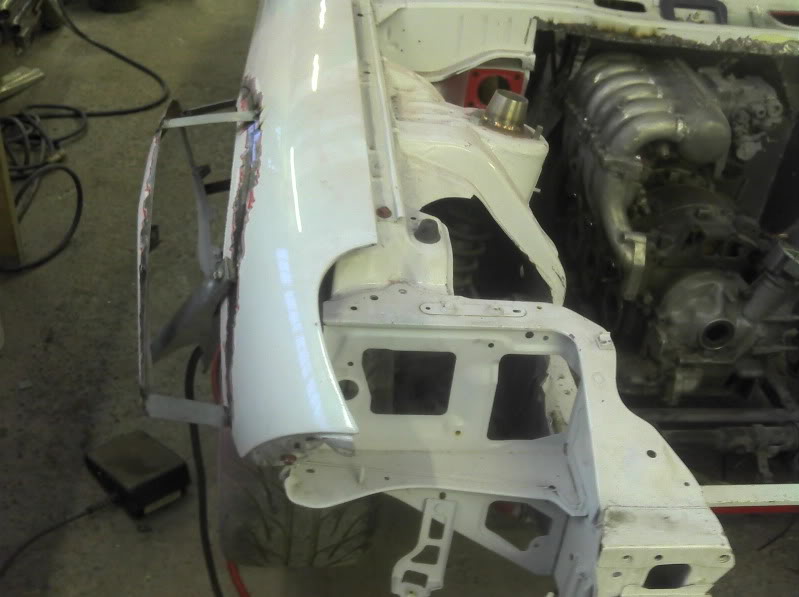

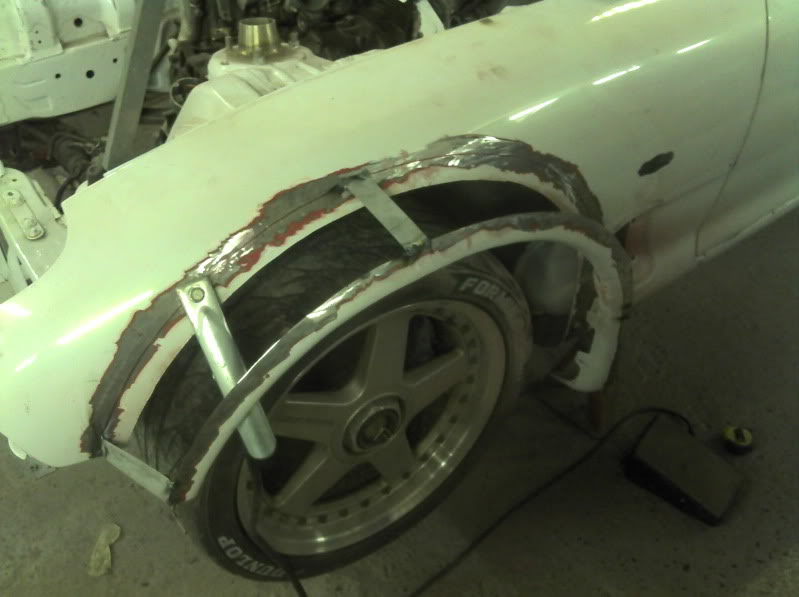

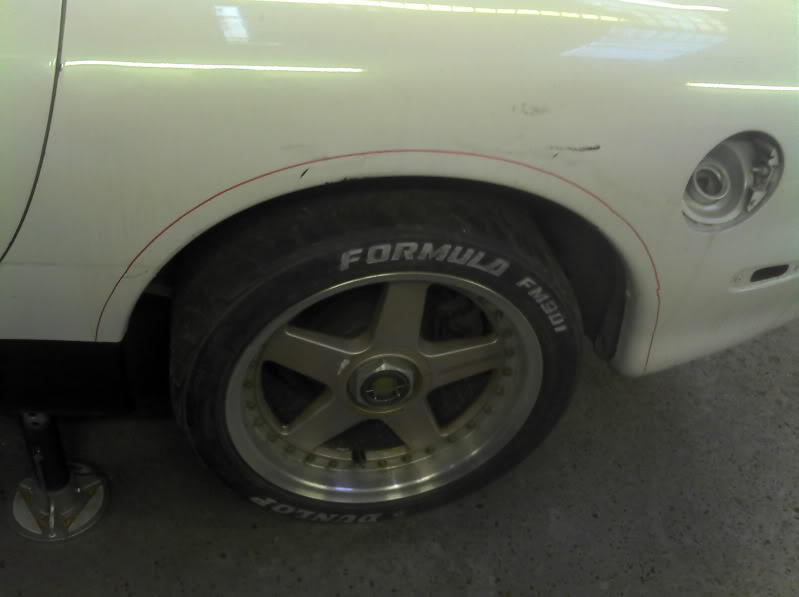

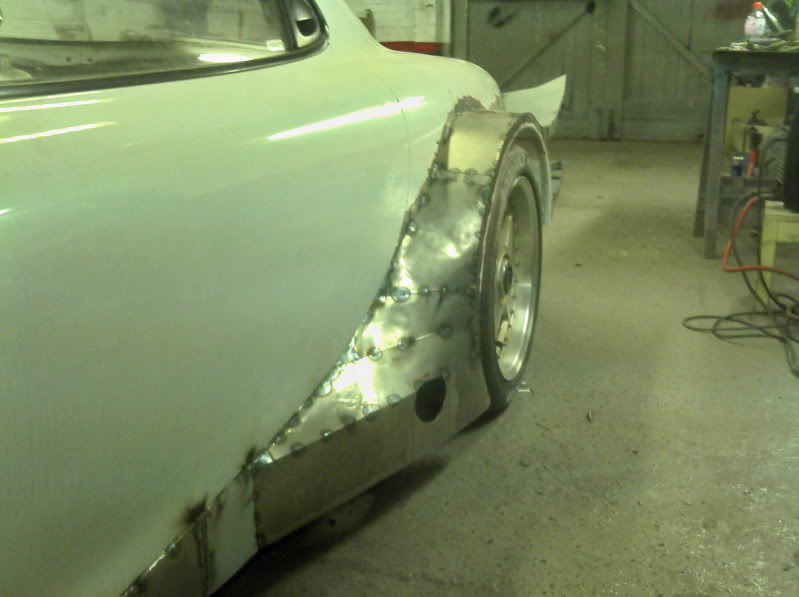

Also now started on the wide arches..... Step one, nice round mark





CHOP

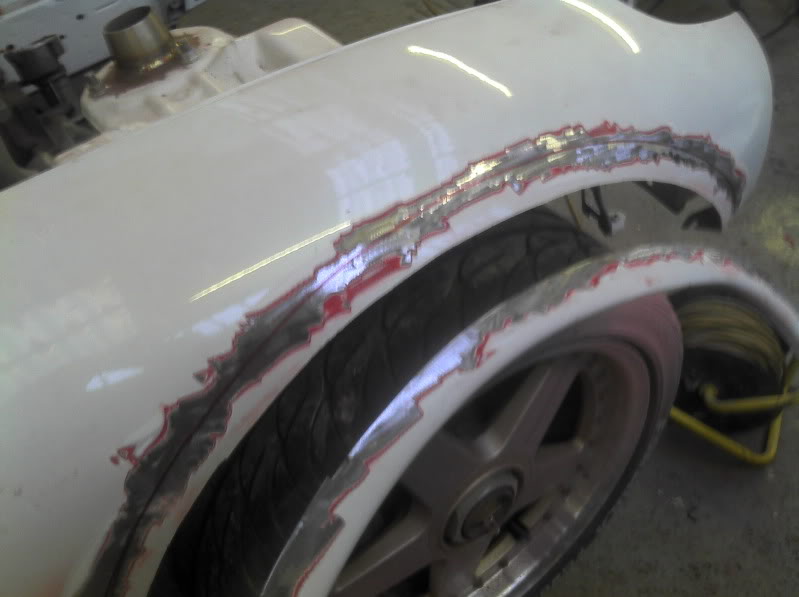

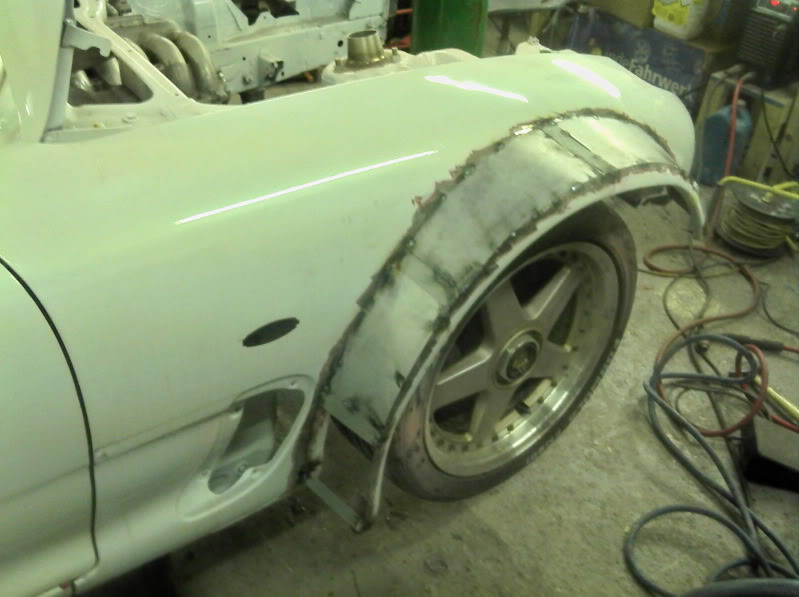

Weld.

James McCarthy

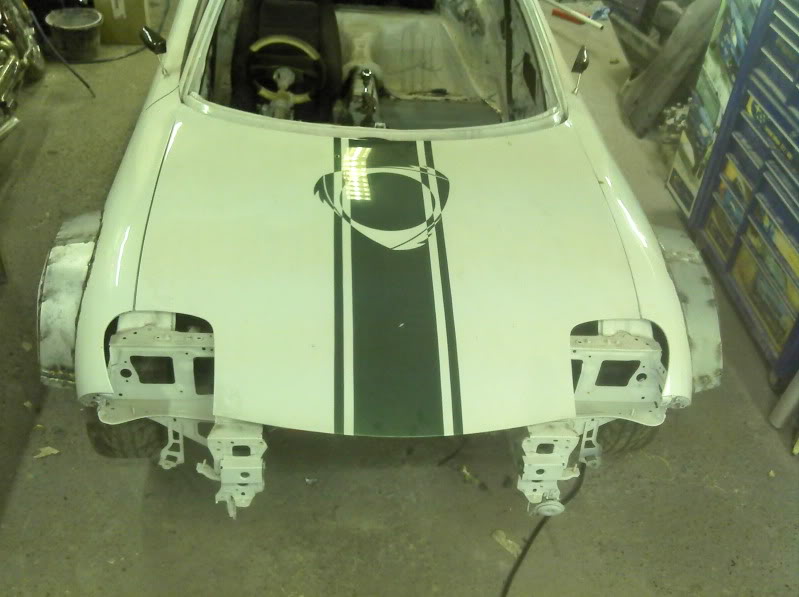

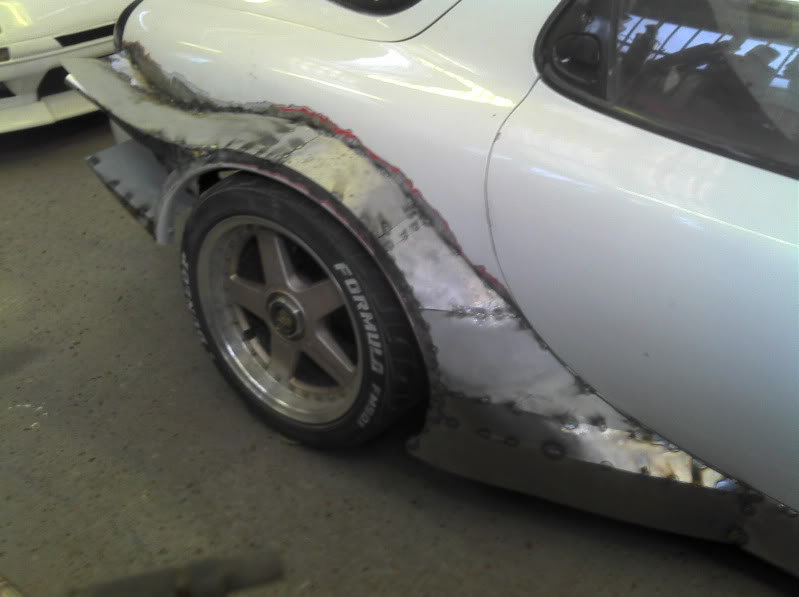

Some sunday work!

James McCarthy

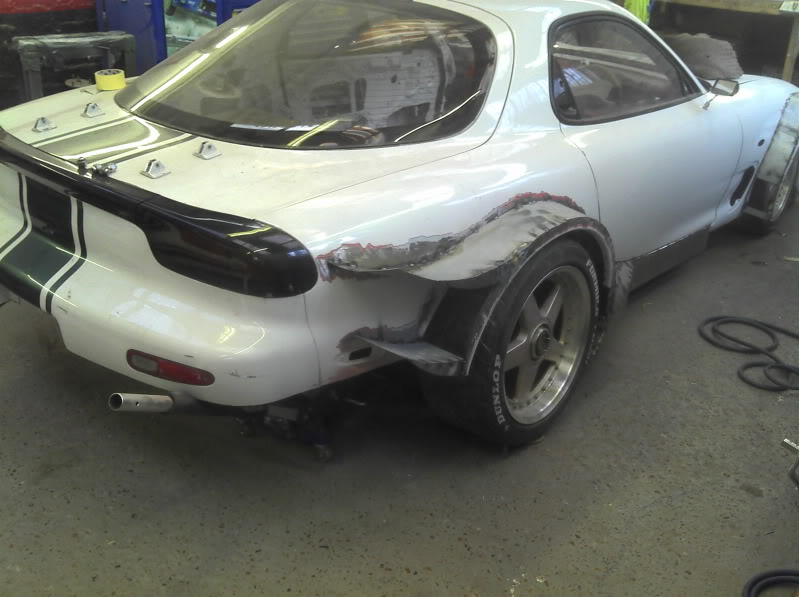

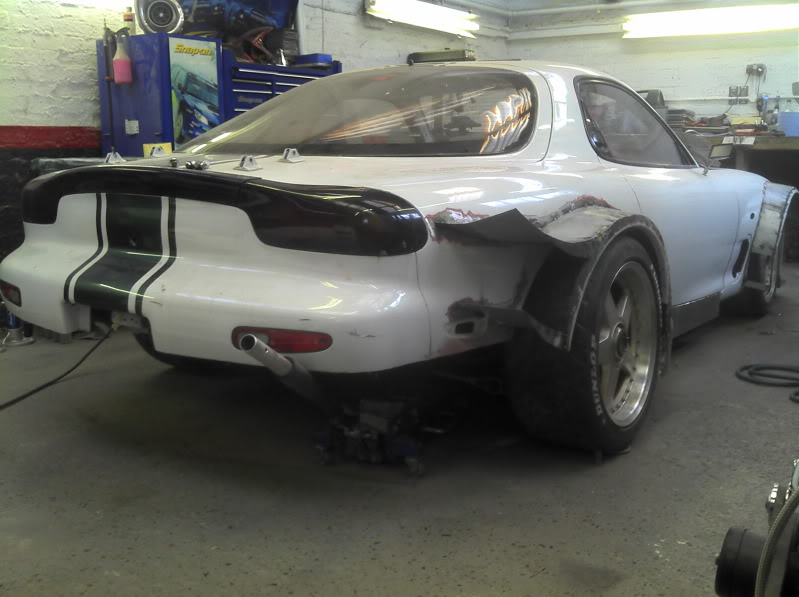

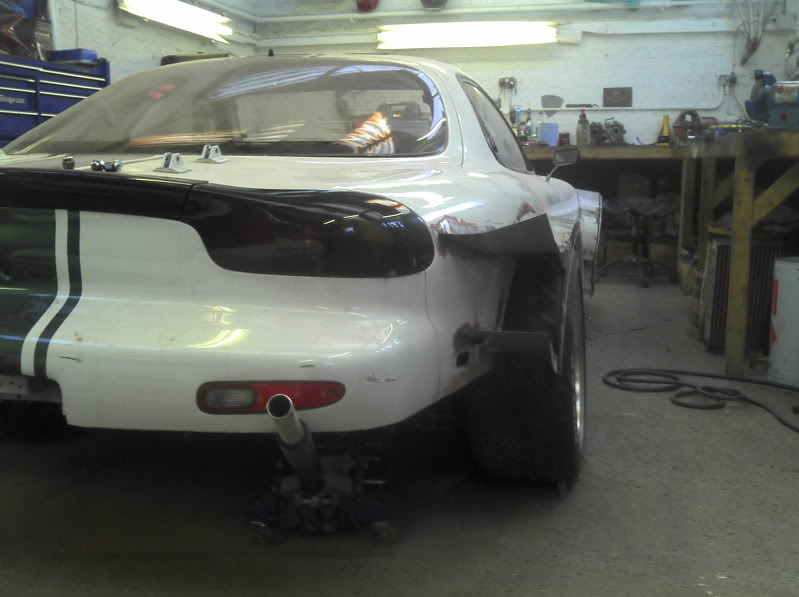

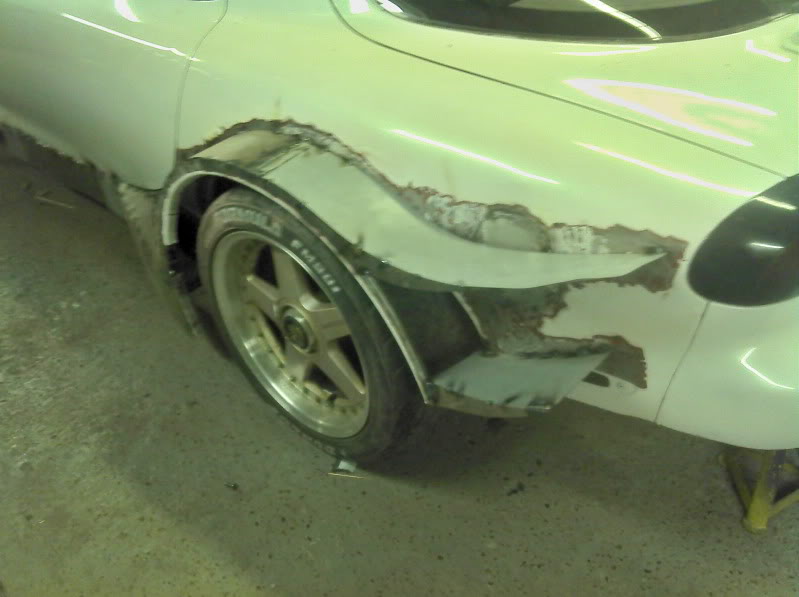

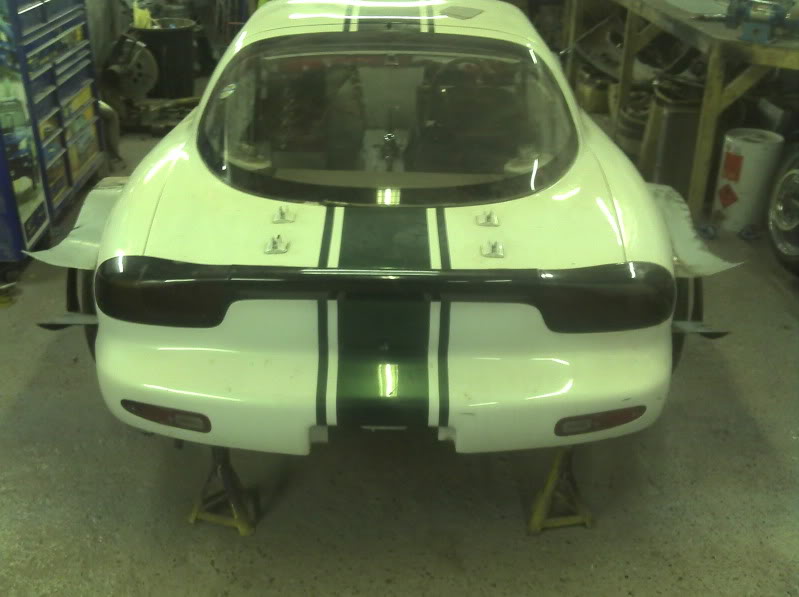

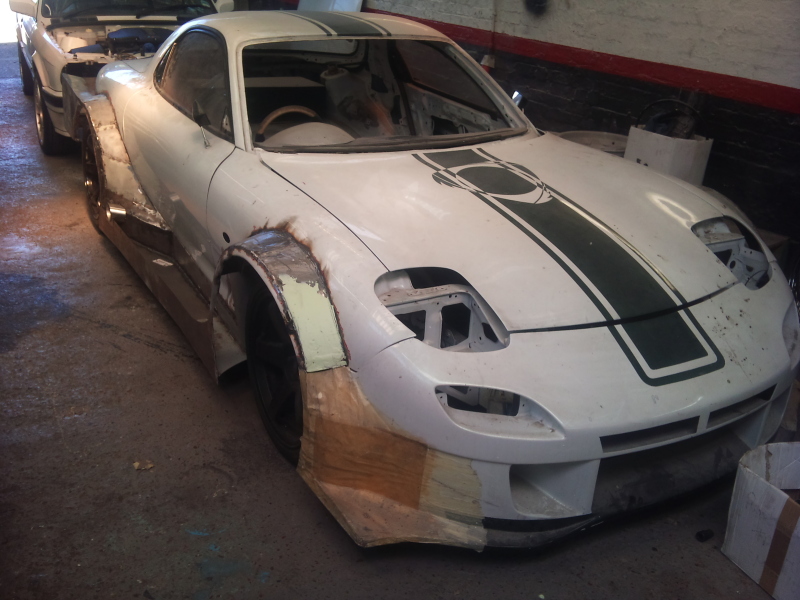

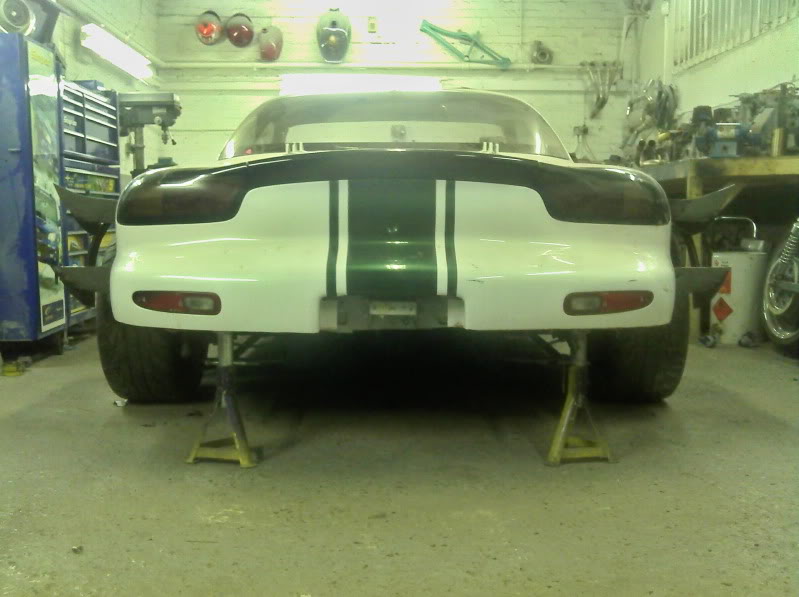

Bit of tweeking to be done but with the car on jacks you get a referance of how far out the wheels sit. Obviously these are only 9" wide not the 13" that will be needed....

James McCarthy

James McCarthy

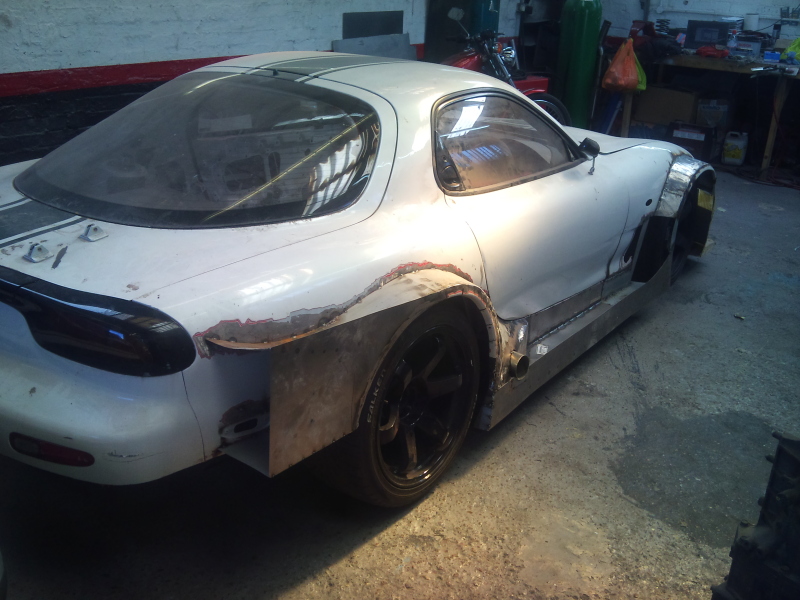

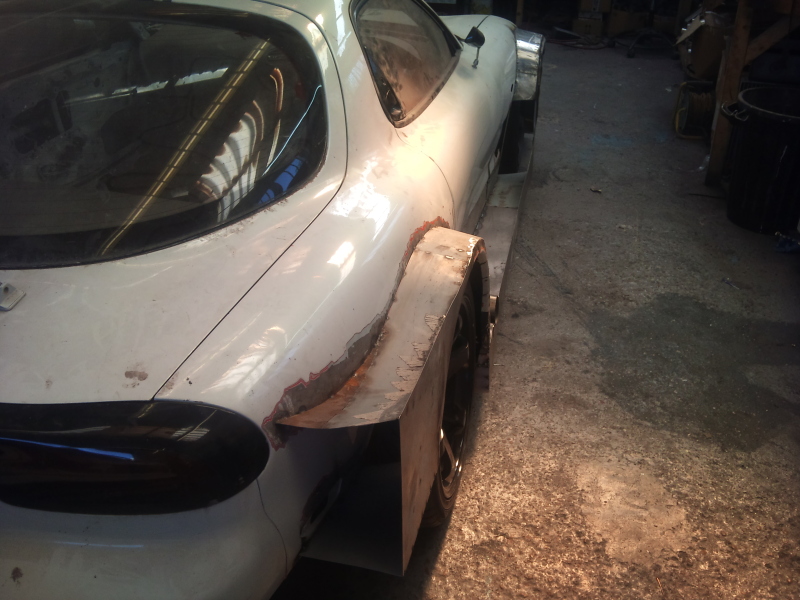

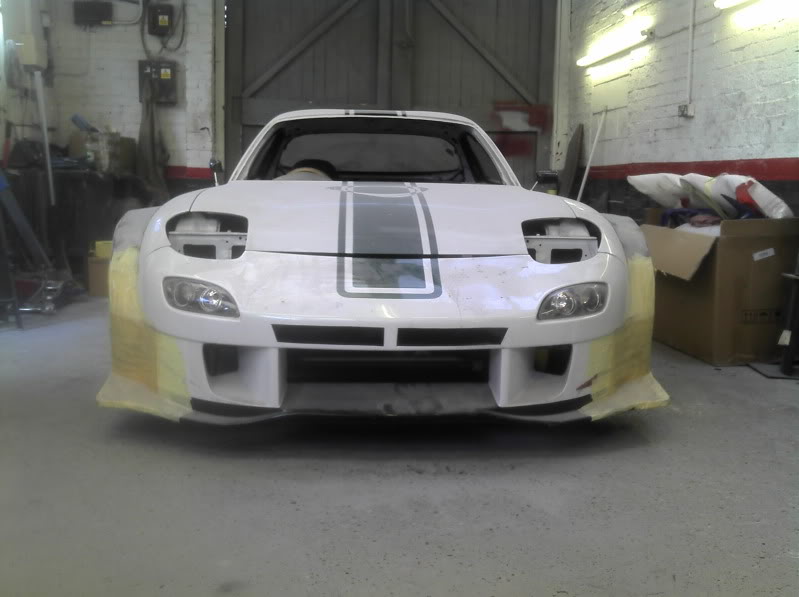

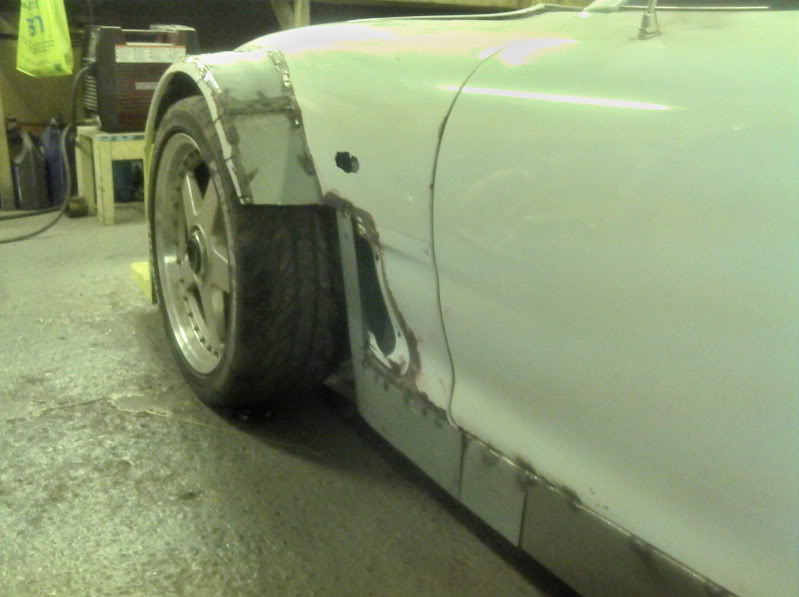

I actually got a few moments to weld some stuff up.... then had to put her away again!





the body

FernandoLuna

Its really a great job you´ve done on that car. Maybe you can help me if I get stuck in a couple of day when I start putting a 13G in a FD. Its a road race car that right now is running a 13B peripheral. Congrats on your meticulous work

jaaf

any more build material?
