6port Exhaust
#1
i want to add a 6 port header to my Gsl-SE. I also want to run dual straight pipe all the way to the back (no Priselencer). Can I just drill a whole and add a small pipe so I can connect it to the 6 ports? is there a specific location that I have to drill the whole so I get enough back pressure so the ports open correctly?
#2
I would like to know the same thing. I was told someone built a system that opened them electronically. I have searched and read and searched but to no avail.
Someone please help.
Otherwise I'm gonna have to get creative and we definitely don't want that!
Someone please help.
Otherwise I'm gonna have to get creative and we definitely don't want that!
#3
OK you made me do it.

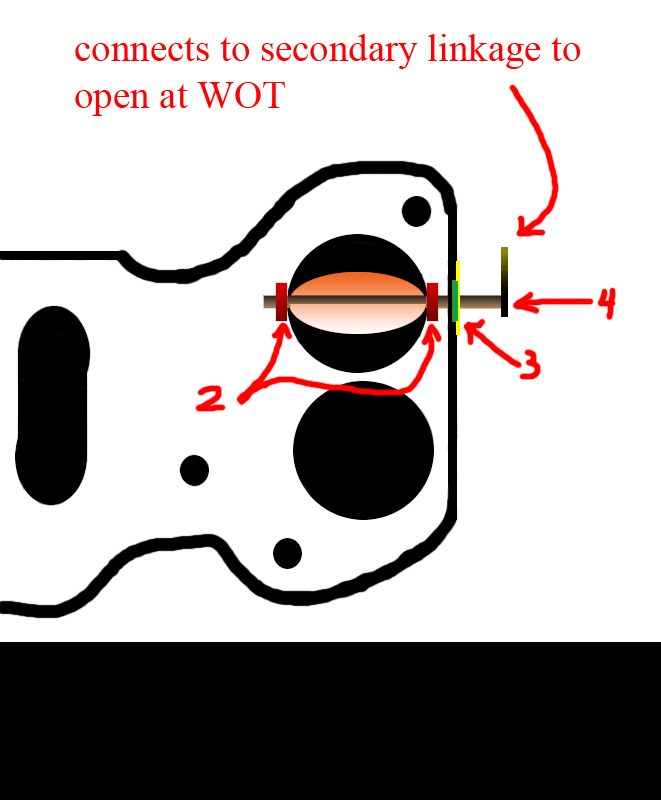

This is on a Holley 6 port intake manifold not using the inserts.
1. Connects up to the secondaries and opens at wide open throttle.
2. Ball bearngs or bushins hold the plate true.
3. O-ring, circlip and retainer plate keep it in place.
4. Order the correct throttle plate and shaft size for your application.
When I get this working it should allow better intake velocity to the secondary ports and allow for rate of adjustment of flow to auxiliaries.
This is on a Holley 6 port intake manifold not using the inserts.
1. Connects up to the secondaries and opens at wide open throttle.
2. Ball bearngs or bushins hold the plate true.
3. O-ring, circlip and retainer plate keep it in place.
4. Order the correct throttle plate and shaft size for your application.
When I get this working it should allow better intake velocity to the secondary ports and allow for rate of adjustment of flow to auxiliaries.
#4
I just wired mine open. You won't last long running dual straight pipes on the street before the pigs nail you for noise.I should know.My last exhaust system lasted 2 weeks before I had to change it to my N1 setup I have now.I even had to put a muffler under the car next to the header to keep the ******* happy.
#5
Originally Posted by ArmyOfOne' date='Dec 18 2003, 11:37 PM
OK you made me do it.
This is on a Holley 6 port intake manifold not using the inserts.
1. Connects up to the secondaries and opens at wide open throttle.
2. Ball bearngs or bushins hold the plate true.
3. O-ring, circlip and retainer plate keep it in place.
4. Order the correct throttle plate and shaft size for your application.
When I get this working it should allow better intake velocity to the secondary ports and allow for rate of adjustment of flow to auxiliaries.
This is on a Holley 6 port intake manifold not using the inserts.
1. Connects up to the secondaries and opens at wide open throttle.
2. Ball bearngs or bushins hold the plate true.
3. O-ring, circlip and retainer plate keep it in place.
4. Order the correct throttle plate and shaft size for your application.
When I get this working it should allow better intake velocity to the secondary ports and allow for rate of adjustment of flow to auxiliaries.
#6
Originally Posted by rotary632' date='Dec 18 2003, 07:05 PM
i want to add a 6 port header to my Gsl-SE. I also want to run dual straight pipe all the way to the back (no Priselencer). Can I just drill a whole and add a small pipe so I can connect it to the 6 ports? is there a specific location that I have to drill the whole so I get enough back pressure so the ports open correctly?
Also it helps to make sure your actuators are tuned (clean, lubricated, smooth and unbent) aswell.
As far as "Army of One's" idea with the butterflies (ie: Rotary V-tech) I like it and it's something I've thought about myself. I just never got around to testing it. Suggestion: You may want to consider making a seperate plate for your butterfly system something that would fit in between the manifold and the housings. This way you can play with it, change things and tune it without having to change the whole manifold each time. Plus you can sell it as a add-on that way later on when your done.
Let us know your progress..
PK797 NYC
#8
#10
If you're still looking for a header, the Mazdatrix 6 port header has the sensing tube bung on the header itself. The RB version had the bung on one of the presilencers. Appearantly, the Mazdatrix version opens the ports sooner.
