13b Front Covers Rarer Than Chickens Teeth
10-23-2003, 04:12 AM
#1
Junior Member
Thread Starter
Join Date: Oct 2003
Location: Los Angeles
Posts: 9
alrighty then, heres a stumper. To put a 13b in a 12a chassis I keep hearing you need a 13b gsl-se front engine cover, which I'm beginning to think are extremely hard to to find (like a fart in a hurricane in fact).
Where can you get these things, what are the alternatives. It might in fact be cheaper to fab a new crossmember/engine mount than source a gsl-se front engine cover. If this turns out to be the case then I might just buys headers and a weber instead.
Does anyone have thoughts on this, or even better a mazda part number and an idea of cost to source this tricky little bugger.
Thnks
Where can you get these things, what are the alternatives. It might in fact be cheaper to fab a new crossmember/engine mount than source a gsl-se front engine cover. If this turns out to be the case then I might just buys headers and a weber instead.
Does anyone have thoughts on this, or even better a mazda part number and an idea of cost to source this tricky little bugger.
Thnks
10-23-2003, 02:48 PM
#3
Junior Member
Thread Starter
Join Date: Oct 2003
Location: Los Angeles
Posts: 9
are you sure, all I've found on ebay in the last month is a full 13b gsl-se engine selling for over a 1k, thats way too much. I've been checking the partstrader pretty thoroughly every couple of days. I guess I just need to sit back and wait until my part shows up.
Is there a mazda part number?
Is there a mazda part number?
10-24-2003, 12:47 AM
#5
Senior Member
Join Date: Dec 2001
Location: Miami, FL
Posts: 401
Originally Posted by rotor' date='Oct 23 2003, 07:55 PM
I thaught the 13b and 12a front covers were the same. Whats the differance between the two?
What he needs is an SE Oil Pan and Crossmember. The oil pan is $89, - NEW, and you can actually use the stock 12 crossmember with the 13B, if you drill it.
10-24-2003, 10:51 AM
#6
Junior Member
Join Date: Oct 2003
Location: VA
Posts: 14

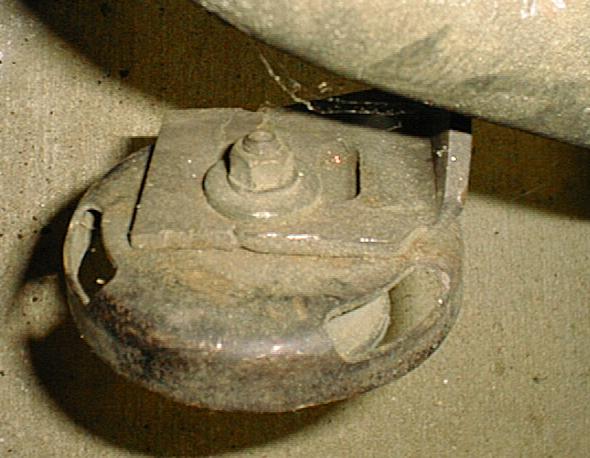

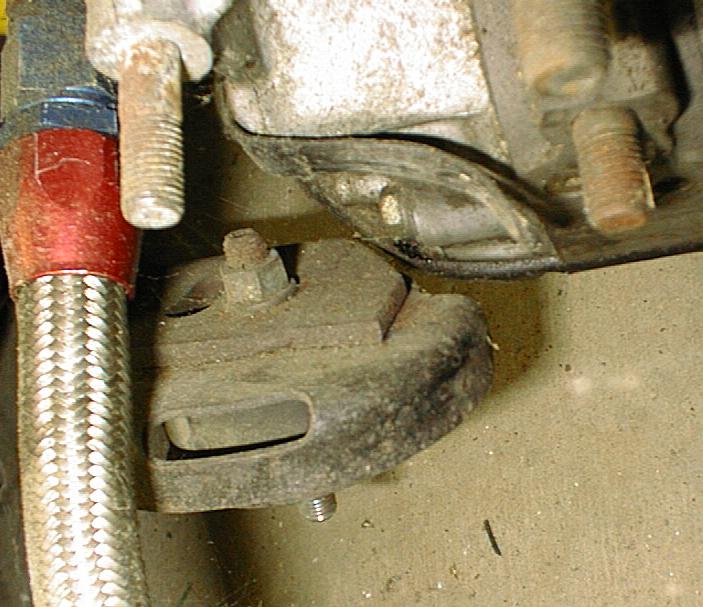

He can possibly use the oil pan, depending what car it came from. Just remove the pan, heat it up with a torch, and work it into shape to clear the suspension. The ears on the stock 12A front mount are not long enough to drill another hole. He needs to extend the mount by welding some extra steel to the end and then drilling. Here is a pic of the mount mod.
10-25-2003, 07:24 PM
#9
Junior Member
Thread Starter
Join Date: Oct 2003
Location: Los Angeles
Posts: 9
A have a full 13b 86 n/a parts car that I intend to use for the swap with an injector block-off plate and the stock nikki carb from my GS, should I use the 13b front cover and the oil metering pump for the 86 that goes with it? I found the GSL-SE oil pan, thanks for that.
Slowly but surely coming together.
Last question. Whats the weight difference between the 12a and 13b, do I have to think about uprating the stock springs in the front to cope with the new motor.
Seriously considering the rack and pinion conversion from CP, the steerings the thing I like least in my fb.
Slowly but surely coming together.
Last question. Whats the weight difference between the 12a and 13b, do I have to think about uprating the stock springs in the front to cope with the new motor.
Seriously considering the rack and pinion conversion from CP, the steerings the thing I like least in my fb.
