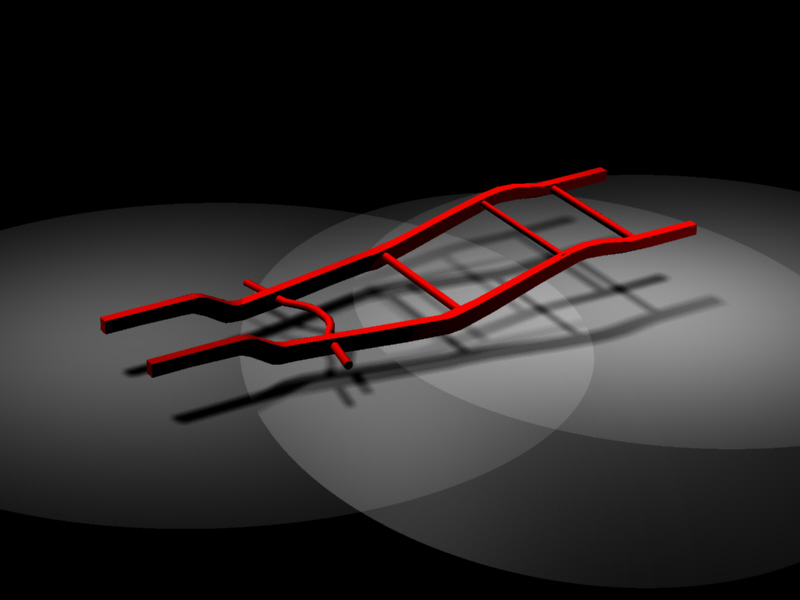

Well since I was buggin everyone of the blueprints for the Repu.. Here is what I was workin on.. Still in progress..
Attached Thumbnails 3d Repu Frame-frame.jpg
75 Repu is offline
Reply
Old 05-06-2003, 01:54 PM
  #2
Senior Member

j9fd3s's Avatar

Join Date: May 2002
Location: California
Posts: 22,465
Default
sweet, howd you do that? i wanna build my own car someday



mike
j9fd3s is offline
Reply
Old 05-06-2003, 02:05 PM
  #3
Senior Member
Thread Starter

75 Repu's Avatar

Join Date: Aug 2002
Location: Mike is a Liar!
Posts: 4,848
Default
I modeled it in Rhino 3D.. I just used the original blueprints of the frame as a guide to get the right shape/proportion.. Now if I could just get my hands on some blueprints of the Body of the truck..
75 Repu is offline
Reply
Old 05-06-2003, 02:29 PM
  #4
Senior Member

j9fd3s's Avatar

Join Date: May 2002
Location: California
Posts: 22,465
Default
yeah, you have the blue prints for a truck!



mike
j9fd3s is offline
Reply
Old 05-06-2003, 02:34 PM
  #5
Senior Member
Thread Starter

75 Repu's Avatar

Join Date: Aug 2002
Location: Mike is a Liar!
Posts: 4,848
Default
Not for the Body though.. If I had those I could model the body alot easier than using regular pictures..
75 Repu is offline
Reply
Old 05-06-2003, 02:55 PM
  #6
Senior Member

j9fd3s's Avatar

Join Date: May 2002
Location: California
Posts: 22,465
Default
i jusr dl'ed the demo software. its gonna take some figureing



mike
j9fd3s is offline
Reply
Old 05-06-2003, 03:07 PM
  #7
Senior Member
Thread Starter

75 Repu's Avatar

Join Date: Aug 2002
Location: Mike is a Liar!
Posts: 4,848
Default
It's a pretty good design program once you get it..
75 Repu is offline
Reply
Old 05-07-2003, 12:39 AM
  #8
Senior Member

Racer X's Avatar

Join Date: Sep 2002
Location: Vanderhoof,BC(Canada)
Posts: 5,542
Default
That looks cool.Just get it to spin around with the T2 setup on the chassis and use it as your avatar.
Racer X is offline
Reply
Old 05-07-2003, 10:25 AM
  #9
Senior Member
Thread Starter

75 Repu's Avatar

Join Date: Aug 2002
Location: Mike is a Liar!
Posts: 4,848
Default
That sounds like a good idea.. if I could find that model of the T2 or at least just the engine, then I could mount it all in cyberspace, and make that Avatar
75 Repu is offline
Reply
Old 05-07-2003, 10:51 AM
  #10
Senior Member

j9fd3s's Avatar

Join Date: May 2002
Location: California
Posts: 22,465
Default
Originally Posted by 75 Repu' date='May 6 2003, 12:07 PM
It's a pretty good design program once you get it..
i dont get it yet



mike
