GT 35/40 dyno #s on ported motor
#1

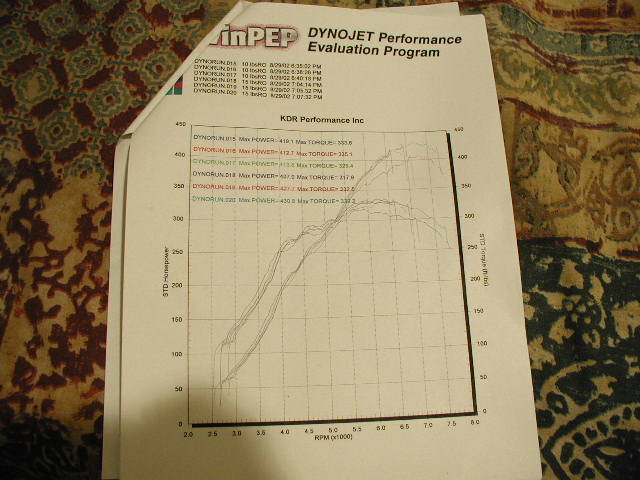

I went up to KD Rotary today. After sorting out why my boost controller wasn't working (wire broke) Dave strapped her to the dyno and started tuning. He did 20 pulls in all. The first bunch involved taking fuel out of the midrange and making sure the top end didn't lean out. They were done at 10 psi, and I made about 320 hp once it was properly tuned. After some time to cool down, it was time to have some fun. Dave turned up the boost to 15 psi, and put down 427.7 hp. It was almost right. Dave tweaked it a little more and on the next run we put down 430.8 hp and 332.2 lb/ft or torque. Boost spiked to about 17 psi initially and then held at 15-15.5 psi. I was very impressed, as I was hoping to make 400. I guess this shows the difference that a big street port can do. This was on Sunoco 94 octane pump gas. Dave said I'm at about the limit of my stock ignition system, and there maybe 4-5 hp to gain with something like a twinpower. Once I get the ignition and a 3 bar map sensor I plan to dyno at 20 psi or more on race gas. Basically I want to hit 500 hp. Overall I am very happy with the turbo. I got it for hundreds less than something else comparable thats out there. It spools very fast, almost like stock twins in my opinion. If you are in the correct gear, there is no lag. I eyed my rpm and boost briefly on my drive home. I remember seeing 15 psi around 3500 rpm or so In 4th gear when I got on it from maybe a 65-70 mph roll. I fooled around a bit on the highway, playing with the boost, and turned down the balance a bit to reduce spiking. I put the car away for the rest of the night because it started to drizzle. Hopefully it will be nicer tomorrow so I can do more testing.
#2
Here's a list of my related mods:
KDR monster street port (told him the biggest he can go)
3mm seals, silicone coolant seals, reliability mods
Garret GT 35/40 1.06 a/r
Apexi Power FC
Greddy Profec B
K2RD fuel rail with 1600cc secondaries
SX fpr
Cosmo pump
Greddy 2 row front mount
Mazdacomp radiator
probably forgetting something else
Greddy elbow
SR resonated midpipe
Greddy SP catback
KDR monster street port (told him the biggest he can go)
3mm seals, silicone coolant seals, reliability mods
Garret GT 35/40 1.06 a/r
Apexi Power FC
Greddy Profec B
K2RD fuel rail with 1600cc secondaries
SX fpr
Cosmo pump
Greddy 2 row front mount
Mazdacomp radiator
probably forgetting something else
Greddy elbow
SR resonated midpipe
Greddy SP catback
#6
Originally Posted by vosko' date='Aug 30 2002, 11:47 AM
congrats!! can't wait to see how much i dyno
#10
Originally Posted by j9fd3s' date='Aug 31 2002, 08:09 PM
yah we still don't know what your crazy idea is
