Jeff here is some detail on what I did to my clutch master to make it work better than using the stock MG/AH master. It is easy to drive yet it is not wimpy. You said yours needs to be rebuilt anyway, so this is not too $$$. You will need an '86 master, some hard line, various couplings and a flex line....
Don't rebuild the stock master. I used an '86 master and all I had to do was file out the mounting holes on the pedal box to allow the mounting studs to fit. Oh, and I think I replaced one of the studs with a bolt for ease of installation. I also had to make a new pushrod - I cut the "U" shaped end off the stock pushrod and welded it to a 1/4" bolt that I had cut the head and threaded part off of (it was a long bolt) and used it for the new pushrod.
You will also need to drill a hole in the pedal box directly in front of the clutch pedal and weld a nut (5/16" works) so you can thread a bolt in to act as a stop for the pedal to keep it from flopping around when it is released (mine had about 1" of free play because the stock pedal spring pulls the pedal all the way back). Set up this way, the clutch is the same height as the brake and works well.
Brian
Don't rebuild the stock master. I used an '86 master and all I had to do was file out the mounting holes on the pedal box to allow the mounting studs to fit. Oh, and I think I replaced one of the studs with a bolt for ease of installation. I also had to make a new pushrod - I cut the "U" shaped end off the stock pushrod and welded it to a 1/4" bolt that I had cut the head and threaded part off of (it was a long bolt) and used it for the new pushrod.
You will also need to drill a hole in the pedal box directly in front of the clutch pedal and weld a nut (5/16" works) so you can thread a bolt in to act as a stop for the pedal to keep it from flopping around when it is released (mine had about 1" of free play because the stock pedal spring pulls the pedal all the way back). Set up this way, the clutch is the same height as the brake and works well.
Brian
10-16-2002, 07:07 PM
#9
Senior Member
Thread Starter
Join Date: Oct 2001
Location: Westminster, MD
Posts: 368
Originally Posted by j9fd3s' date='Oct 16 2002, 05:56 PM
me like whole car. all of the mazda clutch masters have the same diameter, afak
mike
mike

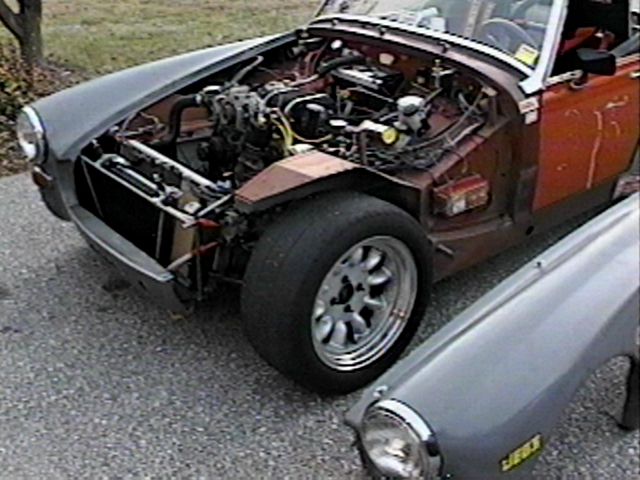

The wheels are 15x8" Superlite's - custom made. I lucked out a few years ago when someone ordered them and then backed out. They were sitting in the warehouse and I got a deal on them. The original buyer was going to use them on a Midget also. Tires are Kumho ECSTA V700 225/45/15's.
Right now the car is waiting for me to start taking it apart and finish the body work and paint it this winter. I also plan to build a new front suspension with adjustable a-arms, coil-overs, and balljoints (getting rid of kingpins). I just need some good weather this weekend.....
Oh and the other fender has been on for a while as you can see...
