When Disaster Strikes
12-09-2003, 10:02 AM
#1
Senior Member
Thread Starter
Join Date: Oct 2003
Location: Fort Lewis Washington
Posts: 705
Well I was looking forward to a wonderful Bridge Port and rebuild when....
On the way to Judge Ito's shop to pick up the goods and I let it warm up and all I brought the revs up to about 4K and bang... instant lawn mower. I limped it back to the garage and started to tear down. I checked the seals through the exhaust ports. Cyl 1 all clear, Cyl 2 2 apex seals busted and I felt the edge of the seal groove and it feels kinda gouged. I'll assess the damage and post pics of the rebuild. I am trying to test out a new bridge Port design so I'll see what I can bring to the table in the form of R&D.
Out.
On the way to Judge Ito's shop to pick up the goods and I let it warm up and all I brought the revs up to about 4K and bang... instant lawn mower. I limped it back to the garage and started to tear down. I checked the seals through the exhaust ports. Cyl 1 all clear, Cyl 2 2 apex seals busted and I felt the edge of the seal groove and it feels kinda gouged. I'll assess the damage and post pics of the rebuild. I am trying to test out a new bridge Port design so I'll see what I can bring to the table in the form of R&D.
Out.
12-10-2003, 12:00 AM
#4
Senior Member
Thread Starter
Join Date: Oct 2003
Location: Fort Lewis Washington
Posts: 705

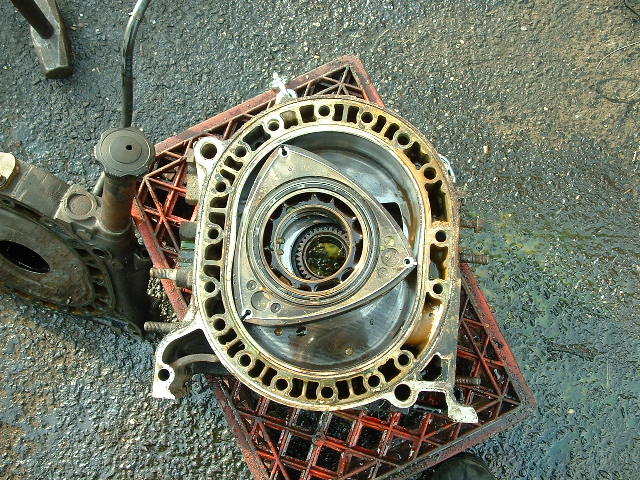

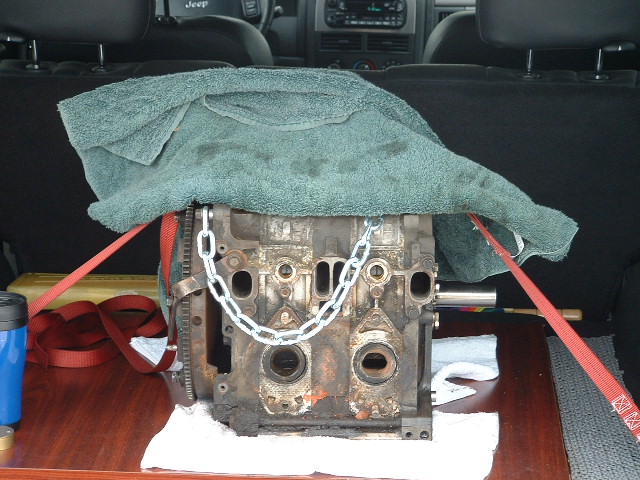

Well I stripped it down as far as I could. I will be stopping in tomorrow with the short block. I need the special tools for the fly wheel, so I might as well just get it torn down so that we can get a damage report.

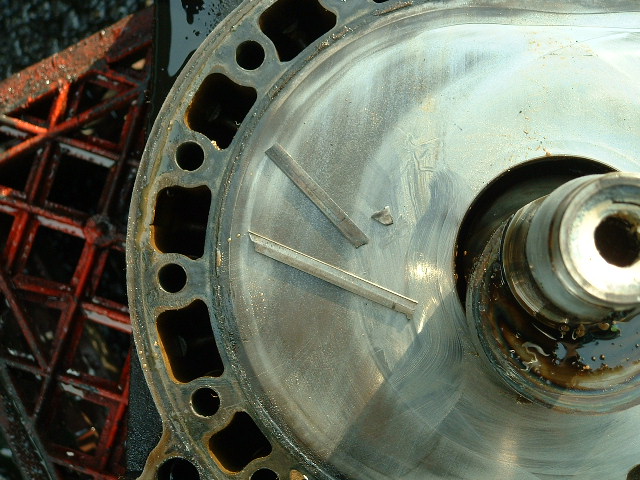

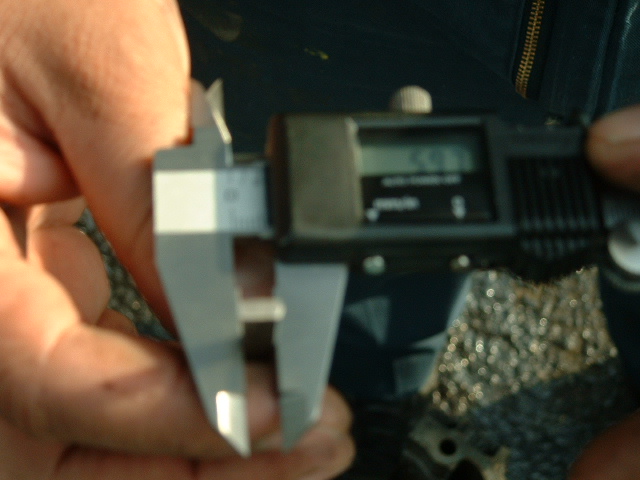

The pieces of apex seal I found appeared to be shorter than the minimum. It was just a matter of time.
BTW that was the original engine with 102,526 miles. Not bad for something most would call unreliable!
Well I wanted a rebuild anyway what a better motivation than this.
Out.
The pieces of apex seal I found appeared to be shorter than the minimum. It was just a matter of time.
BTW that was the original engine with 102,526 miles. Not bad for something most would call unreliable!
Well I wanted a rebuild anyway what a better motivation than this.
Out.
12-10-2003, 06:46 PM
#10
Senior Member
Thread Starter
Join Date: Oct 2003
Location: Fort Lewis Washington
Posts: 705

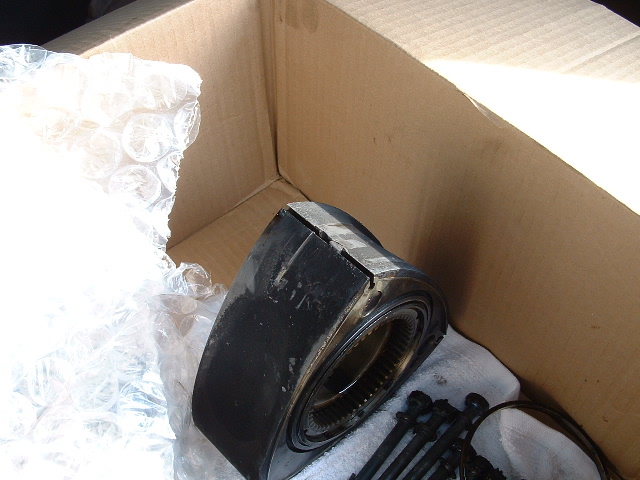

The clearance from the side seals to the corner seals was about .5 mm...
WAY TOO MUCH! The corner seals themselves had no springyness to them. They were stuck in their in positions.
Also the coolant rings were falling apart like granola bars in my 7 year old son's lunchbox.
WAY TOO MUCH! The corner seals themselves had no springyness to them. They were stuck in their in positions.
Also the coolant rings were falling apart like granola bars in my 7 year old son's lunchbox.
