Porting The 5th And 6 Ports With Sleaves?

Thread Tools

Search this Thread

Old 11-17-2003, 01:26 AM
  #1
Senior Member
Thread Starter

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
I started porting my 6 port na motor and am a bit puzzled what to do with the 5th and 6th ports. I have the pineapple sleaves in, but started porting before they came in. I found that I can't really go up much because then the top of the sleave shows and leaves a flat spot, instead of a smooth curve. I am thinking of grinding the sleave a bit to smooth the transition to where my port closes. I can post pics tomorrow.
Silver Ninety Three is offline
Reply
Old 11-17-2003, 01:52 AM
  #2
Super Moderator

mazdaspeed7's Avatar

Join Date: Sep 2002
Location: Savannah, Ga
Posts: 2,763
Default
Trim the sleeve. Thats what I always do.
mazdaspeed7 is offline
Reply
Old 11-17-2003, 07:41 PM
  #3
Senior Member
Thread Starter

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
yea I was planning on trimming the sleave to flow with the port

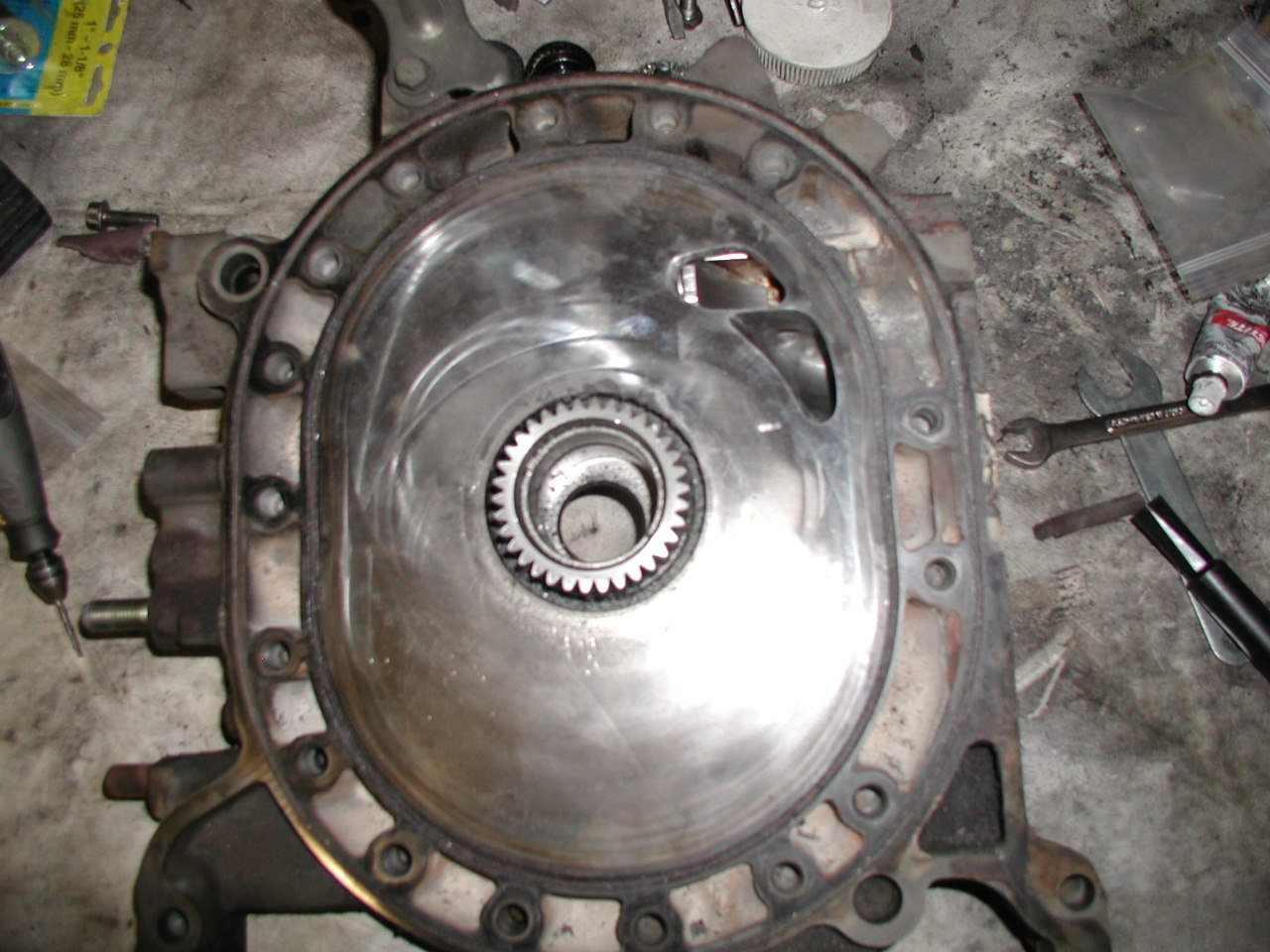

Attached Thumbnails Porting The 5th And 6 Ports With Sleaves?-6port1.jpg
Silver Ninety Three is offline
Reply
Old 11-17-2003, 07:42 PM
  #4
Senior Member
Thread Starter

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
...

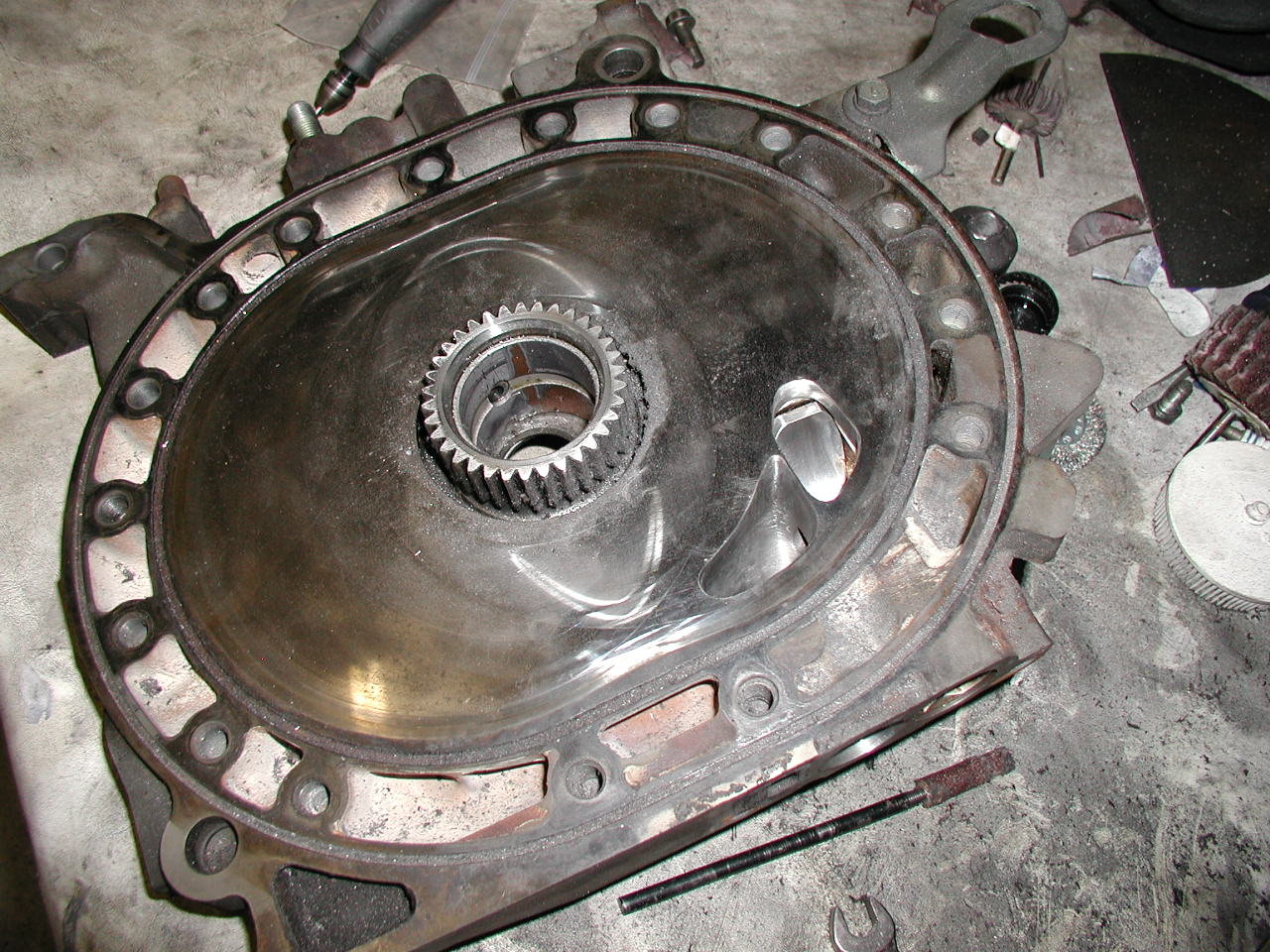

Attached Thumbnails Porting The 5th And 6 Ports With Sleaves?-6port2.jpg
Silver Ninety Three is offline
Reply
Old 11-17-2003, 07:44 PM
  #5
Senior Member
Thread Starter

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
...

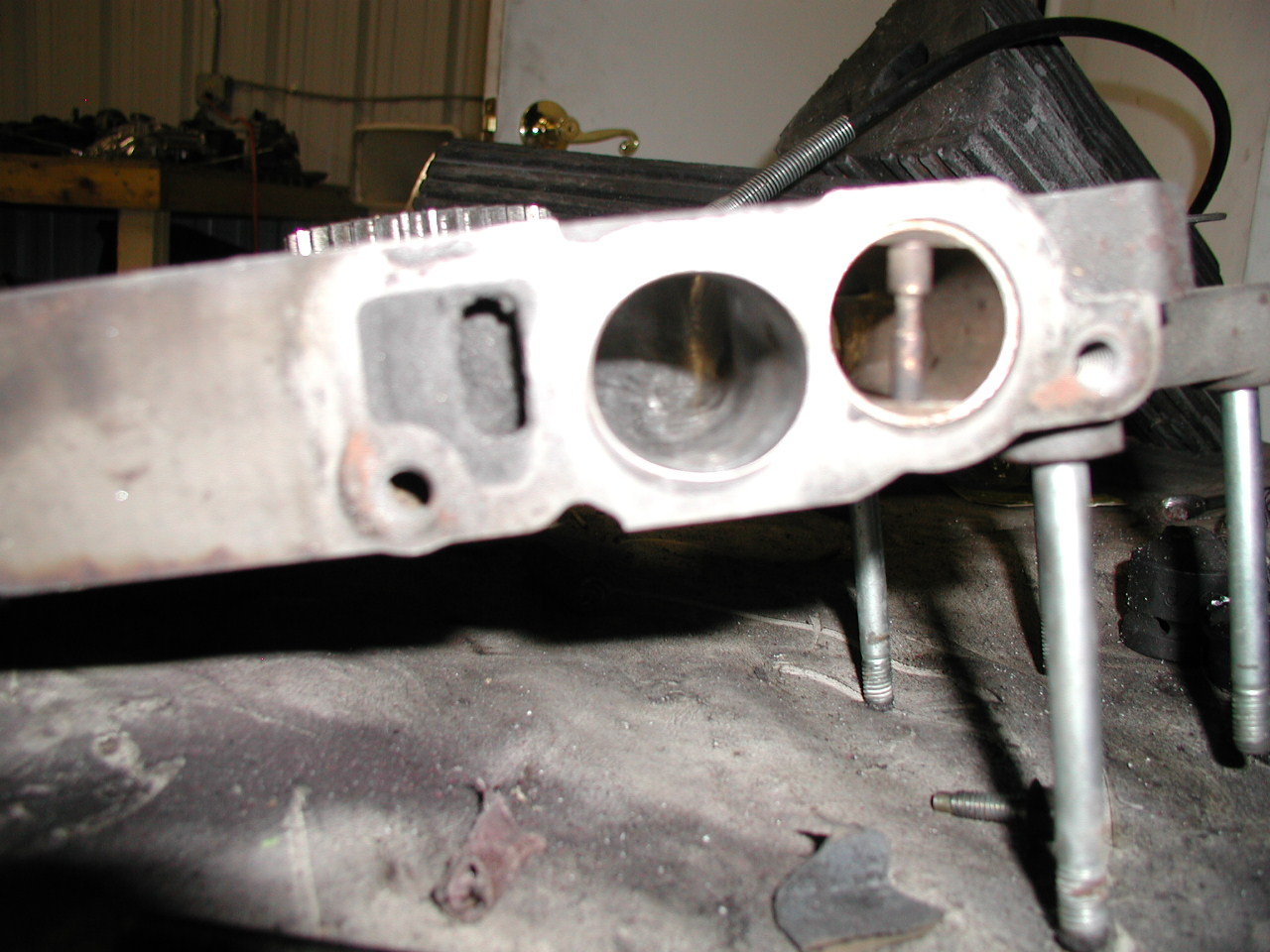

Attached Thumbnails Porting The 5th And 6 Ports With Sleaves?-6port3.jpg
Silver Ninety Three is offline
Reply
Old 11-17-2003, 08:25 PM
  #6
Senior Member

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default
yep, matching that sleeve to the port will work VERY nicely
Apex13B is offline
Reply
Old 11-19-2003, 12:42 AM
  #7
Senior Member
Thread Starter

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
What do you think of the port? Its not 100% done yet.
Silver Ninety Three is offline
Reply
Old 11-19-2003, 07:41 PM
  #8
Senior Member

Apex13B's Avatar

Join Date: Nov 2002
Location: Colorado Springs
Posts: 1,679
Default
Originally Posted by Silver Ninety Three' date='Nov 19 2003, 01:42 AM
What do you think of the port? Its not 100% done yet.
it needs a bridge
Apex13B is offline
Reply
Old 11-19-2003, 07:48 PM
  #9
Super Moderator

mazdaspeed7's Avatar

Join Date: Sep 2002
Location: Savannah, Ga
Posts: 2,763
Default
Originally Posted by Apex13B' date='Nov 19 2003, 09:41 PM
it needs a bridge
Like so?



mazdaspeed7 is offline
Reply
Old 11-19-2003, 08:09 PM
  #10
Senior Member
Thread Starter

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
I wanted to bridge it, but the car is going to be a daily driver and I don't want to spend the money on engine management.
