My Rx3 Sp Coming Along.

Thread Tools

Search this Thread

Old 12-01-2003, 07:06 PM
  #1
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default

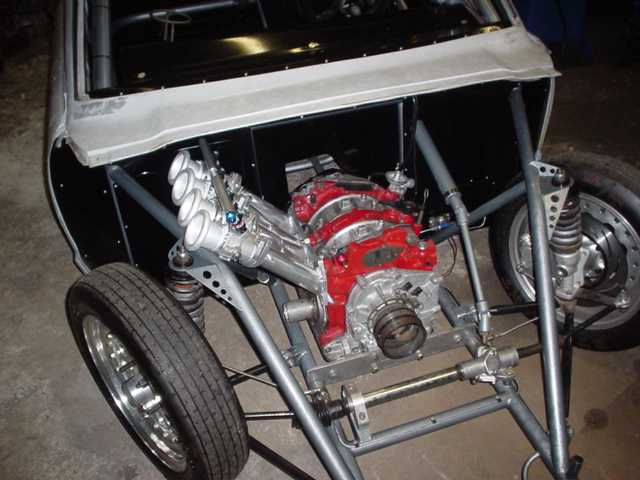

I'll take better pics, but for now enjoy these pics. Engine is a 93 FD ported to cosmo spec large ports. I'm using dual 55 mm throttle body and 4 650cc RC engineering injectors.
Attached Thumbnails My Rx3 Sp Coming Along.-mazda_rx3_in_shop.jpg
Judge Ito is offline
Reply
Old 12-01-2003, 07:08 PM
  #2
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default
more pics

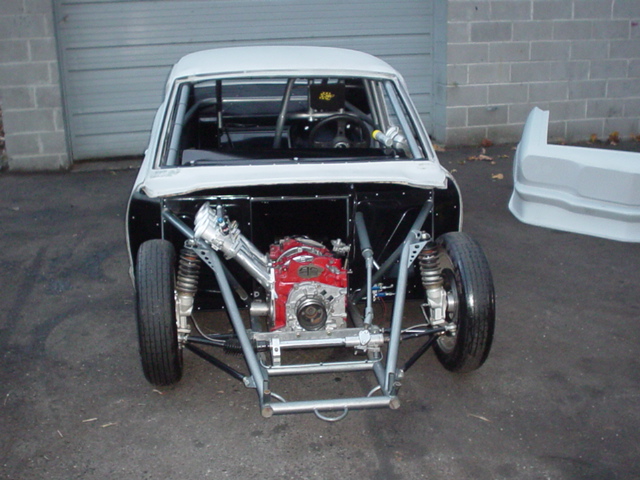

Attached Thumbnails My Rx3 Sp Coming Along.-mazda_rx3_part_iii.jpg
Judge Ito is offline
Reply
Old 12-01-2003, 07:12 PM
  #3
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default
It took more then 12 hours to fab this manifold. Man I was tired. The primary injectors(the ones in the middle) are feeding the center side housing and the semi p-port
Judge Ito is offline
Reply
Old 12-01-2003, 07:14 PM
  #4
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default
Ill post more detailed pics of the manifold tomorrow..
Judge Ito is offline
Reply
Old 12-01-2003, 07:18 PM
  #5
Senior Member

rotarychainsaw's Avatar

Join Date: Nov 2001
Location: South Jersey
Posts: 888
Default
Gah!!
rotarychainsaw is offline
Reply
Old 12-01-2003, 07:18 PM
  #6
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default

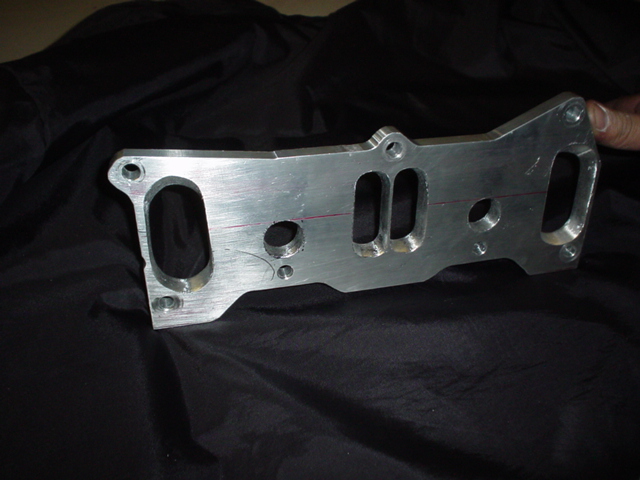

This was the beggining of the manifold.
Attached Thumbnails My Rx3 Sp Coming Along.-beggining_of_my_new_manifold.jpg
Judge Ito is offline
Reply
Old 12-01-2003, 07:22 PM
  #7
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default
another pic. Love the Rx3's

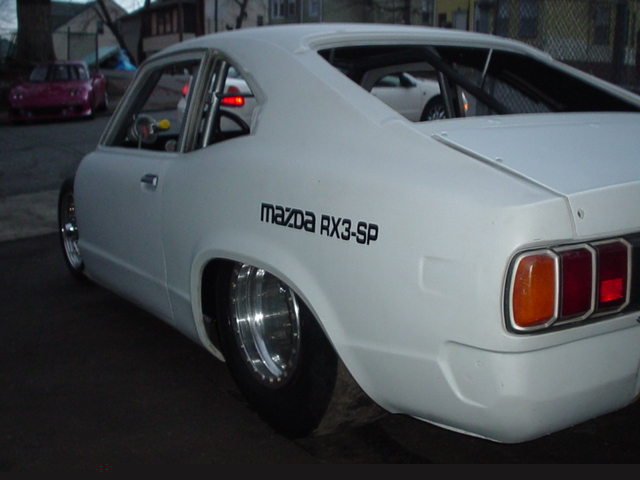

Attached Thumbnails My Rx3 Sp Coming Along.-mazda_rx3_rear_part_ii.jpg
Judge Ito is offline
Reply
Old 12-01-2003, 07:23 PM
  #8
Senior Member

93 R1's Avatar

Join Date: Sep 2002
Location: Maryland
Posts: 3,867
Default
Is that Vosko's old motor?
93 R1 is offline
Reply
Old 12-01-2003, 07:24 PM
  #9
Senior Member
Thread Starter

Judge Ito's Avatar

Join Date: Jan 2002
Location: NJ USA
Posts: 1,915
Default
Originally Posted by 93 R1' date='Dec 2 2003, 01:23 AM
Is that Vosko's old motor?
No. My motor has been built for about a year now. My engine is semi peripheral. his is a simple large streetport
Judge Ito is offline
Reply
Old 12-01-2003, 07:31 PM
  #10
Senior Member

93 R1's Avatar

Join Date: Sep 2002
Location: Maryland
Posts: 3,867
Default
Thats right
93 R1 is offline
