kahren

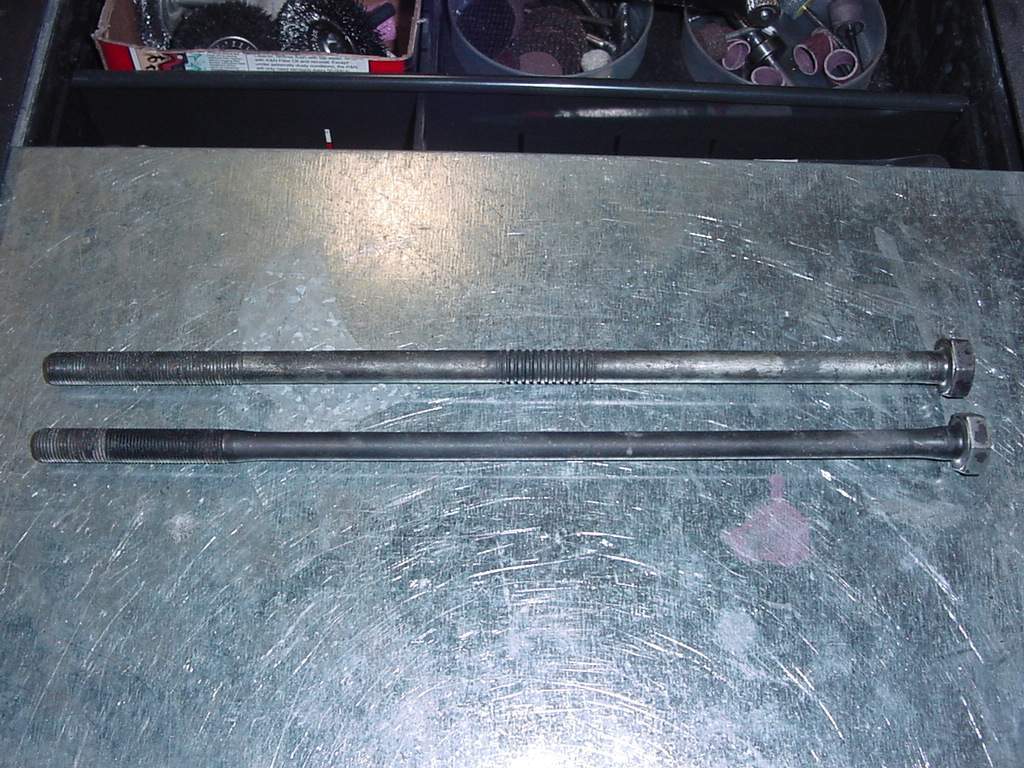

thought some of you might want to see this

ryosuke_fc

That's pretty interesting. So far, I've only rebuilt my S4 turbo engine. I was unaware that the S5 had that threaded or ribbed part or whatever you want to call it in the middle. They also appear to be quite a bit thicker. Are they known to be much stronger/more durable than the S4 parts?

RETed

And Cosmo one are even thicker...

Who cares - these things rarely break, so there's no reason to run thicker ones.





-Ted

j9fd3s

the ribbing is there to try and reduce a harmonic around 8500rpms, that snaps bolts. the s5's rev higher than the s4's, but they do rarely break, although gtus kevin has broken like 4-5 of them.....

BDC

I broke one of those on my old 87 NA about 11 years ago. It was one of the lower ones near the exhaust; can't remember which tension bolt # it was. The flywheel struck it then bent it in a right-angle shape; pretty wicked looking.



B

Jeff20B

I've seen a picture of a flywheel-raped tension bolt. It bent at a 90º angle.



Some 20B bolts have two ribbed sections.

BDC

One of the things I do is put a small layer of Ultra Black or some other RTV silicone around the center part of the bolt to help dampen the vibrations caused at high RPM's. From what I've been told, "it's an old racer's trick". Seems to work well.



B

RETed

We're trying to develop a safety plate to prevent damage to the tension bolts if they do back out of the holes.





-Ted

Jeff20B

That's a good idea. Will it use the stationary gear bolts to hold it against the tension bolts?

RETed

Yep, just like the pics in the H2MY RX-7 book...





-Ted
