Initial Firing Up Of A Rebuilt Engine
10-19-2003, 09:09 PM
#1
Member
Thread Starter
Join Date: Aug 2003
Location: Sydney, Australia
Posts: 59
This is my first rebuild of a rotary engine (13B PP) and I am wondering what oil should I use intially to run the engine in? and what is the procedure for running in? I've seen websites that suggest running in over two days gradually building up the revs but others who own rotary-powered race cars say this is too extreme.
Any advice/experiences would be greatly appreciated.
Peter
Any advice/experiences would be greatly appreciated.
Peter
10-20-2003, 10:13 AM
#2
Senior Member
Join Date: Jan 2003
Location: Perth, Western Australia
Posts: 267
Use a good quality mineral oil. I know this is an old debate, but Mazda Australia released a bulletin recently in relation to RX-8's, saying they are not to have any form of synthetic in them (even blends), and likewise for the older rotaries. MA are now recommending unblended mineral oil. Enough on that for now.
Depending on what is new in your motor, if it's just apex seals then a few hundred k's of light driving should be fine (I know it's a PP, but try to keep the revs below 5000).
If bearings and all seals were replaced, then probably about 1000 k's should do. Just don't over-rev.
If you used second hand imperfect housings then it may take a while longer for the seals to bed in to the housing face.
The secret is not to thrash them at first. After 500 or 1000 k's replace oil and filter. Just use a good mineral oil- there are plenty to choose from.
Good luck!
Depending on what is new in your motor, if it's just apex seals then a few hundred k's of light driving should be fine (I know it's a PP, but try to keep the revs below 5000).
If bearings and all seals were replaced, then probably about 1000 k's should do. Just don't over-rev.
If you used second hand imperfect housings then it may take a while longer for the seals to bed in to the housing face.
The secret is not to thrash them at first. After 500 or 1000 k's replace oil and filter. Just use a good mineral oil- there are plenty to choose from.
Good luck!
10-20-2003, 05:47 PM
#3
Member
Thread Starter
Join Date: Aug 2003
Location: Sydney, Australia
Posts: 59
Thanks Andy,
I am using new front and rear stationary gears, bearings, used rotors, used e-shaft, and all new gaskets and apex seals.
I spoke with my engine guy last night and he also recommended a good mineral oil eg. Valvoline XLD 20X-50.
Looks like I have to return my Castrol R to SuperCheap! But I can but 15 litres of XLD for the price of the 'R'.
I am using new front and rear stationary gears, bearings, used rotors, used e-shaft, and all new gaskets and apex seals.
I spoke with my engine guy last night and he also recommended a good mineral oil eg. Valvoline XLD 20X-50.
Looks like I have to return my Castrol R to SuperCheap! But I can but 15 litres of XLD for the price of the 'R'.
10-21-2003, 07:18 AM
#5
Senior Member
Join Date: Dec 2002
Location: Queens, New York
Posts: 204
I don't know what the beef is with the synthetic oils, but as far as break-in is concerned a good mineral oil is recomended. But do you know why the mineral oil is recommended instead of synthetic for the break-in period?
PK797 NYC
PK797 NYC
10-21-2003, 08:54 AM
#6
Senior Member
Join Date: Jan 2003
Location: Perth, Western Australia
Posts: 267
The beef with synthetic oil is that it has been attacking the oil control seals (the rubber/silicone/neoprene whatever part) which leads to premature failure and excessive oil consumption.
Don't question me, I'm only the messenger. Mazda Australia released a technical bulletin on this very recently and I read it at Rotomotion Engineers here in Perth.
As I said, I don't want to get into a great debate into it, just passing on what I saw with my own eyes...
Don't question me, I'm only the messenger. Mazda Australia released a technical bulletin on this very recently and I read it at Rotomotion Engineers here in Perth.
As I said, I don't want to get into a great debate into it, just passing on what I saw with my own eyes...
10-21-2003, 09:47 AM
#7
Senior Member
Join Date: Jan 2003
Location: London, Ontario
Posts: 2,871
10-21-2003, 03:45 PM
#9
Member
Thread Starter
Join Date: Aug 2003
Location: Sydney, Australia
Posts: 59

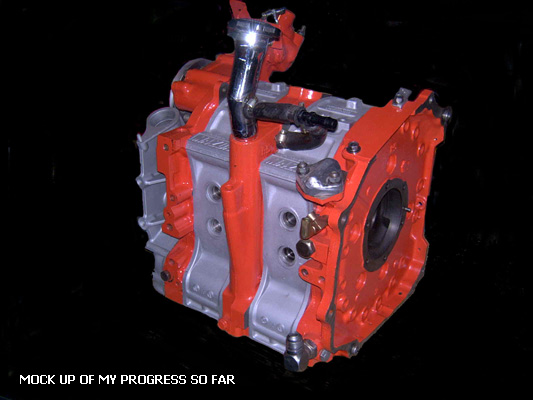

Yes, those are R5 endplates.
You should use a good mineral oil for break-in, I exchanged the Castrol R for Valvoline XLD Plus 20W-50, which I will also use after the motor is run in.
According my engine guy the rotary engine needs to break down the oil for lubrication and cooling, and it is much harder to break down a synthetic, even a synthetic-enhanced mineral oil.
Even though most of the guys I speak to out at the track use a synthetic, I do remember reading somewhere a few years ago that synthetics were not advisable for rotary engines.
My engine guy said not to use a specific 'running-in' oil either. The Valvoline XLD Plus is more than suited to both run-in and day-to-day use, or track use, in my case.
And, yes, the engine is from the 70's. I believe it was out of an RX-5, as it came with two RX-5 gearboxes when I bought it. I have now switched to a Supra 5 speed as the two Mazda boxes weren't up to the task!
See my website, if you're interested in more details and photos:
http://users.tpg.com.au/adslljrb/index.asp
If you are interested in more engine photos, I can post later.
Regards,
Peter
You should use a good mineral oil for break-in, I exchanged the Castrol R for Valvoline XLD Plus 20W-50, which I will also use after the motor is run in.
According my engine guy the rotary engine needs to break down the oil for lubrication and cooling, and it is much harder to break down a synthetic, even a synthetic-enhanced mineral oil.
Even though most of the guys I speak to out at the track use a synthetic, I do remember reading somewhere a few years ago that synthetics were not advisable for rotary engines.
My engine guy said not to use a specific 'running-in' oil either. The Valvoline XLD Plus is more than suited to both run-in and day-to-day use, or track use, in my case.
And, yes, the engine is from the 70's. I believe it was out of an RX-5, as it came with two RX-5 gearboxes when I bought it. I have now switched to a Supra 5 speed as the two Mazda boxes weren't up to the task!
See my website, if you're interested in more details and photos:
http://users.tpg.com.au/adslljrb/index.asp
If you are interested in more engine photos, I can post later.
Regards,
Peter
10-21-2003, 06:25 PM
#10
Member
Thread Starter
Join Date: Aug 2003
Location: Sydney, Australia
Posts: 59
A quick look around the Net yeilded the following information, which more or less, fits in with what this thread has already discussed:
"The Rotary engine has an oil injection system that injects small amounts of oil into either the intake tract, carb, or rotor housing (depending on year/model). This is needed to lubricate the various internal seals and surfaces."
furthermore,
"The Oil Metering Pump injects a deliberate amount of oil into the carburetor for the engine to burn. The nature of non-synthetic oils is that they leave a slippery residue even after the combustion process. This residue is what hangs around inside your engine to keep the Apex Seals wet. Synthetic oils burn too clean to lubricate the compression seals in a rotary."
My racing engine (13BB PP) has the OMP deleted. That is why I add 120-130mls of a good 2-stroke oil like Castol 747 (Castor) to every 20Liters of PULP fuel.
I have some photos to illustrate above which I will post tonite.
Cheers
"The Rotary engine has an oil injection system that injects small amounts of oil into either the intake tract, carb, or rotor housing (depending on year/model). This is needed to lubricate the various internal seals and surfaces."
furthermore,
"The Oil Metering Pump injects a deliberate amount of oil into the carburetor for the engine to burn. The nature of non-synthetic oils is that they leave a slippery residue even after the combustion process. This residue is what hangs around inside your engine to keep the Apex Seals wet. Synthetic oils burn too clean to lubricate the compression seals in a rotary."
My racing engine (13BB PP) has the OMP deleted. That is why I add 120-130mls of a good 2-stroke oil like Castol 747 (Castor) to every 20Liters of PULP fuel.
I have some photos to illustrate above which I will post tonite.
Cheers
