ok i got it all figured out except the input slot circled in green. wtf is that for. i got this cd player from friend who didn't have any literature. also the plug-ins for the front and back speakers i have to get some tv style male plugs correct? is there any special kind or do all players use one kind? i noticed that the bottom plug slots have a little notch in them.. that make a diff? thanks



thats where the mail wiring harness plugs in, you didnt get a harness with the radio? Its notched so you know what end is up in the harness.



How could you have "figured it all out" without the having the main harness? Is the radio itself marked as to what wire does what on where the harness plugs in?

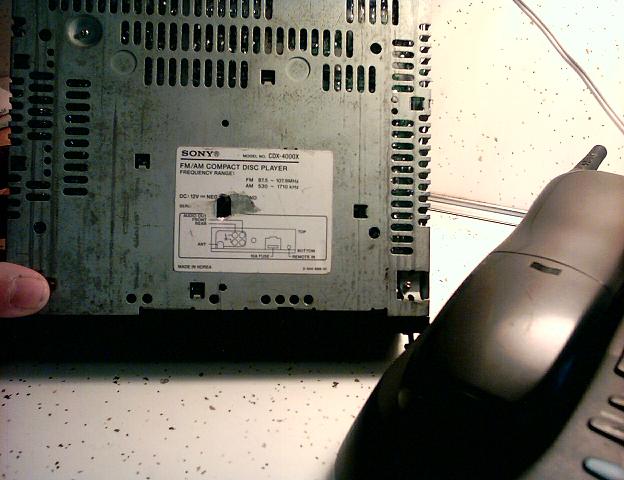

what i meant by i figuring it out, is by this diagram and from the wiring guide on the site in the faq section. i was thinking that i could get some plugs for the 4 plugins and combine the wires from each speaker into them... i'm guessing this is not going to work... why would you need the harness? to use it as an adapter from the stock plugs to the ones that fit the cd player? i am starting to see the light...so anyway, can i bypass this problem? or do i have to get the damn harness?



damnit! there is no plug-in hole for a power source so i can't even look at the pretty lights! i'm thinkin that was on the harness as well... anybody have expierience with these ****** things?



they sell harnesses in e bay



your gonna need to get the harness before you can do anything with that radio. And then good luck figuring out the wires with no paper work.



well i have the wires figured out and i checked ebay and found a harness...gonna be a while though,



by harness its the radio harness, not the harness for your car



so if you hook up the speakers and power through the harness what are those female plugs for?



Amp outputs...whats its say under them?
