2004 Texas A&m Fsae Update
#21
Originally Posted by Travis R' date='Mar 17 2004, 08:39 AM
Congrats! We're a little behind schedule... hoping to have the car sprung shortly after spring break. I welded 5 out of the 8 a-arms yesterday.
Luckily the motor and all the wiring are pretty much ready to drop in.
Luckily the motor and all the wiring are pretty much ready to drop in.
#22
i see yall also have a body where you have to remove the suspension to take off the body? it might look good, but it 's the biggest PITA!
oh well, we only have to put it on and take it off for roll-out and the competition, we wont test and tune with it on.
i'll get pics of the paint job.

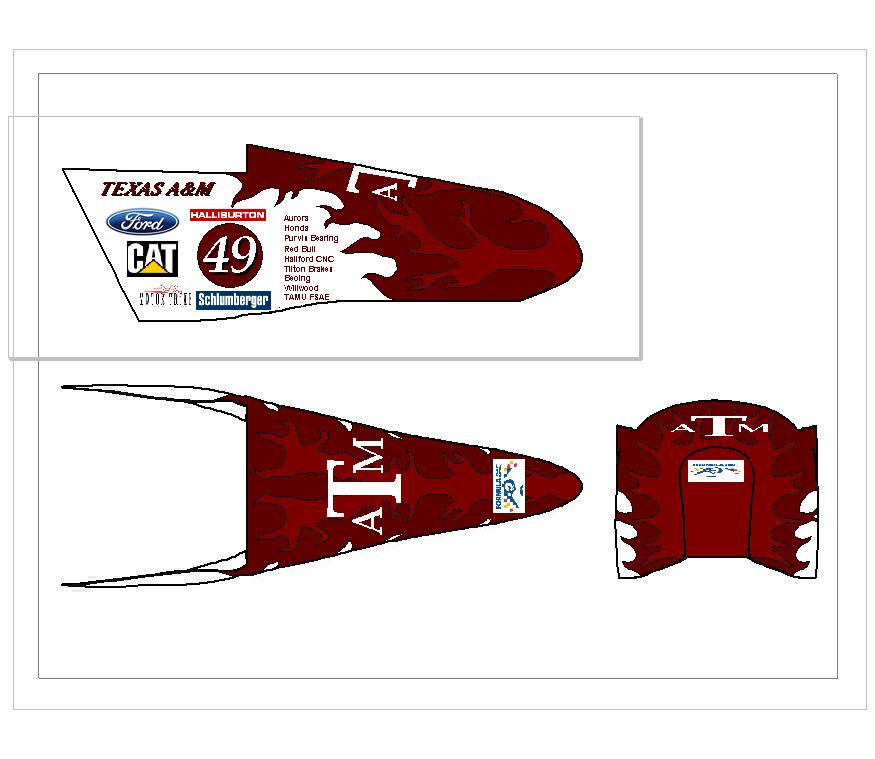

here's how it's supposed to look (my idea):
oh well, we only have to put it on and take it off for roll-out and the competition, we wont test and tune with it on.
i'll get pics of the paint job.
here's how it's supposed to look (my idea):
#24
Originally Posted by RX7Aggie' date='Mar 18 2004, 12:00 AM
i mean the shocks seem too stiff in compression, stiffer than what they dyno plots show. on the lowest setting, we hardly can compress them by hand, and in the past with the rock shox and rissis we could. i'm going to talk to fox about it. supposedly they removed the pro-pedal damping, and maybe they charged the nitrogen too much and it stiffened it up.
our installation ratio is set at 0.70, using the entire movement of the shock. we dont want to lower it because that will decrease the range of adjustment.
i like the CF A-arms
that box is busy, crazy looking. for the rear that is. i hate CNC because IT TAKES SOOO LONG. in house, you ahve to have a programmer for the machine. outhouse, it costs lots of money and/or it gets backed up.
this year, we went welded sheet for most things. whenver we did that in the past (2000, 2001), we did the best, winning 1st in '00 and 5th on '01. both with pullrods. so, we did pullrods again.
what is your body? fiberglass? we did CF last year, but you have to cost it at $100 / lb, and ours weighed like 12 lbs including side pods; $1200 wasted.
this ABS plastic is $15 / sheet, and it takes 3 sheets to do our complete body!!!! plus cost of 15 sec to pull the body out of the oven, turn on the vaccuum, and cool it with rags. our body will be less than $100 this year, hehe.
our diff assembly is cool, it emphasizes direct load paths between it and the engine. weighs like 3 lb less than last year, and we are using Ti halfshafts, hehe.
our installation ratio is set at 0.70, using the entire movement of the shock. we dont want to lower it because that will decrease the range of adjustment.
i like the CF A-arms
that box is busy, crazy looking. for the rear that is. i hate CNC because IT TAKES SOOO LONG. in house, you ahve to have a programmer for the machine. outhouse, it costs lots of money and/or it gets backed up.
this year, we went welded sheet for most things. whenver we did that in the past (2000, 2001), we did the best, winning 1st in '00 and 5th on '01. both with pullrods. so, we did pullrods again.
what is your body? fiberglass? we did CF last year, but you have to cost it at $100 / lb, and ours weighed like 12 lbs including side pods; $1200 wasted.
this ABS plastic is $15 / sheet, and it takes 3 sheets to do our complete body!!!! plus cost of 15 sec to pull the body out of the oven, turn on the vaccuum, and cool it with rags. our body will be less than $100 this year, hehe.
our diff assembly is cool, it emphasizes direct load paths between it and the engine. weighs like 3 lb less than last year, and we are using Ti halfshafts, hehe.
What spring rates are u using?
I'm not sure about the prodampening, the shocks we run are from the 2002 model year.
We are using roughly between 0.6 to 0.9 installation ratio for the rear, the front is roughly 0.8??? i think, i can't remember. We too use almost the full range of the shock travel.
What type of suspension are you using? pull or push rod system?
What is wrong with CNC? it's great, you program it and you go home... we have 3 brand new HAAS CNC machines, one of which have auto tool change. the other two are not, and there are 2 older older CNC machines.
we also ahve three CNC lathes
Solidedge can save an IGS file, and then you load the IGS file into mastercam mill/lathe9 and u define the tool path, could'nt be easier. We'll easy for several on the team.
The precision and speed of CNC is amazing.
Our body is made from Al skin-Balsa core sheet, used normally to line hte floors of cargo planes. Strength and stiffness is amazing, unless it gets wet... water + balsa core = rot = crash.
Our car is made into a monocoque for the front with an chromoloy/mono hybrid this year. The only thing fibreglass on the car is the front nose cone, i think it's 3 layers of fibreglass, took 2 people 3 weeks to shape it they would say they made it. the fibreglass is purchased from UScomposites, it is 6 oz e glass cloth.
The nose cone can be taken on and off in 5 seconds, no suspension peicies need to be removed, think of cart/irl/f1 style nose cone, except our does not carry any loads.
We use a diff off a honda ATV, it is more then 1/2 the weight of a zexel torsen unit. I'm not sure on teh specs.
Our halfshafts are also from some ATV. We modify them on the CNC lathe.
The wheels are bogart racing, super light, it think each wheel weighed in at less then 7 lbs each? i can't remember.
#27
Originally Posted by Apex13B' date='Mar 18 2004, 11:04 PM
i still think the rear roll center looks fucked up, maybe if i was there in person it would look different.
I've got our shop's car apart still, its almost done (stupid reynard xtrac gearbox)
I've got our shop's car apart still, its almost done (stupid reynard xtrac gearbox)
I didn't even really use roll centres to design the rear suspension. Why would u when there are software that can account for the change in the roll centre heights as the suspension moves?
#28
Originally Posted by inanimate_object' date='Mar 18 2004, 01:46 PM
What exactly am I looking at here - looks very interesting .
Mark
Mark
2003 Formula SAE® Rules 7
1. CONCEPT OF THE COMPETITION
1.1 COMPETITION OBJECTIVE
The Formula SAE® competition is for SAE student members to conceive, design,
fabricate, and compete with small formula-style racing cars. The restrictions on the
car frame and engine are limited so that the knowledge, creativity, and imagination
of the students are challenged. The cars are built with a team effort over a period of
about one year and are taken to the annual competition for judging and comparison
with approximately 120 other vehicles from colleges and universities throughout the
world. The end result is a great experience for young engineers in a meaningful
engineering project as well as the opportunity of working in a dedicated team effort.
1.2 VEHICLE DESIGN OBJECTIVES
For the purpose of this competition, the students are to assume that a manufacturing
firm has engaged them to produce a prototype car for evaluation as a production
item. The intended sales market is the nonprofessional weekend autocross racer.
Therefore, the car must have very high performance in terms of its acceleration,
braking, and handling qualities. The car must be low in cost, easy to maintain, and
reliable. In addition, the car’s marketability is enhanced by other factors such as
aesthetics, comfort and use of common parts. The manufacturing firm is planning to
produce four (4) cars per day for a limited production run and the prototype vehicle
should actually cost below $25,000. The challenge to the design team is to design
and fabricate a prototype car that best meets these goals and intents. Each design will
be compared and judged with other competing designs to determine the best overall
car.
1.3 JUDGING CATEGORIES
The cars are judged in a series of static and dynamic events including: technical
inspection, cost, presentation, and engineering design, solo performance trials, and
high performance track endurance. These events are scored to determine how well
the car performs. In each event, the manufacturing firm has specified minimum
acceptable performance levels that are reflected in the scoring equations. The
following points are possible:
2003 Formula SAE® Rules 8
Static Events
Presentation 75
Engineering Design 150
Cost Analysis 100
Dynamic Events
Acceleration 75
Skid-Pad 50
Autocross 150
Fuel Economy 50
Endurance 350
Total Points 1,000
1.4 THE 2004 FORMULA SAE SERIES
The 2004 Formula SAE Series consists of three (3) competitions:
1. Formula SAE held in the United States
2. Formula Student held in the United Kingdom
3. Formula SAE Australasia held in Australia.
All Formula SAE competitions have open registration policies and accept student
teams representing universities from any country.
Formula Student and Formula SAE Australasia may have some minor rule variations
specific to those competitions. Such variations are published on the individual
competition websites.
1.5 THE FORMULA SAE COMPETITION YEAR
For the purpose of defining first, second and third year cars a competition “year” is
any consecutive run of the Series, i.e. Formula SAE, Formula Student and Formula
SAE – Australasia, held within a roughly 12 month period counting from the event
in which a vehicle first competes. For example, a car that competes first in Formula
SAE Australasia is classified as a “first year car” until the following year’s Formula
SAE Australasia competition.
Note: Teams are reminded that their vehicles must comply with the rules in effect
for each competition they enter.
2. ELIGIBILITY
2.1 INDIVIDUAL PARTICIPANT REQUIREMENTS
Eligibility is limited to undergraduate and graduate students to insure that this is an
engineering competition rather than a race. Individual members of teams
participating in this competition must satisfy the following requirements:
Student Status: Team members must be enrolled as degree seeking undergraduate or
graduate students in a college or university. Team members who have graduated
during the seven (7) month period prior to the competition remain eligible to
participate. Team members must be paid SAE members to compete.
#29
because i'm old school cheers, to me CAD means cardboard aided design.
i cant invest tens of thousands of dollars in solidworks, PROe and autoCAD to mathamatically compensate a roll center on a car, or goemetric changes as the suspensions compresses and rebounds
i cant invest tens of thousands of dollars in solidworks, PROe and autoCAD to mathamatically compensate a roll center on a car, or goemetric changes as the suspensions compresses and rebounds
#30
true, i haven't redesigned my Fc suspension system yet.
=)
U technically don't need all that fancy crap, simple geometry and using numerical approximations can determine the amount of camber gain during wheel centre displacements.
I miss the good old days.
=)
U technically don't need all that fancy crap, simple geometry and using numerical approximations can determine the amount of camber gain during wheel centre displacements.
I miss the good old days.
