Engine Swaps All about engine changeovers,swaps and related issues.

peripheral intake

Thread Tools

Search this Thread

Old 09-26-2002, 10:59 AM
  #1
to infinity & beyond, me
Thread Starter

treceb's Avatar

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default
ok, peripheral inatke is the best bang for your buck, correct. downside is high idle and loudness.

what would be the advantages of an intake like this?

is there a lot of work involved?

are there any companies that would tackle such job?

thanks

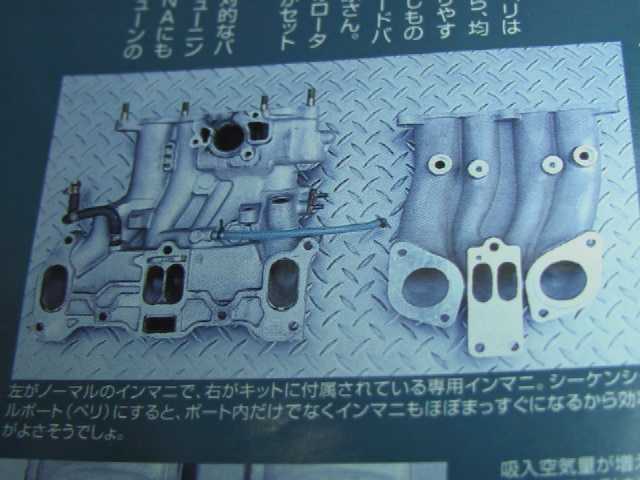

heres the intake work im talking about.
Attached Thumbnails peripheral intake-intake.jpg
treceb is offline
Reply
Old 09-26-2002, 07:20 PM
  #2
Senior Member

isamu's Avatar

Join Date: Oct 2001
Location: Marysville WA.
Posts: 1,847
Default
Hey thats a pretty cool pic. So for the exhaust would you still be able to use the stock openings or would you have to make them out the side housings? Doesn't the Renesis push the the exhaust out of the front and rear housings instead of the rotor housings?
isamu is offline
Reply
Old 09-27-2002, 06:10 AM
  #3
to infinity & beyond, me
Thread Starter

treceb's Avatar

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default

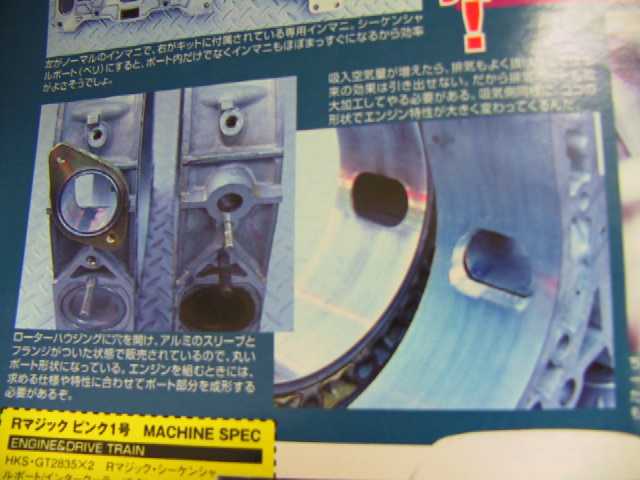

intake and exhaust
Attached Thumbnails peripheral intake-int_exh.jpg
treceb is offline
Reply
Old 09-27-2002, 06:11 AM
  #4
to infinity & beyond, me
Thread Starter

treceb's Avatar

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default

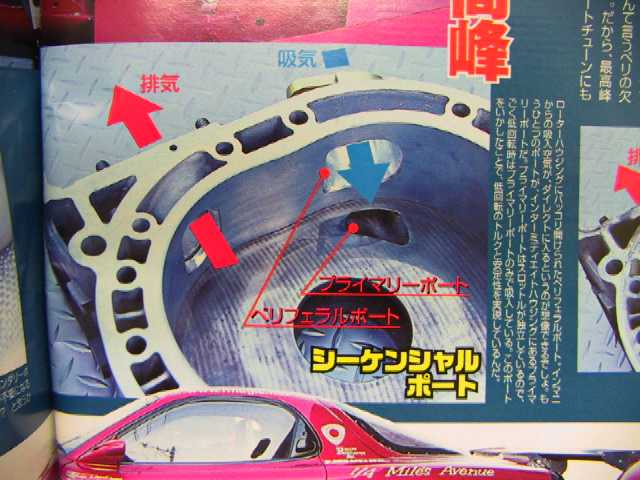

intake-exhaust flow
Attached Thumbnails peripheral intake-int_exhflow1.jpg
treceb is offline
Reply
Old 09-27-2002, 06:11 AM
  #5
to infinity & beyond, me
Thread Starter

treceb's Avatar

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default

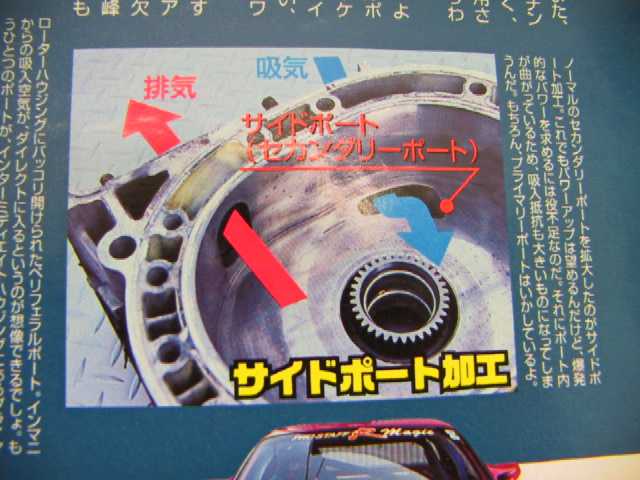

intake-exhaust flow
Attached Thumbnails peripheral intake-int_exhflow2.jpg
treceb is offline
Reply
Old 09-27-2002, 06:12 AM
  #6
to infinity & beyond, me
Thread Starter

treceb's Avatar

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default
.

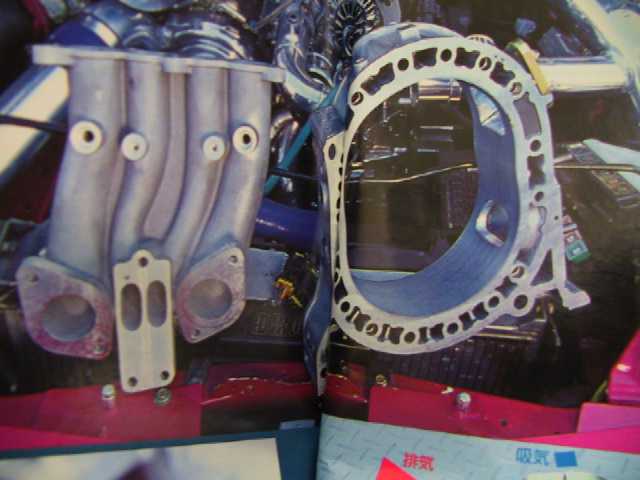

Attached Thumbnails peripheral intake-int_hou.jpg
treceb is offline
Reply
Old 09-27-2002, 07:13 AM
  #7
Banned

SoRRoW's Avatar

Join Date: Jan 2002
Posts: 2,068
Default
Wheres a translator when you eed one...



Did you see them ****** intake ports...dam
SoRRoW is offline
Reply
Old 09-27-2002, 01:17 PM
  #8
Senior Member

isamu's Avatar

Join Date: Oct 2001
Location: Marysville WA.
Posts: 1,847
Default
DAMN thats cool! The peripheral and exhaust ports seem so close together though.
isamu is offline
Reply
Old 09-28-2002, 03:43 AM
  #9
dac
Senior Member

dac's Avatar

Join Date: Oct 2001
Location: Portland, OR
Posts: 790
Default
PP gives you very little bottom end (Power is from 3-4K and up)



There is so much overlap it's like having a HUGE Racing cam in a Piston motor. I think can also be problems with reversion, where the air flow (and fuel are pushed out the intake ports).



But PP's make great power. 250 HP for a 13B N/A is comon.
dac is offline
Reply
Old 09-28-2002, 05:03 AM
  #10
to infinity & beyond, me
Thread Starter

treceb's Avatar

Join Date: Aug 2001
Location: santurce
Posts: 5,124
Default
Originally Posted by dac' date='Sep 28 2002, 05:43 AM
PP gives you very little bottom end (Power is from 3-4K and up)



There is so much overlap it's like having a HUGE Racing cam in a Piston motor. I think can also be problems with reversion, where the air flow (and fuel are pushed out the intake ports).



But PP's make great power. 250 HP for a 13B N/A is comon.
my guess is, plus ive been told, but not from anyone whio has actually done it. thats why you keep the center ports. gives you a little better low end. but i could be wrong.
treceb is offline
Reply
