3rd Generation Specific Talk about 3rd gen RX-7's here.

Rotor Replacement

Thread Tools

Search this Thread

Old 03-14-2004, 07:13 PM
  #1
Member
Thread Starter

1fastsvn's Avatar

Join Date: Oct 2002
Posts: 78
Default

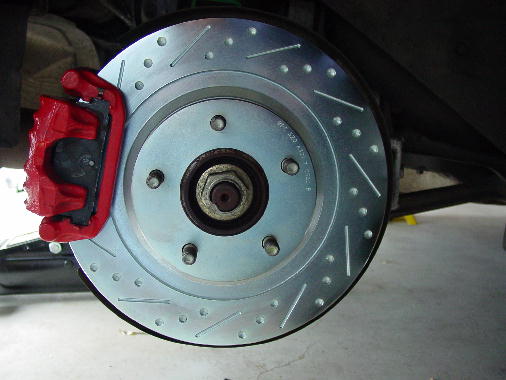

how do you know which direction the vanes face. how do you know if it is right or left based on the direction of the vanes. this is my right rear (driver side) is it correct?
Attached Thumbnails Rotor Replacement-rotor.jpg
1fastsvn is offline
Reply
Old 03-14-2004, 09:43 PM
  #2
Senior Member

Fd3BOOST's Avatar

Join Date: Jun 2002
Location: La Plata, Maryland
Posts: 9,725
Default
I think you have it right Kevin. I would leave it the way you have it.
Fd3BOOST is offline
Reply
Old 03-14-2004, 10:00 PM
  #3
Senior Member

Rotarian 1126's Avatar

Join Date: Feb 2004
Location: Elizabethtown, PA
Posts: 480
Default
looks good to me..
Rotarian 1126 is offline
Reply
Old 03-15-2004, 12:15 AM
  #4
Senior Member

Razerx's Avatar

Join Date: Mar 2003
Location: Santa Clara, CA
Posts: 231
Default
i don't think it matters, actually, style preference
Razerx is offline
Reply
Old 03-15-2004, 09:43 AM
  #5
Junior Member

TigerShyVII's Avatar

Join Date: Mar 2004
Posts: 1
Default
Ditto. Looks fine, keep it.
TigerShyVII is offline
Reply
Old 03-15-2004, 03:42 PM
  #6
Member
Thread Starter

1fastsvn's Avatar

Join Date: Oct 2002
Posts: 78
Default
thanks for the input guys...... i did more research. i don't think it matters unless the vanes the curved. thanks kvn
1fastsvn is offline
Reply
Old 03-15-2004, 08:39 PM
  #7
Senior Member

Silver Ninety Three's Avatar

Join Date: Oct 2001
Location: Clifton, NJ
Posts: 1,675
Default
Look at the vanes inside the rotor. You want them so they scoop air into the rotor. That looks correct, but I have seen a Stillen kit that needed then slots to face the other way.
Silver Ninety Three is offline
Reply
Old 03-16-2004, 10:47 AM
  #8
Senior Member

kahren's Avatar

Join Date: Jan 2002
Location: CT
Posts: 1,345
Default
i am pretty sure its the other way, but yea what silver93 said make sure the vanes are grabbign air
kahren is offline
Reply
Old 03-18-2004, 04:20 PM
  #9
Senior Member

LDawg's Avatar

Join Date: May 2002
Posts: 114
Default
Originally Posted by Silver Ninety Three' date='Mar 15 2004, 06:39 PM
Look at the vanes inside the rotor. You want them so they scoop air into the rotor. That looks correct, but I have seen a Stillen kit that needed then slots to face the other way.
If the vanes are curved, the direction that the spin matters most. The vanes should NOT be scooping the air. Air should be going from the center of the rotor and exiting the outer edge.
LDawg is offline
Reply
Old 03-18-2004, 04:28 PM
  #10
Senior Member

LDawg's Avatar

Join Date: May 2002
Posts: 114
Default
On slotted/x-drilled rotors, they should spin "reverse" i.e. the leading end of the slot should be the end closer to the outer edge. Therefore, the rotor in your picture should be on the passenger side.
LDawg is offline
Reply
