Help Me Figure Out My Intakes!
05-07-2003, 12:40 AM
#1
Senior Member
Thread Starter
Join Date: Aug 2002
Location: Denver, CO
Posts: 4,985

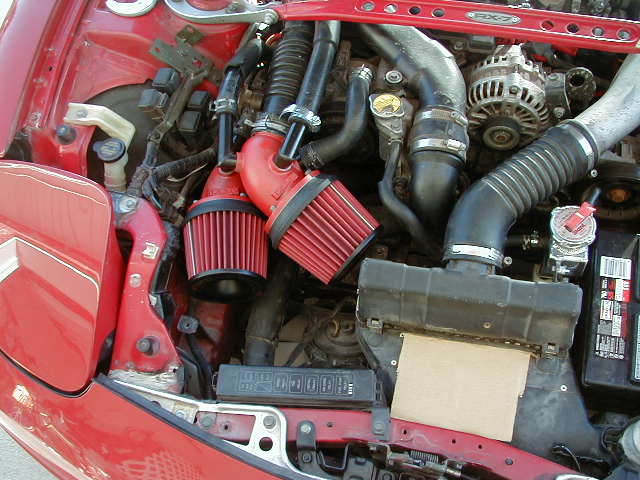

Hey, can anyone post a pic or a lend a little advice? I can't seem to figure out how to mount my Apex intakes. The bracket's don't line up and the intakes seem to be rotated too high to clear the hood...
I'm so lost! I can't read kanji and the drawing is sooooo small!!!!
TIA!
I'm so lost! I can't read kanji and the drawing is sooooo small!!!!
TIA!
05-07-2003, 01:05 AM
#2
Senior Member
Join Date: Aug 2001
Location: SV, NY
Posts: 2,066
Maybe this will work??
http://www.jayspec7.com/march2kpics.html
http://www.jayspec7.com/061201pics.html
http://www.jayspec7.com/march2kpics.html
http://www.jayspec7.com/061201pics.html
05-07-2003, 09:00 AM
#5
Senior Member
Thread Starter
Join Date: Aug 2002
Location: Denver, CO
Posts: 4,985
Negatory.. Those pics don't seem to contain any pctures of how the brackets are mounted.. at least now I see how the flanges are supposed to be rotated... I spent a good hour trying to figure it out last night before I posted, but it got dark. If anyone could explain anything to me, that'd be helpful.
I removed the Airbox bracket behind the intercooler to mount the long bar, and I tried rotating the fender side arbox mount so the 'L' bracket will reach the lower intake flange, and line up flat with it.. I think I was totally off... I'm lost!
I removed the Airbox bracket behind the intercooler to mount the long bar, and I tried rotating the fender side arbox mount so the 'L' bracket will reach the lower intake flange, and line up flat with it.. I think I was totally off... I'm lost!
05-07-2003, 10:42 AM
#7
Senior Member
Thread Starter
Join Date: Aug 2002
Location: Denver, CO
Posts: 4,985
Mine has three brackets. One is 2" or so long and 'L' shaped, looks like it mounts to the old aribox mount near the fender, spanning to the lower intake filter bolt. The second is 7 or 8 inches long and mounts to the subframe just to the left (when facing the engine) and behind the intercooler (I assume it mounts where the old intake mount screwed to the subframe). The third is short and bent twice, spanning from the lower filter flange to the upper filter flange.
Also Jay, my filter elements look different than yours. they are longer and taper; it appears yours are cylindrical. Oh, and my intake flanges are silver, not black.
Maybe I'll take some pics a little later. Can't do much about that from here at work! Thanks for the help thus far!
Also Jay, my filter elements look different than yours. they are longer and taper; it appears yours are cylindrical. Oh, and my intake flanges are silver, not black.
Maybe I'll take some pics a little later. Can't do much about that from here at work! Thanks for the help thus far!
05-07-2003, 01:08 PM
#10
Senior Member
Join Date: Aug 2001
Location: SV, NY
Posts: 2,066
Originally Posted by Sinful7' date='May 7 2003, 10:42 AM
Mine has three brackets. One is 2" or so long and 'L' shaped, looks like it mounts to the old aribox mount near the fender, spanning to the lower intake filter bolt. The second is 7 or 8 inches long and mounts to the subframe just to the left (when facing the engine) and behind the intercooler (I assume it mounts where the old intake mount screwed to the subframe). The third is short and bent twice, spanning from the lower filter flange to the upper filter flange.
Also Jay, my filter elements look different than yours. they are longer and taper; it appears yours are cylindrical. Oh, and my intake flanges are silver, not black.
Maybe I'll take some pics a little later. Can't do much about that from here at work! Thanks for the help thus far!
Also Jay, my filter elements look different than yours. they are longer and taper; it appears yours are cylindrical. Oh, and my intake flanges are silver, not black.
Maybe I'll take some pics a little later. Can't do much about that from here at work! Thanks for the help thus far!
I was staring at the brackets... and that's exactly how it goes.. just like you said...
