Driver Side Engine Harness
#1
Does anyone have a picture of the driver side engine harness either out of the car or in? I'm trying to loom mine back together and it's kind of a pain to figure out what wires go where. help me out here fellas.
-Dan
-Dan
#4

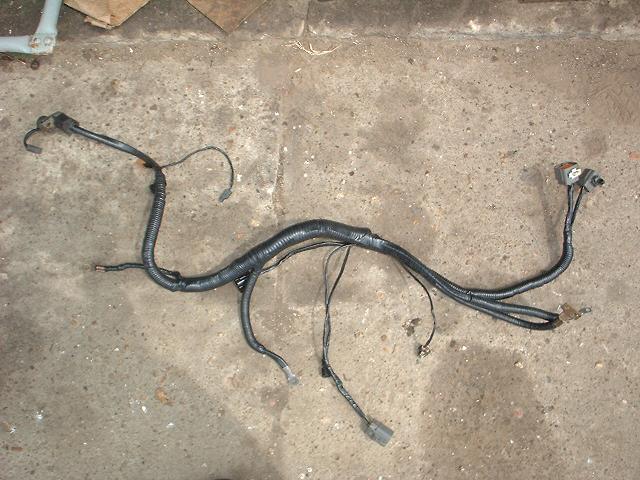

top/L can't remember (may be oil level on oil pan)
next down = oil pressure
next one - not shure
next black one - match with black one (A/C or P/S I think)
next one w/ring = ground or alternator?
next one - could be A/C or P/S?
next one - can't see it
next two = fuse box w/+ battery connection
last two = by fender and fuse box connect on to metal holder
uh, did that help any?
next down = oil pressure
next one - not shure
next black one - match with black one (A/C or P/S I think)
next one w/ring = ground or alternator?
next one - could be A/C or P/S?
next one - can't see it
next two = fuse box w/+ battery connection
last two = by fender and fuse box connect on to metal holder
uh, did that help any?
