Fd3BOOST

I know this is pretty boring stuff.

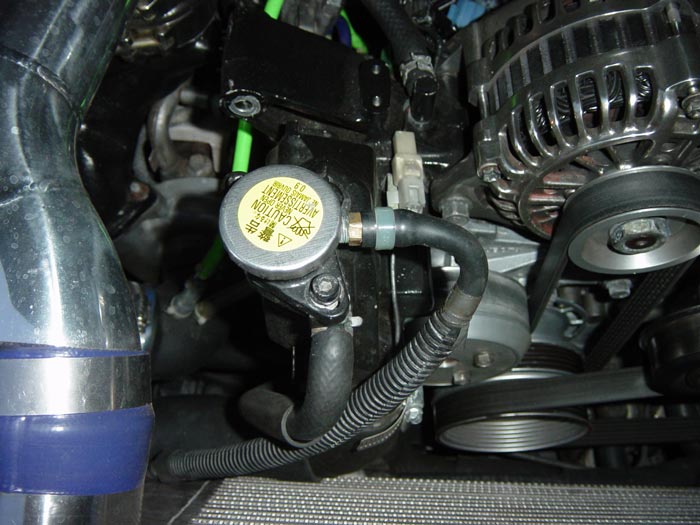

But I was asked where to tap the filler neck for the nipple and pics were requested.

So if i post it, next time someone askes I can link them here.



Here ya go Marc.



Run the line form the overflow to the new nipple and then the one from the front nipple is small radiator hose. Get a 13 psi cap, and toss the stock one.

Thats all. Make sure to run the threads out good with a tap after drilling the hole. Make sure you do not drill in the filer neck with it still on the car

We wouldn't want metal shavings in the coolant system. And use RTV when tightening the nipple in so that it seals really good. Let it dry for maybe 30 min before adding coolant. Enjoy.

Fd3BOOST

one more for good measure.

9BASE3

When did you do that Dave?

Fd3BOOST

Uhmm the day rikki sold hid car he and I did it.

It was a few months ago.

papasmurf

where do the two tubes go to? is one blocked off?

9BASE3

Hrm... Musta missed the memo LOL.. Looks good.

Fd3BOOST

THe front one goews to the radiator the one on the side goes to the overflow tank.

papasmurf

damm i gotta redo mine, cuz the "shop" who did it for me just blocked off that front line with a bolt and clamp and one to where the other fitting was from the ast... this seems bad..



ill run that front radiator line to the other end that was capped off then

rxrotary2_7

just curious as to why not just use a 2nd gen part instead of all that *trouble* (if you wnat to call it that) nipple is already there...

Fd3BOOST

Or you can do that. I had a nipple available and it is was easier for me to drill a hole and runa tap through it then to order the part and waiy for it.
